BRAKE LIGHTS - WIRING DIAGRAM

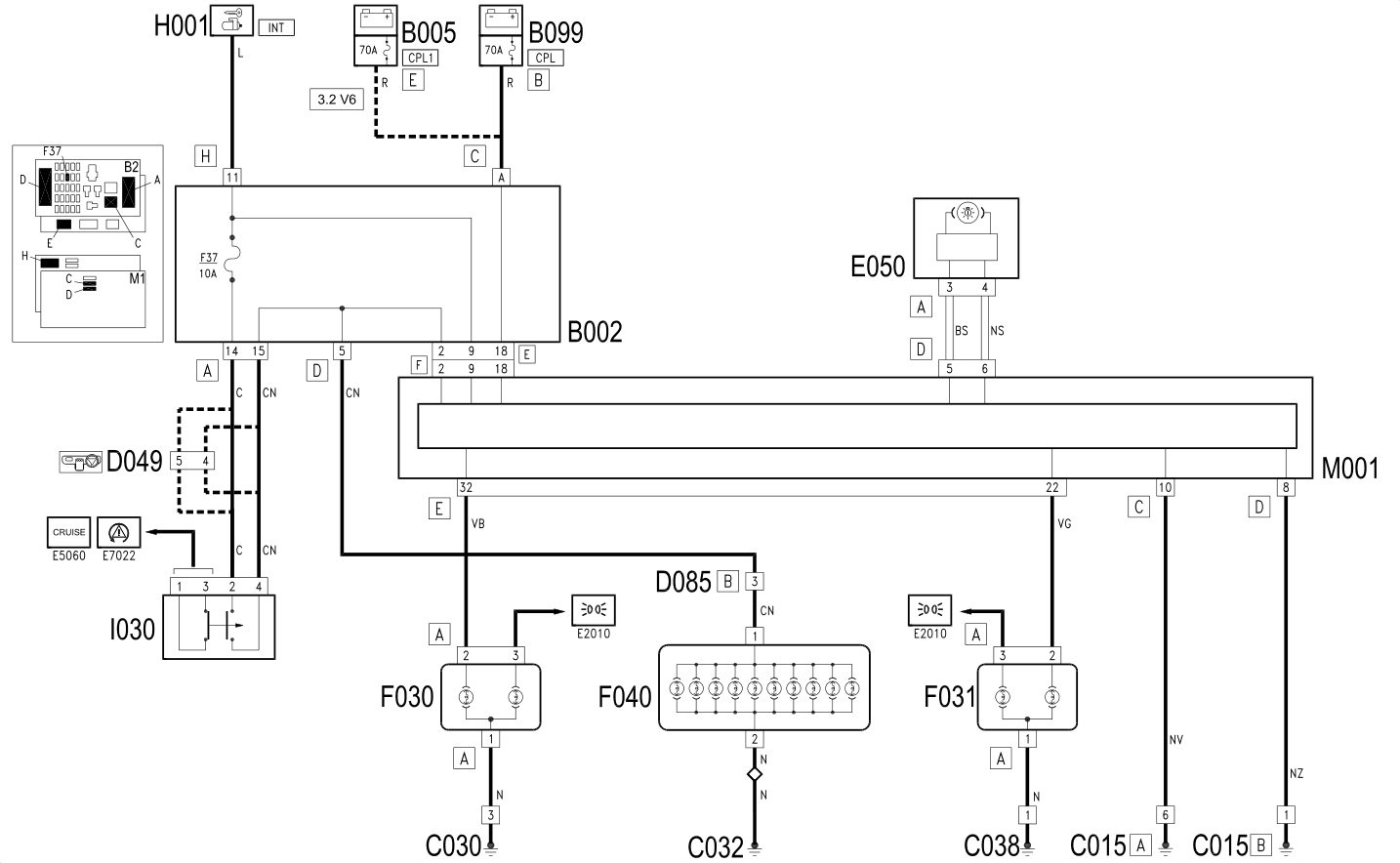

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C30	LEFT REAR EARTH ( REAR )
C32	REARSCREEN EARTH
C38	EARTH ON TUNNEL
D85	TAILGATE REAR SEAL/
D85	Tailgate rear coupling
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
F30	REAR LIGHTS CLUSTER LEFT (FIXED PART)	Op. 5540A LIGHTING
F31	RIGHT. REAR LIGHT CLUSTER (FIXED PART)	Op. 5540A LIGHTING
F40	ADDITIONAL TAIL-LIGHT (''THIRD BRAKE LIGHT'')	Op. 5550D BRAKE AND REVERSING LIGHTS
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
I30	BRAKE PEDAL SWITCH ( FRONT )	Op. 5550D BRAKE AND REVERSING LIGHTS
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
