REVERSING LIGHTS - COMPONENT LOCATION

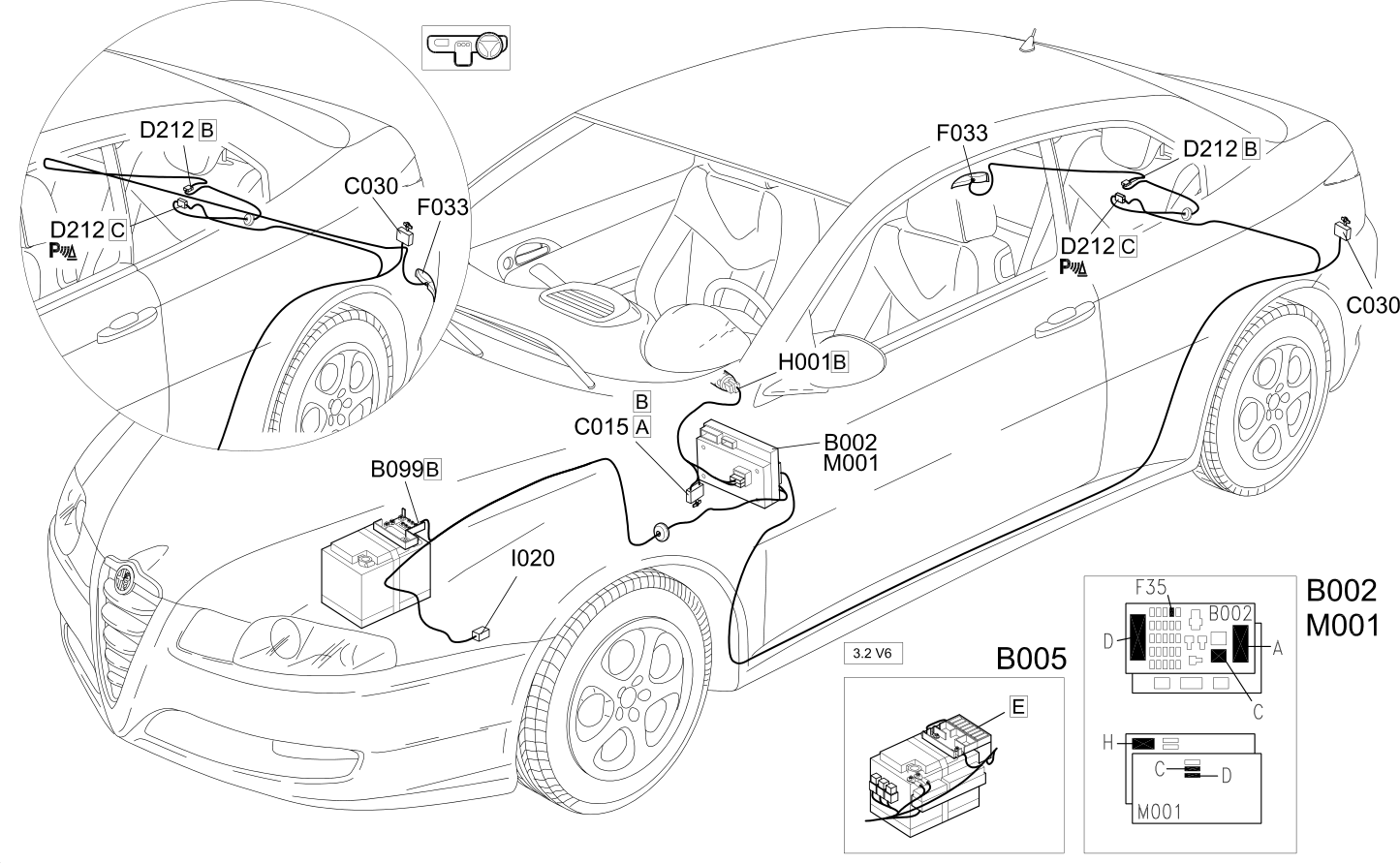

Component location

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C30	LEFT REAR EARTH ( REAR )
D212	BUMPER REAR COUPLING
D212	BUMPER REAR COUPLING
F33	REVERSING REAR LIGHT	Op. 5550D BRAKE AND REVERSING LIGHTS
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H5	STEERING COLUMN SWITCH UNIT	Op. 5550A STALK UNIT
I20	REVERSING LIGHTS SWITCH	Op. 5550D BRAKE AND REVERSING LIGHTS
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
