Complete hydraulic system

COMPLETE HYDRAULIC SYSTEM

Removing / Refitting

• Remove the left-hand seat (see specific paragraph).
• Remove the boot lid (see specific paragraph).
• Remove the protections in the boot.

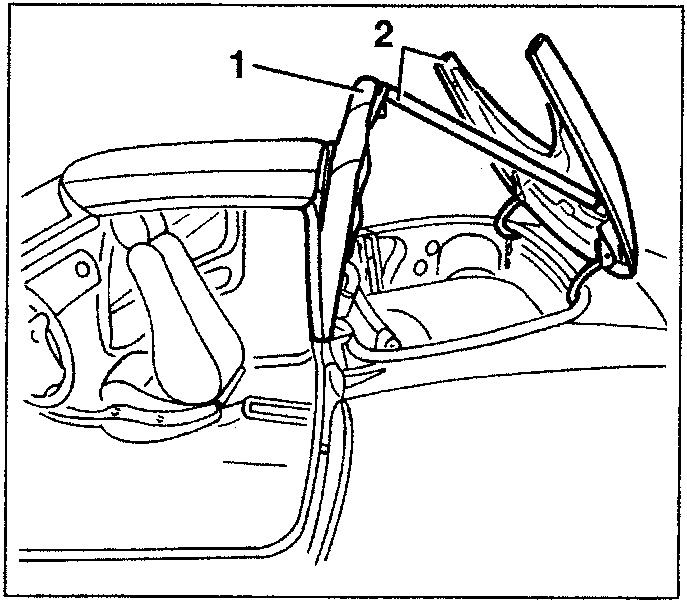

1. With the hood in the closed position release the front and rear hooks and raise the hood at the rear.
2. Open the hood cover and firmly support the hood and cover as illustrated.

• Disconnect the battery

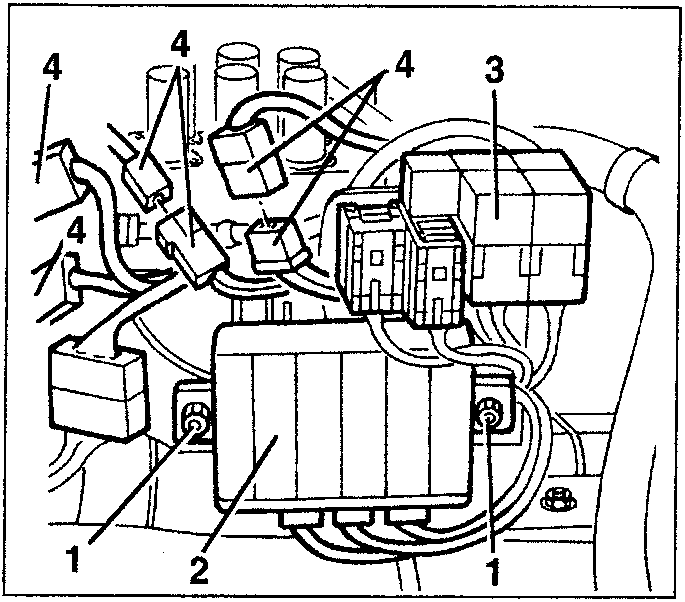

1. Move aside the wiring and slacken the two nuts.
2. Remove the electronic control unit, without disconnecting it.
3. Release the relays from the bracket, without disconnecting them.
4. Disconnect the two connectors.

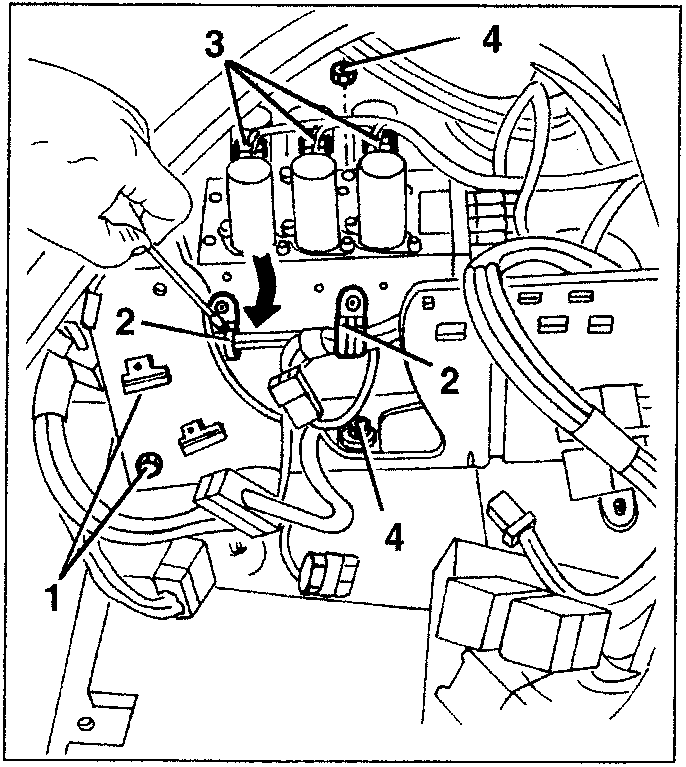

1. Slacken the nut and retrieve the bracket.
2. Working on the upper end open the special clamps and release the wiring.

• Free the wiring and hydraulic pipes from all the other clamps and protections.

1. Disconnect the six electrical connections on the solenoid valves.
2. Slacken the two nuts fastening the electrohydraulic unit.
