HOOD INTERMEDIATE POSITION SWITCH Replacement

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Automatically-operated hood › HOOD INTERMEDIATE POSITION SWITCH Replacement

70 BodyworkHOOD INTERMEDIATE POSITION SWITCH Replacement

HOOD INTERMEDIATE POSITION SWITCH Replacement

• Raise the 5° arc.
• Disconnect the battery.

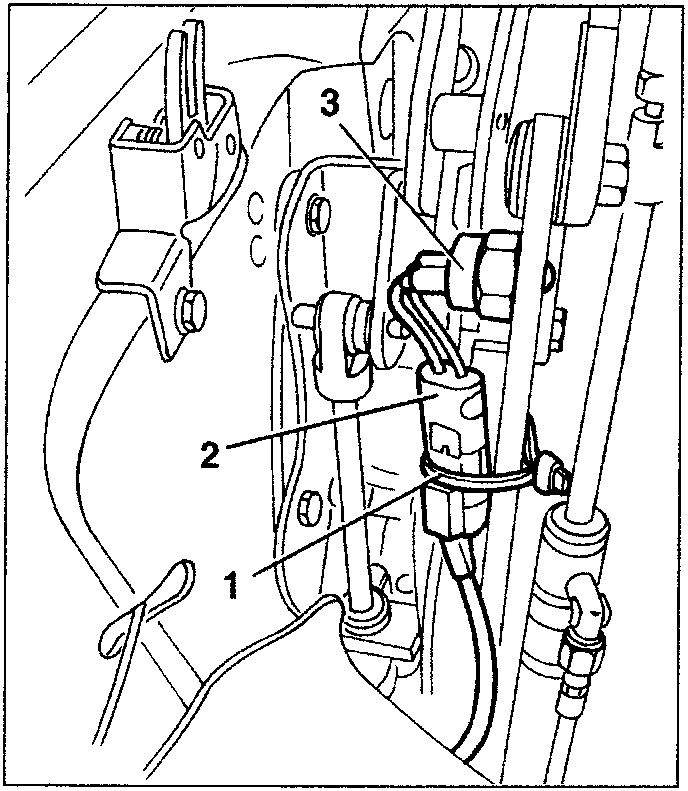

1. Cut the strap.
2. Disconnect the electrical connection.
3. Slacken and remove the switch from the bracket on the hood mechanism.

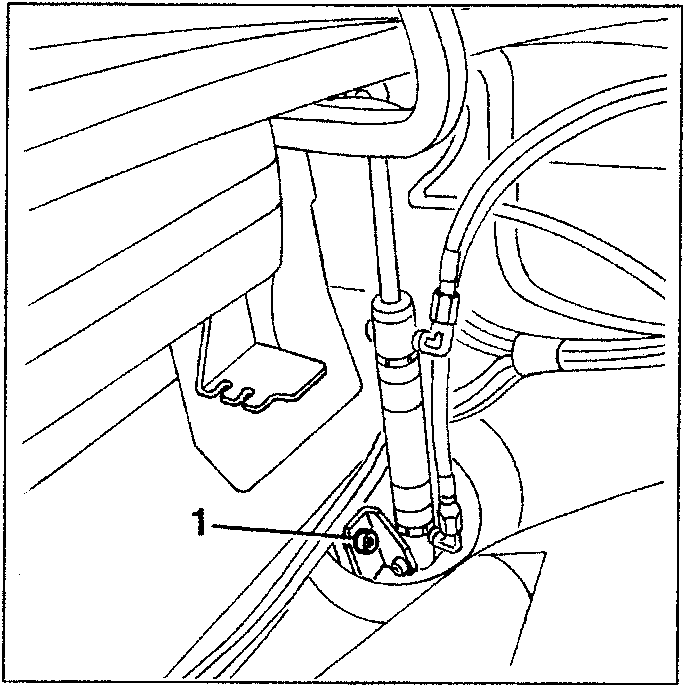

1. Slacken the two screws.

HOOD COMPARTMENT COVER HYDRAULIC CYLINDER Removing / Refitting

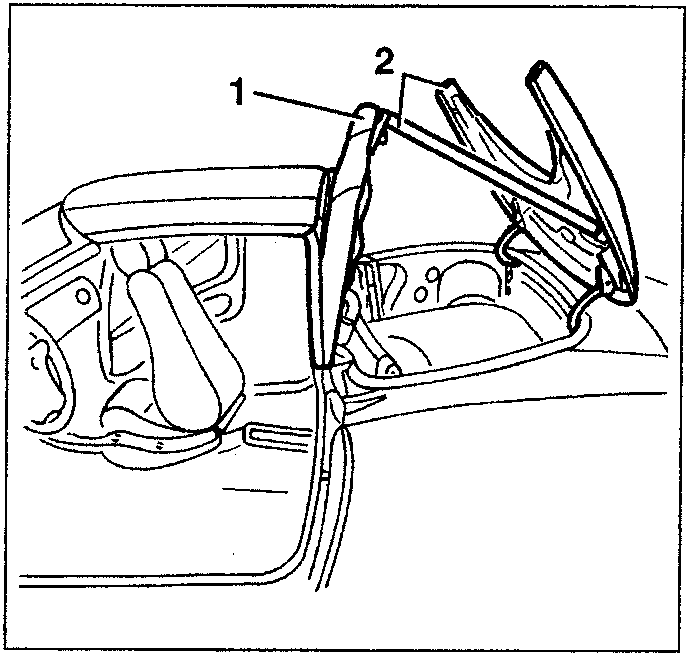

1. With the hood in the closed position release the front and rear hooks and raise the hood at the rear.
2. Open the hood cover and firmly support the hood and hood cover as illustrated.

• Disconnect the battery.
