Numbering of solenoid valves

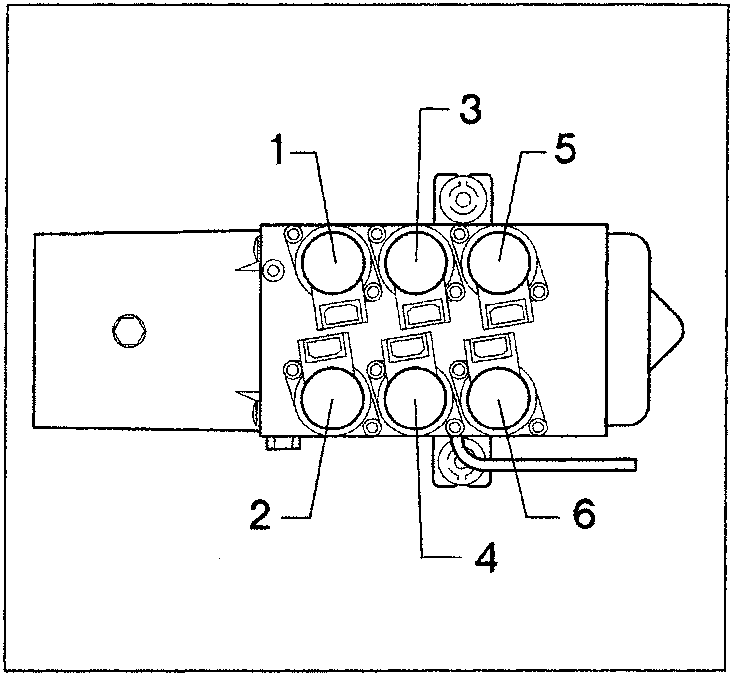

Numbering of solenoid valves

no.1 = hood cover opening
no.2 = hood cover closing
no.3 = hood opening
no.4 = hood closing
no.5 = 5th arc lowering
no.6 = 5th arc raising

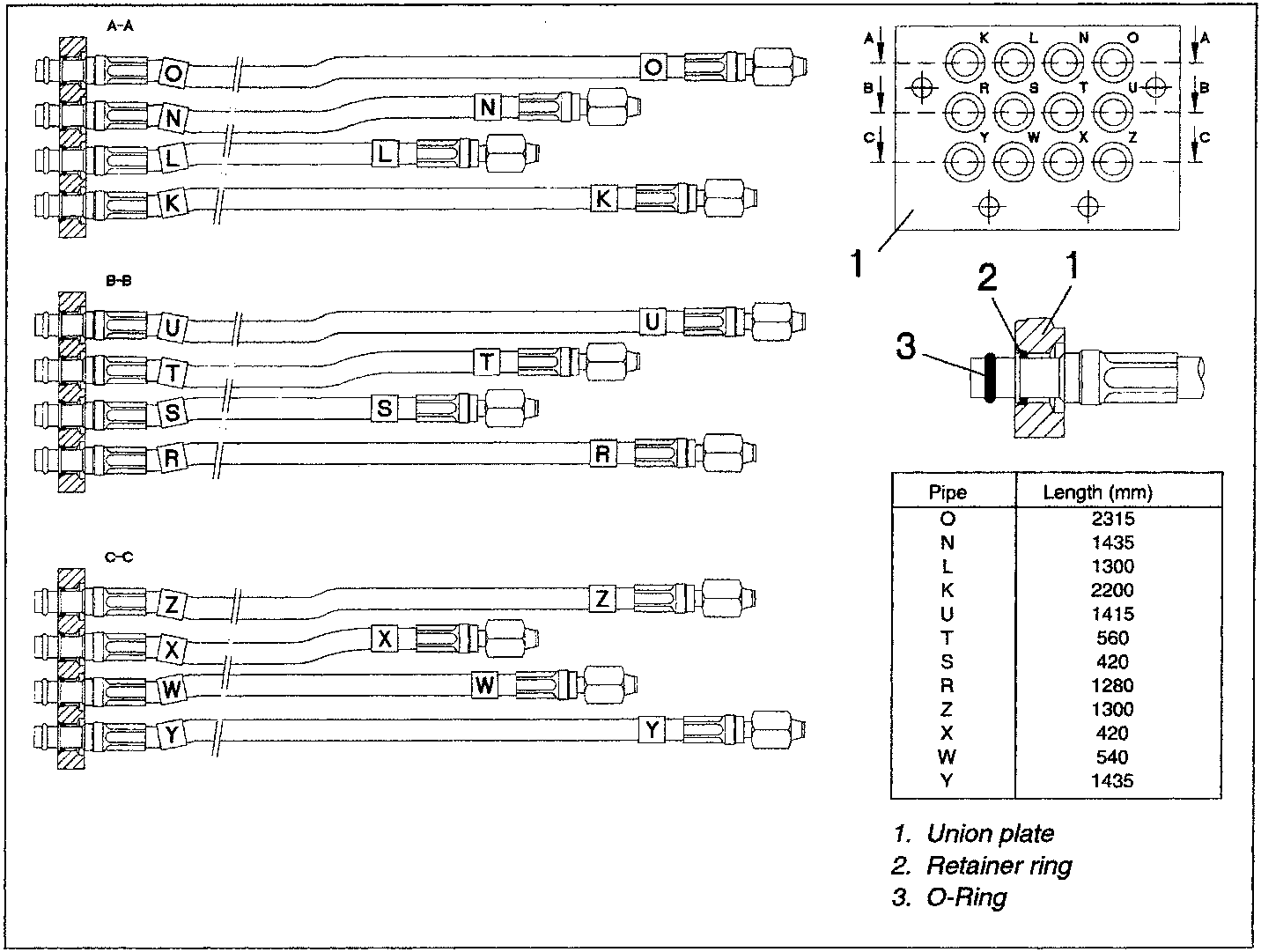

Pipes

The hydraulic system is completed by a set of 12 pipes which connect the two hydraulic fittings on each cylinder with the union plate on the electrohydraulic unit. Each pipe is identified by a different letter and by a specific length (see following table). When replacing the pipes it is absolutely necessary to observe the reference letters marked on both the pipe fittings and on the union plate of the electrohydraulic unit.

1. Union plate
2. Retainer ring
3. O-Ring
