Hood cover clamping locks

HOOD COVER CLAMPING LOCKS

Removing / Refitting

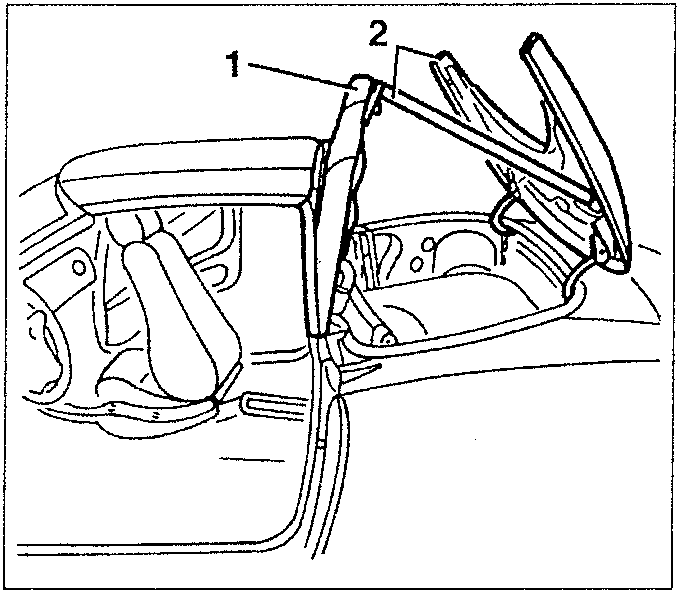

1. With the hood in the closed position release the front and rear hooks and raise the hood at the rear.
2. Open the hood cover and firmly support the hood and hood cover as illustrated.

– Disconnect the battery.

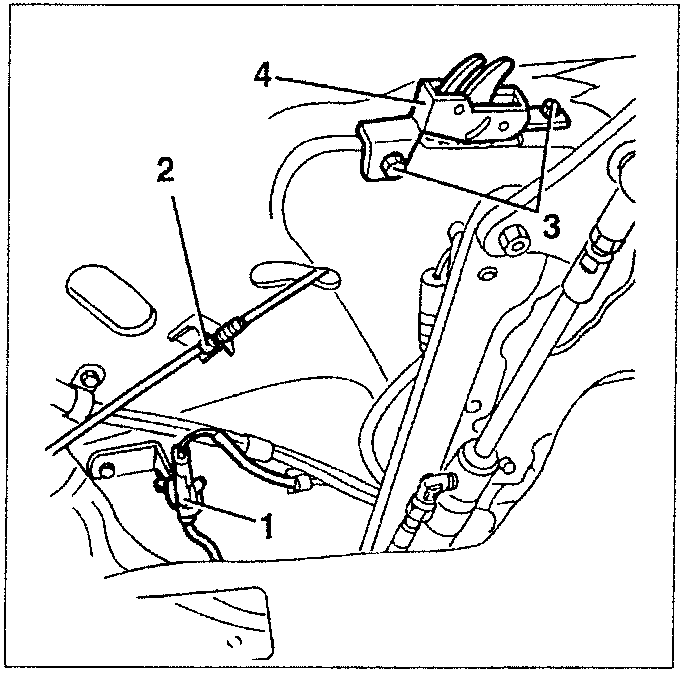

1. Disconnect the electrical connection.
2. Remove the sheath from the bracket.
3. Slacken the two screws.
4. Raise the lock.

– Incline the lock backwards.

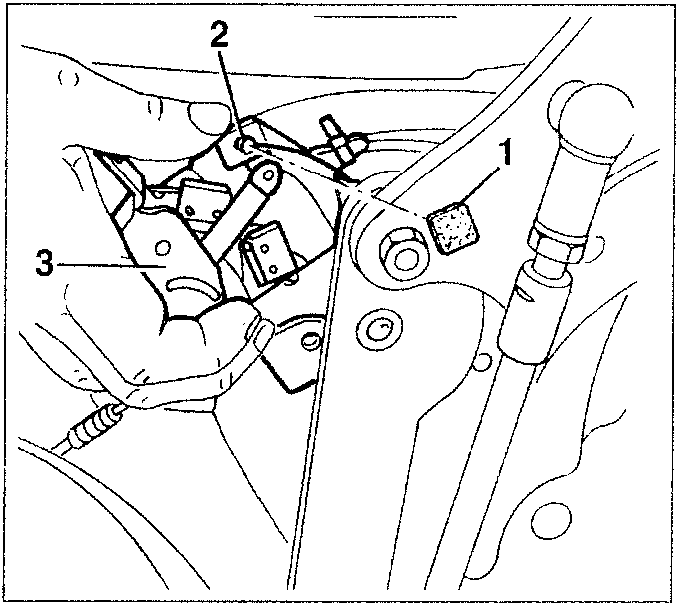

1. Remove the adhesive felt
2. Free the cable from the operating lever and retrieve the washer.
3. Retrieve the lock.

If necessary, replace the operating cable proceeding as follows:

– Remove the protection in the rear boot.

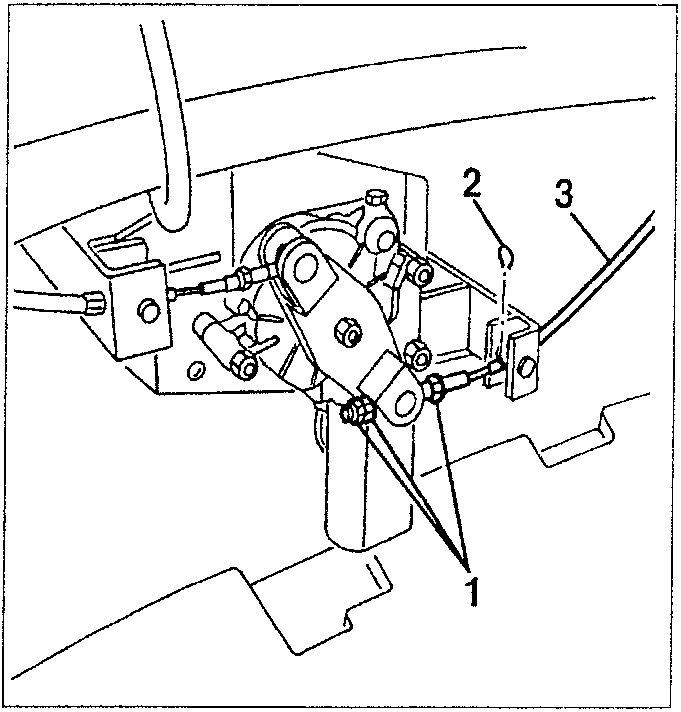

1. Slacken the three nuts that restrain the cable to the lever of the operating device.
2. Remove the seeger ring.
3. Withdraw and retrieve the cable and sheath.
