70 BodyworkPump

Pump

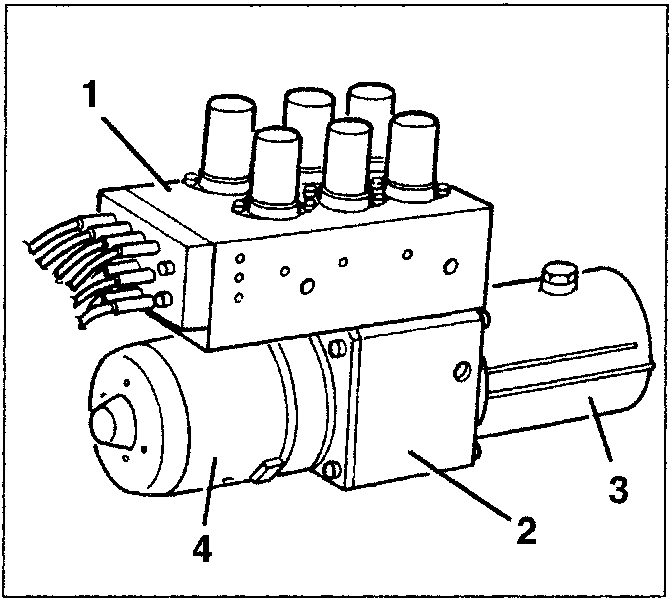

The pump is radial with rotary pistons, assembled in a single block with an electric motor and a special reservoir - accumulator for the hydraulic fluid.

Pump assembly diagram showing solenoid valves, pump, reservoir-accumulator, and electric motor.
  1. set of solenoid valves
  2. pump
  3. reservoir - accumulator
  4. electric motor

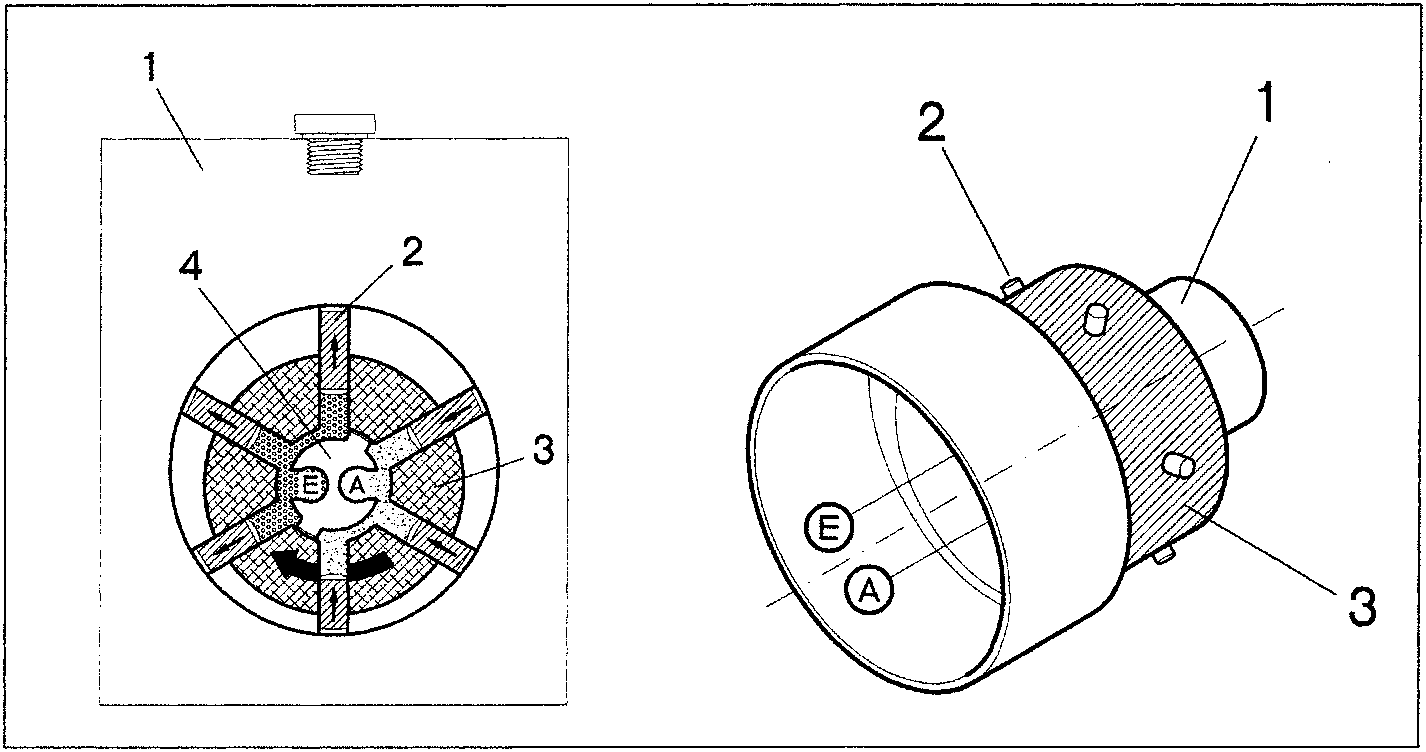

On the pump casing (1) there is the stator (4) fitted with an eccentric chamber inside which the rotor (3) turns, changing the volume occupied by the working fluid: from the inlet hole (E) the pistons (2) - pushed outwards by the centrifugal force - make the fluid flow inside the pump; from the opposite side the pistons (2) push the fluid inwards which at high pressure goes out of the delivery hole (A).

Cross-sectional view of pump showing stator, rotor, pistons, inlet hole E, and delivery hole A.
