Hydraulic connections
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Automatically-operated hood › Hydraulic connections

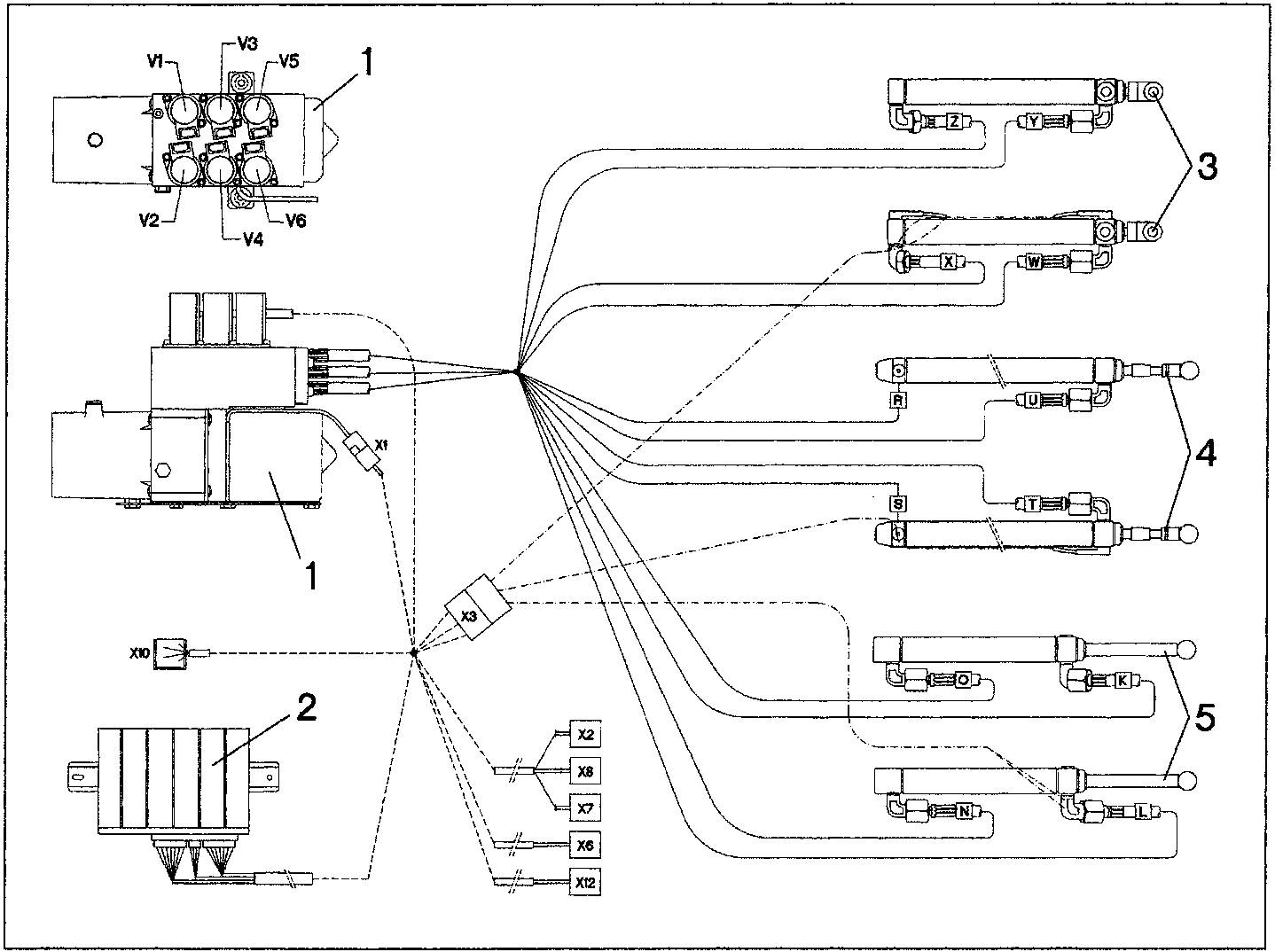

70 BodyworkHydraulic connections
- Electrohydraulic unit
- Electronic control unit
- Main cylinders
- 5th arc cylinders
- Hood cover cylinders
Hydraulic connections
| Pipes | Solenoid valve | Action |
|---|---|---|
| K | V2 | Lowering right hood cover cylinder |
| L | V2 | Lowering left hood cover cylinder |
| N | V1 | Raising left hood cover cylinder |
| O | V1 | Raising right hood cover cylinder |
| R | V6 | Raising left 5th arc cylinder |
| S | V6 | Raising right 5th arc cylinder |
| T | V5 | Lowering left 5th arc cylinder |
| U | V5 | Lowering right 5th arc cylinder |
| Y | V4 | Lowering right main cylinder |
| W | V4 | Lowering left main cylinder |
| X | V3 | Raising left main cylinder |
| Z | V3 | Raising right main cylinder |
