DESCRIPTION

The Spider version is available, on request, with a hard top made from resin glass which offers a good degree of protection to the vehicle (in winter) guaranteeing a perfect seal against water and air penetration. The top is fitted with a glass heated rear windscreen which can be connected to a special socket on the left side panel of the vehicle.

The top is fitted on the vehicle with the hood open (folded in its housing) and the hood cover closed and the front and rear hood mounting housings as well as two specific side hooks are used to fasten it. Depending on the type of hood (electric or manual), the top is equipped with different rear mounting pins. When the hard top is fitted, the operation of the electric hood opening and closing switch is inhibited.

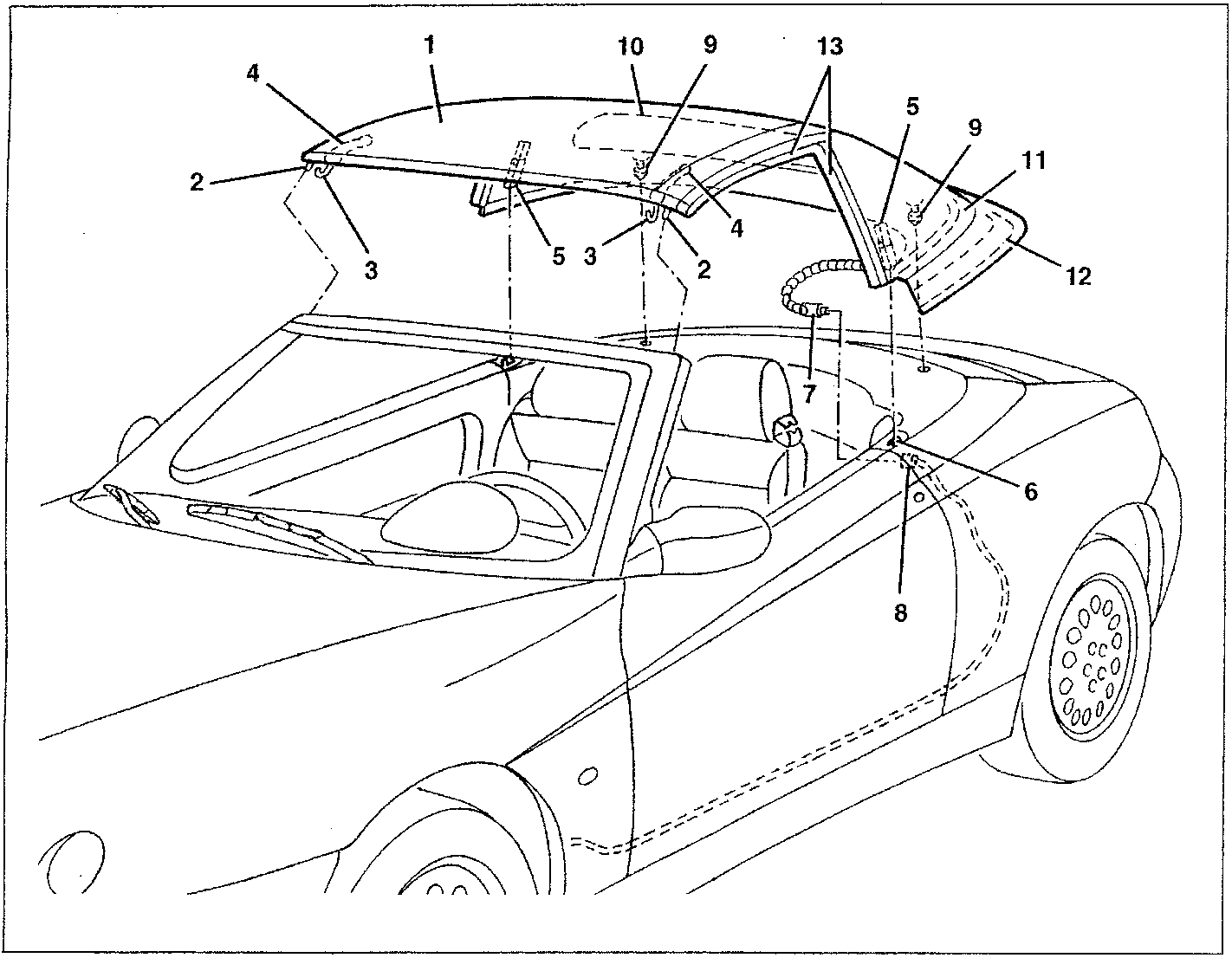

1. Hard top
2. Front centering pins
3. Front mounting hooks
4. Front fastening/release handles
5. Side fastening handles
6. Mounting for side fastening handles
7. Electrical connection (cigar lighter type) for heated rear windscreen
8. Electric socket with wiring for heated rear windscreen
9. Rear mounting pins
10. Heated rear windscreen
11. Seal
12. Anti-scratch seal
13. Seal on door windows
