70 BodyworkRefitting

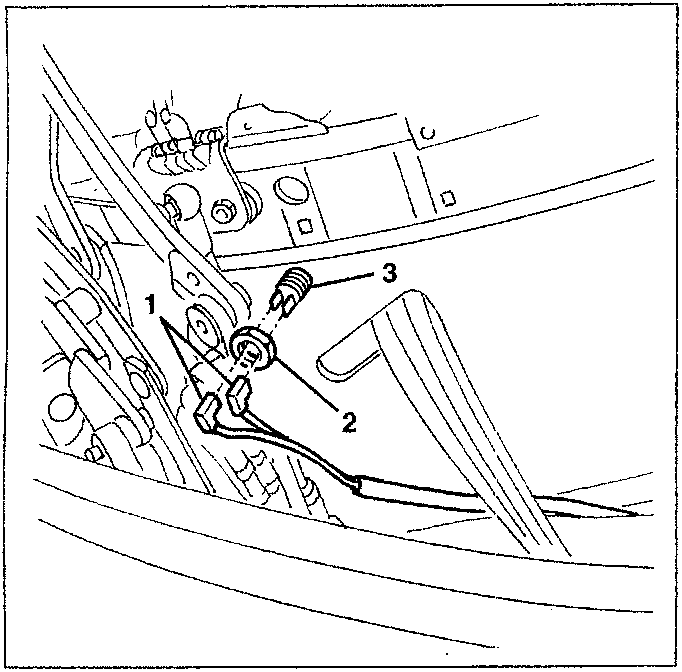

  1. Working on the left side of the hood housing, disconnect the electrical connections for the socket for the heated rear windscreen.
  2. Undo the nut.
  3. Remove the current socket for the heated rear windscreen.
Diagram showing components 1, 2 and 3 near hood housing

REFITTING

Proceed with refitting the current socket for the heated rear windscreen, reversing the order of the operations carried out for the removal.

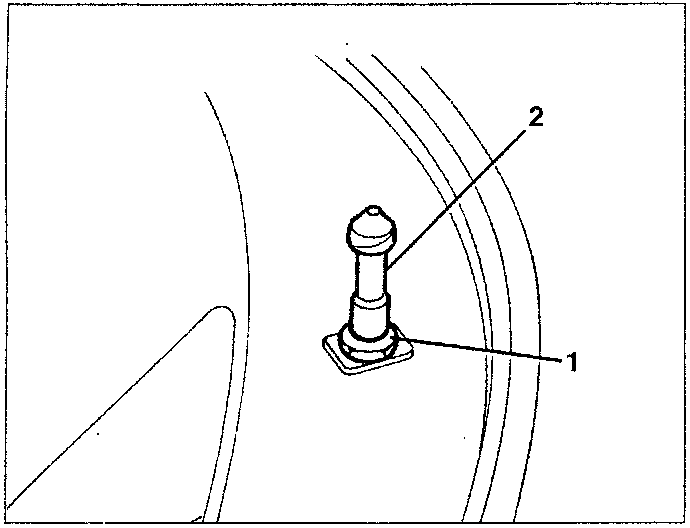

HARD TOP REAR PINS

REMOVING

  • Remove the hard top (See specific paragraph).
  1. Loosen the lock nut.
  2. Undo the hard top rear pin.
Diagram showing part 1 and part 2 of a hard top rear pin

REFITTING

Proceed with refitting the rear pin, reversing the order of the operations carried out for the removal.

If the hard top rear pins need adjusting, refer to the instructions in the procedure for refitting the hard top (See specific paragraph).

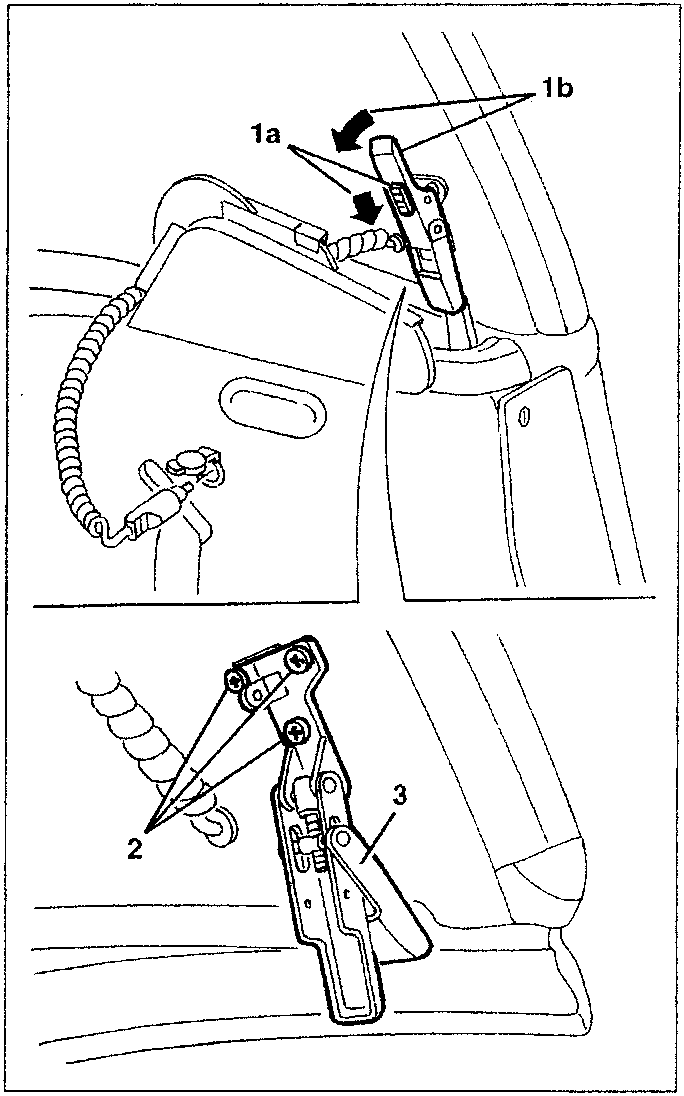

HARD TOP SIDE FASTENING HANDLE

REMOVING

  1. Move the safety device (1a) in the direction of the arrow and release the handle (1b).
  2. Undo the bolts
  3. Remove the handle.
Diagram showing components 1a, 1b, 2 and 3 for hard top side fastening handle
