70 BodyworkRemoving

REMOVING

  • Open the doors.

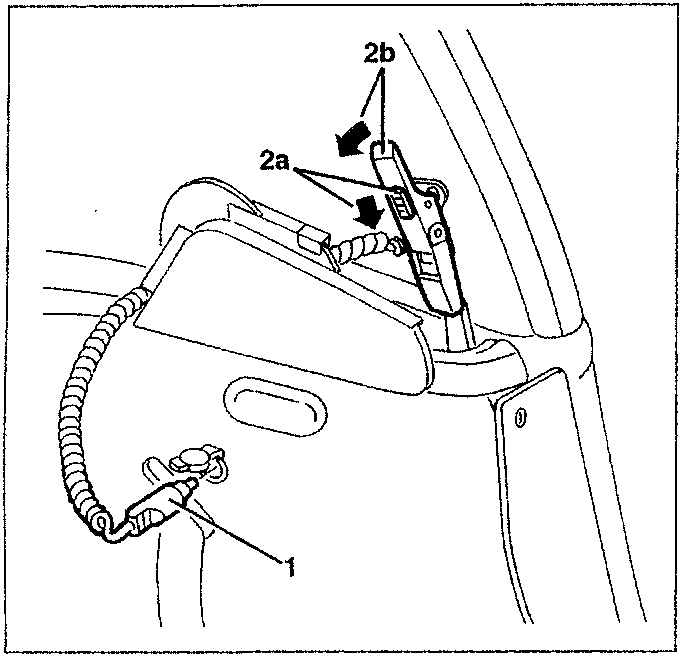

  1. Disconnect the electrical connection for the heated rear windscreen.
  2. Working on both sides of the vehicle, move the safety device (2a) in the direction of the arrow and release the side handle (2b).
Diagram showing front handles and hooks

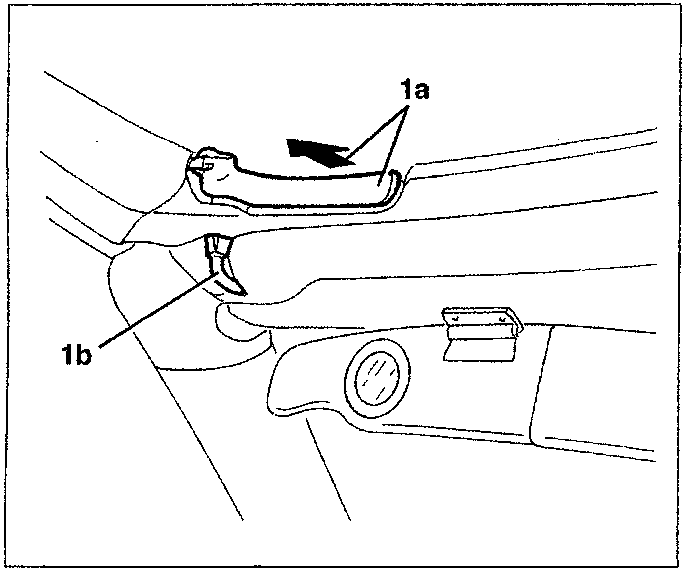

  1. Working on both sides of the vehicle, adjust the front handles (1a) and disconnect the hooks (1b).
Diagram showing rear pins and button

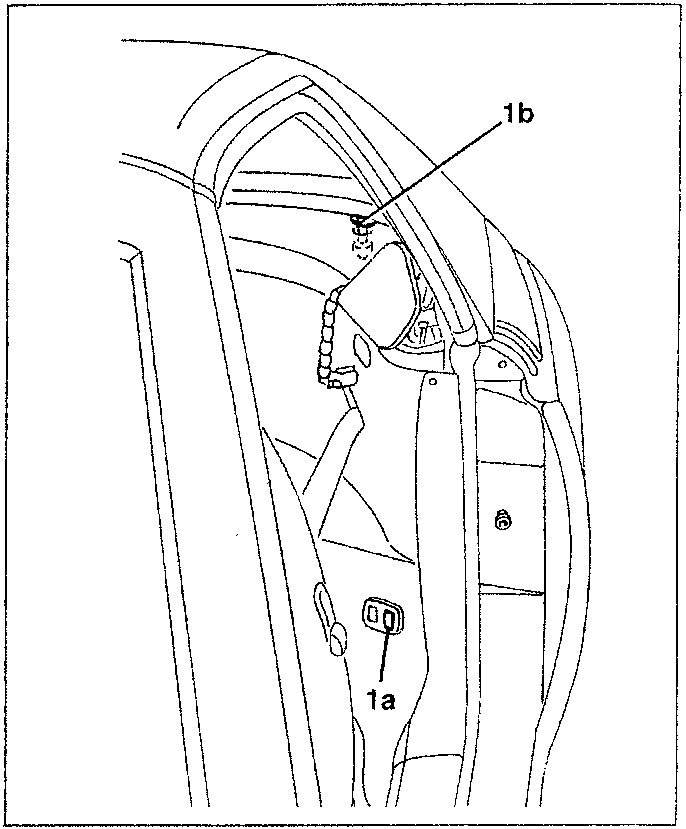

  1. Release the rear pins (1b) using the button (1a).
Diagram showing hard top removal

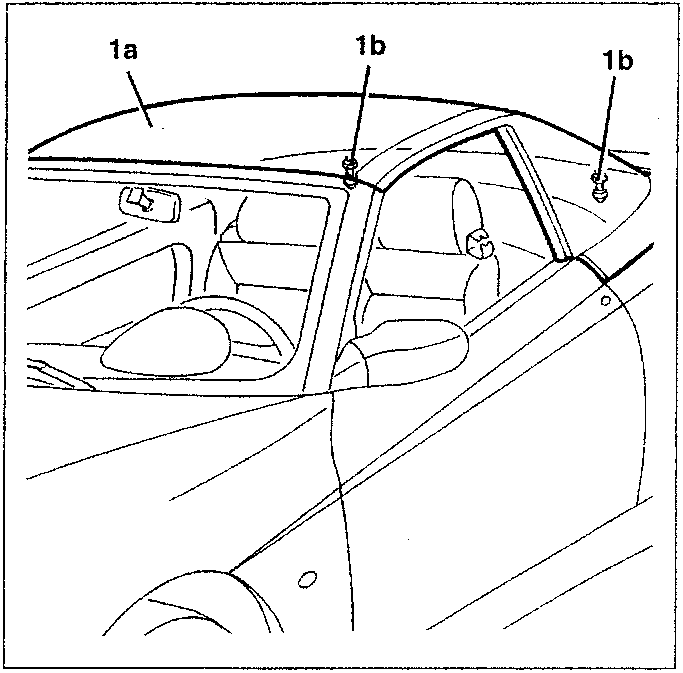

  1. With the assistance of a second operator, remove the hard top (1a).

WARNING Raise the hard top, starting from the rear and moving it away from the bodywork immediately to prevent the pins (1b) from scratching it.

Diagram showing hard top raised
