Refitting

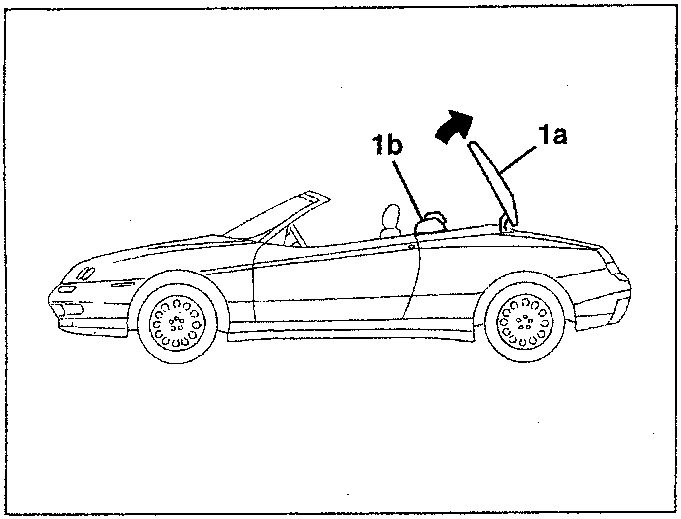

1. Open the hood cover (1a) until the side covers (1b) can be closed, then close the hood cover.

1. 1a
2. 1b

REFITTING

Proceed with refitting the hard top, reversing the order of the operations carried out for the removal.

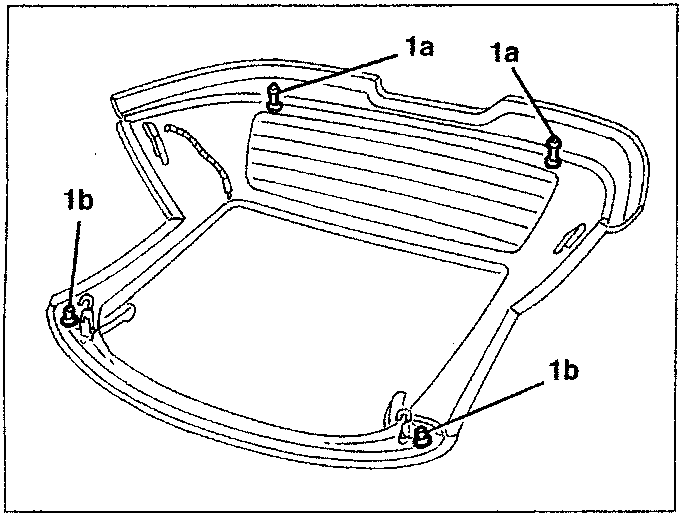

1. If there are fitting difficulties as a result of the incorrect adjustment of the rear retaining pins (1a) or the front centering pins (1b), proceed as described below.

1. 1a
2. 1b

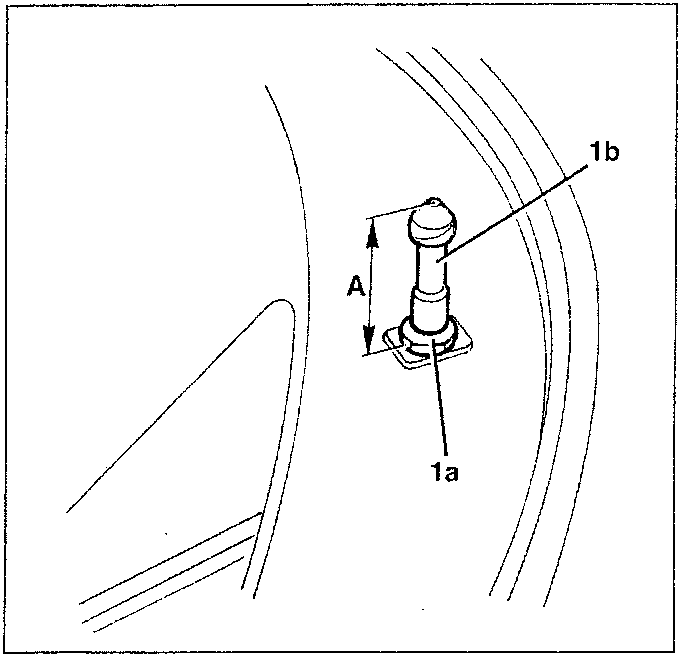

1. Loosen the lock nuts (1a) for the two rear retaining pins (1b) and adjustment them to height A. A=55mm for manually operated hood. A=70mm for automatically operated hood. Tighten the lock nuts slightly, but not fully.

1. 1a
2. 1b

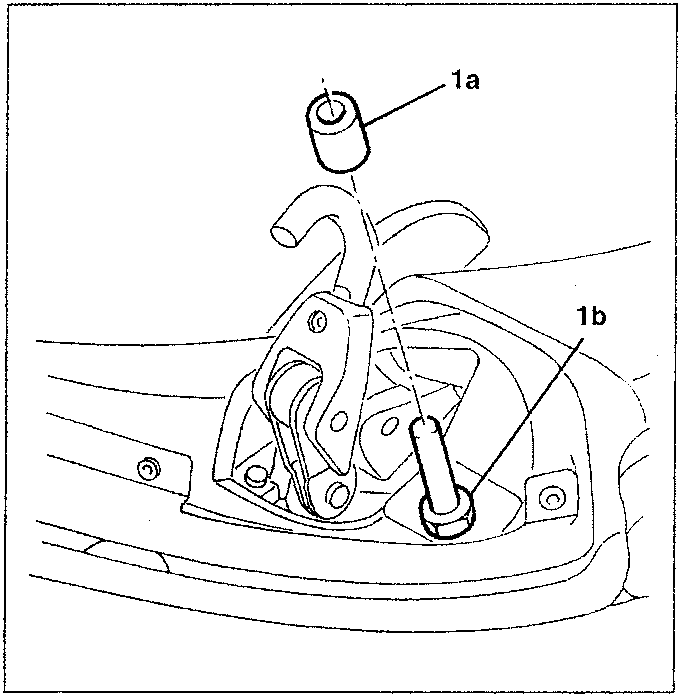

1. Remove the rubber seal (1a) for the two front centering pins and loosen them acting on the nuts (1b).

1. 1a
2. 1b
1. Open the hook cover (1a) until the side covers (1b) can be opened, then close the hood cover (1a) keeping the side covers (1b) open.
