Refitting (page 3 of 3)

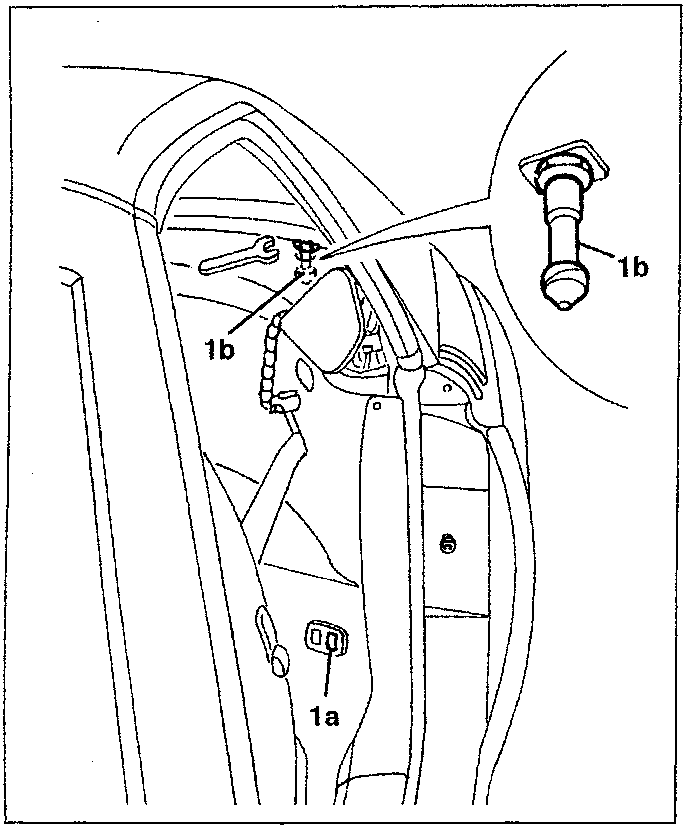

(Version with manual hood) Press on the hard top until the two pins (1b) are attached.

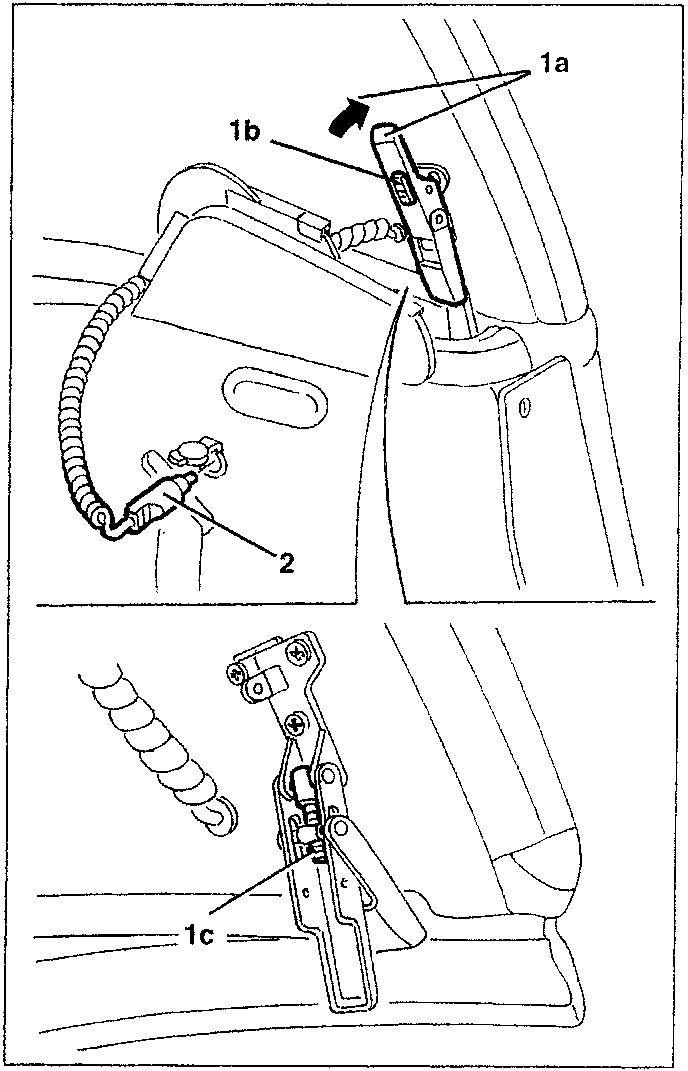

1. Fasten the two side handles (1a) and close them fastening the safety retainer (1b). If necessary, adjust the side handles acting on the internal adjustment screw (1c).
2. Connect the electrical connection for the heated rear windscreen.

1. Completely close (raise) the door windows and check that they are correctly aligned with the door housing seals.
2. Check that the end (2a) of the seal in the housing (2b).
3. If necessary, proceed with the adjustment of the seals which are vertical to the door window, making use of the slotted openings in the fixing bolts.
4. If the door window interferes slightly with the rigid profile of the top, proceed as described below.
