Hard top side mounting bracket

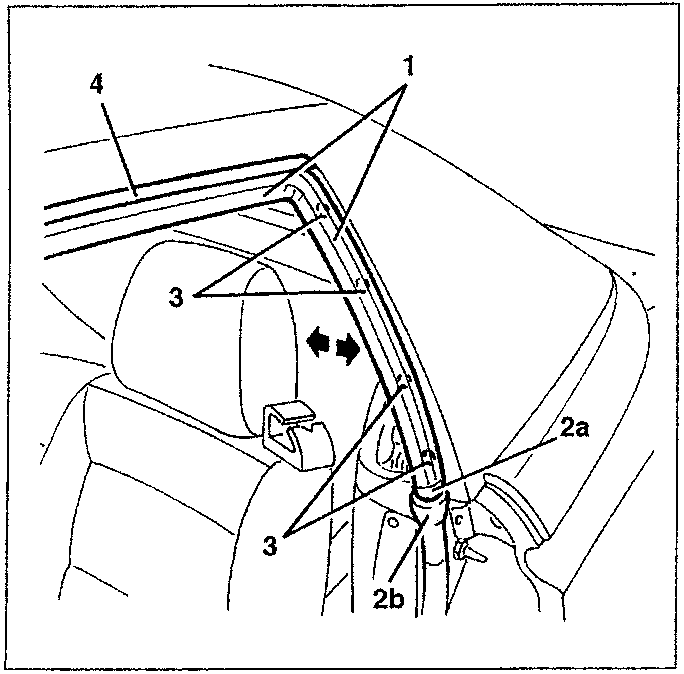

If the incorrect alignment and/or incorrect adherence of the door windows with the top and the door housing seals persists, adjust the door windows as described in the specific paragraph.

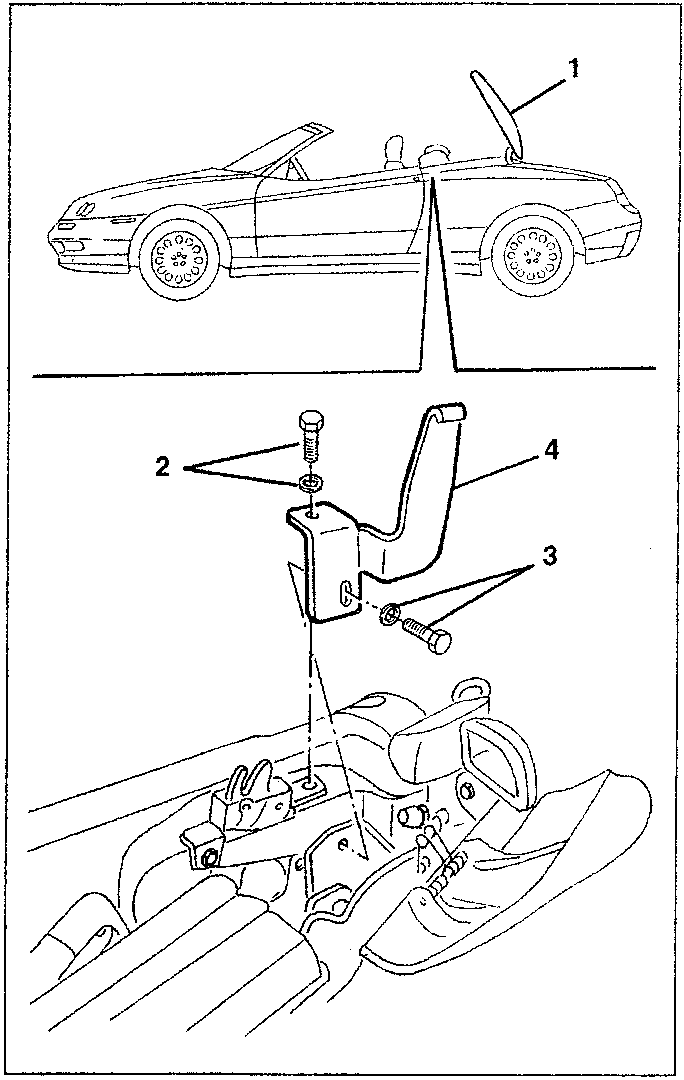

HARD TOP SIDE MOUNTING BRACKET

REMOVING

1. Open the hood, leaving the cover open.
2. Undo the cover lock front bolt.
3. Undo the lower bolt fixing the hood fastening bracket.
4. Remove the hard top side mounting bracket.

REFITTING

Proceed with refitting the hard top side mounting bracket, reversing the order of the operations carried out for the removal.

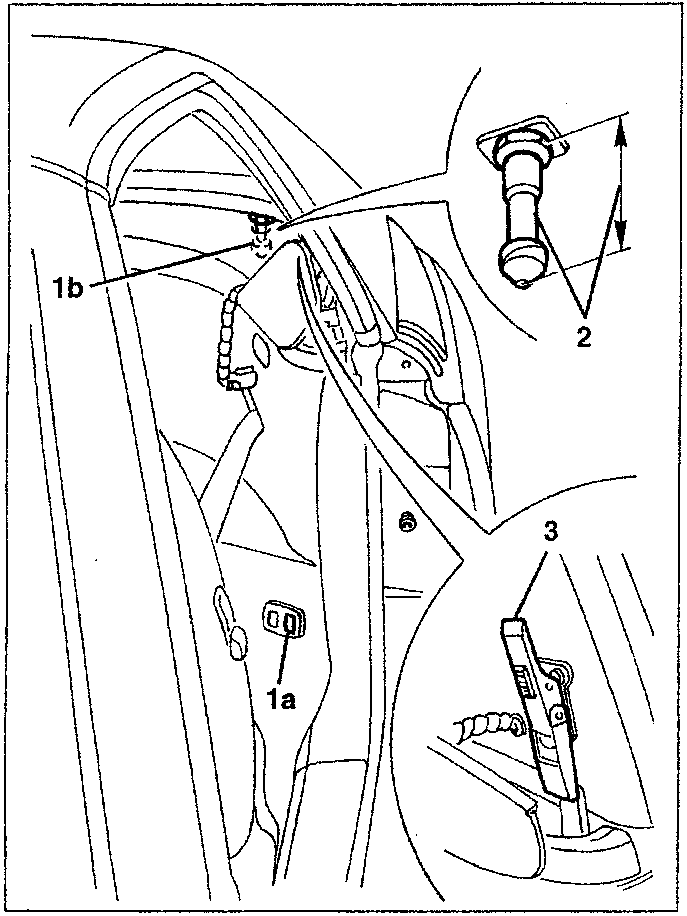

1. Release the pins (1b) using the button (1a).
2. Act on the pins, increasing their length slightly, following the instructions given previously.
3. Adjust the side handles following the instructions given previously.
