ON-VEHICLE OPERATIONS

DOOR SEALS

Removal/refitting

  • With the hood open, open the hood cover, partially close the hood removing it from its compartment.

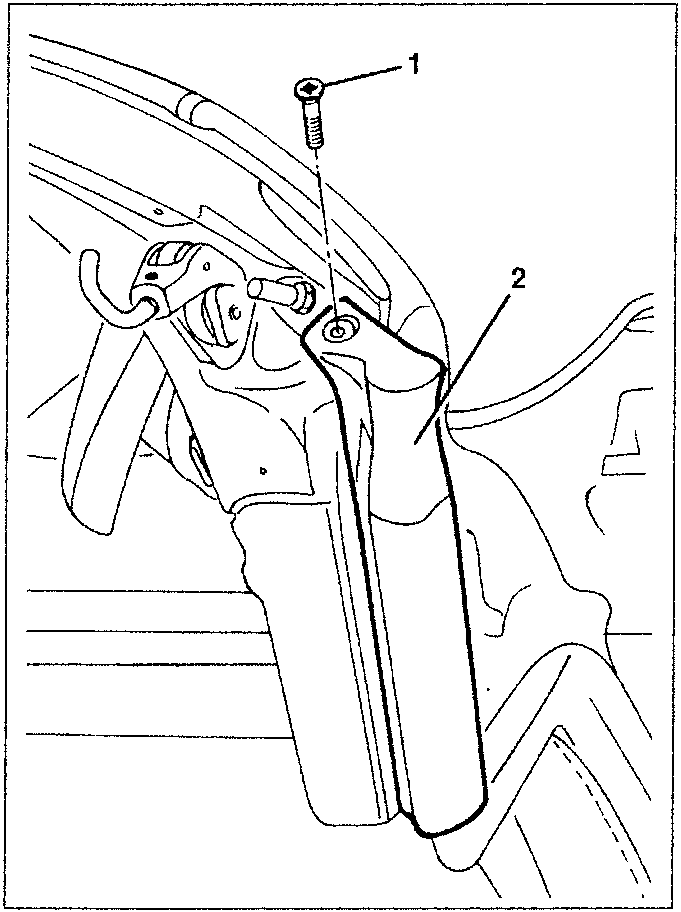

  1. Slacken the screw fastening the front of the seal to the hood frame.
  2. Prise and remove the front seal.
Diagram showing a screw (1) and a seal (2) attached to a hood frame.

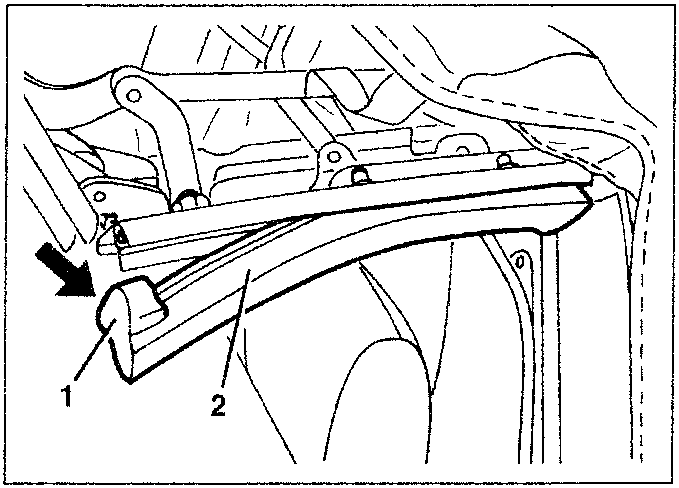

  1. Free the front edge of the centre seal.
  2. Remove the centre seal.
Diagram showing a hood latch mechanism with parts labeled 1 and 2.

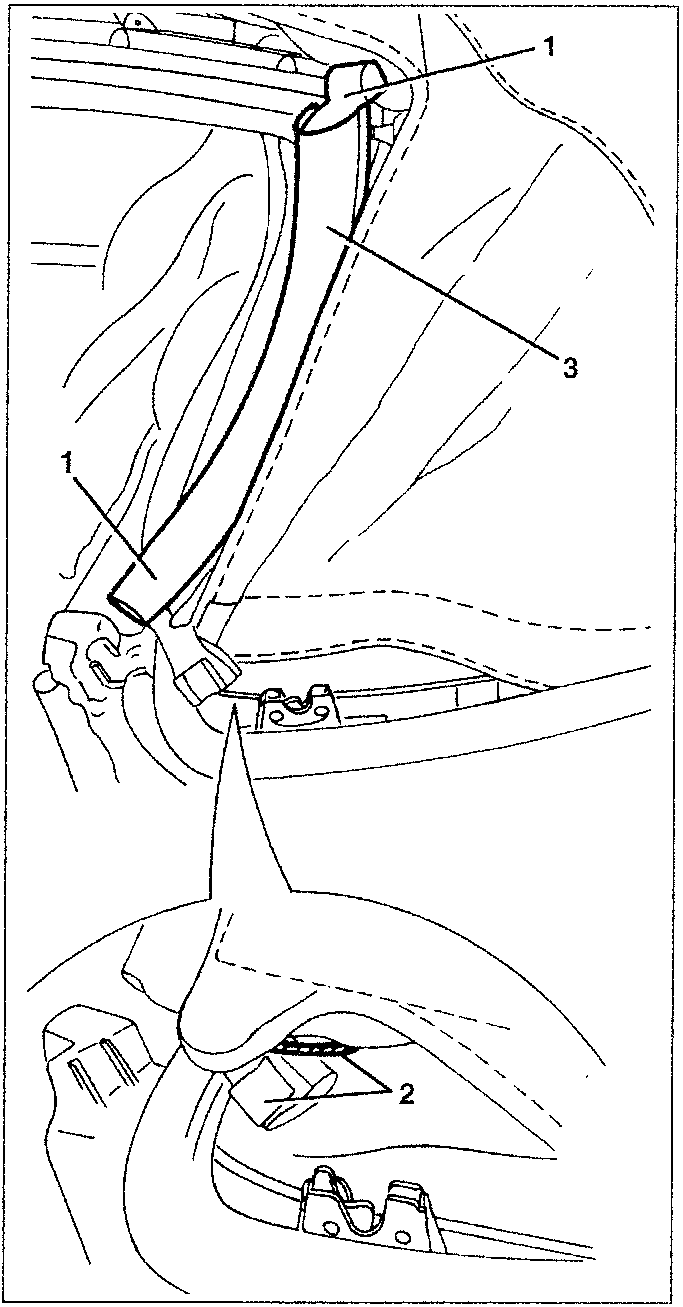

  1. Free the edges of the vertical seal.
  2. Release the lower bracket from the tensioning cable.
  3. Remove the vertical seal.
Diagram showing a hood latch mechanism with parts labeled 1 and 2.

Refit the seals reversing the sequence followed for removal. If necessary adjust the position of the grooves (see: Adjustment).
