Rearscreen

REARSCREEN

Removal/refitting

– With the hood closed, release the rear of the hood and raise it.

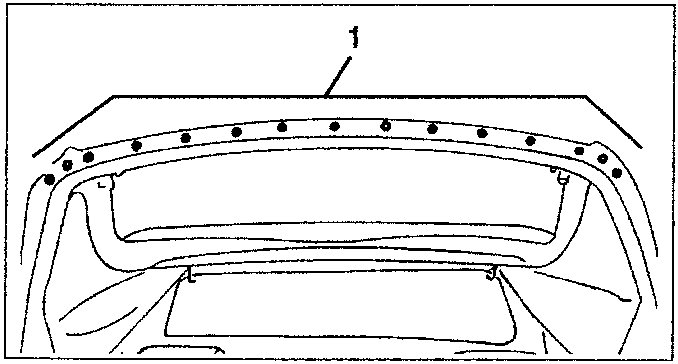

1. Slacken the set of screws fastening the rear of the rearscreen and the hood edges to the frame.

1. Raise the hood edge velcro at each side.
2. Slacken the screw fastening the lower edges of the rearscreen to the frame.

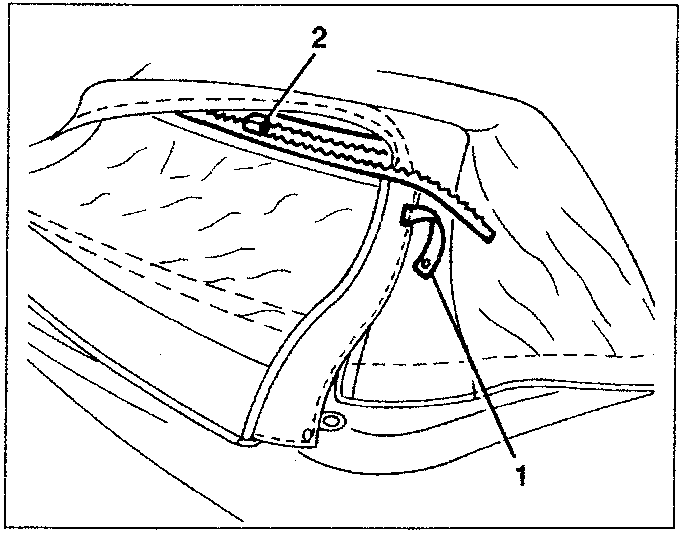

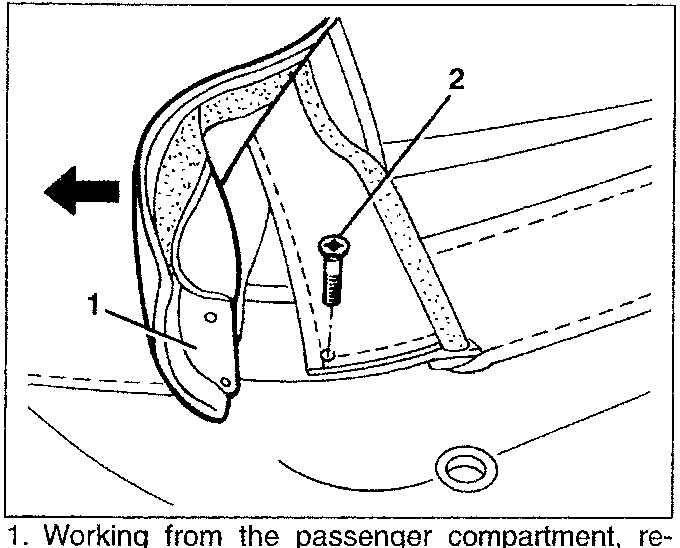

1. Working from the passenger compartment, release the two buttons.
2. Open the zip and remove the rearscreen.

FRONT HOOKS AND PINS

Removal/refitting

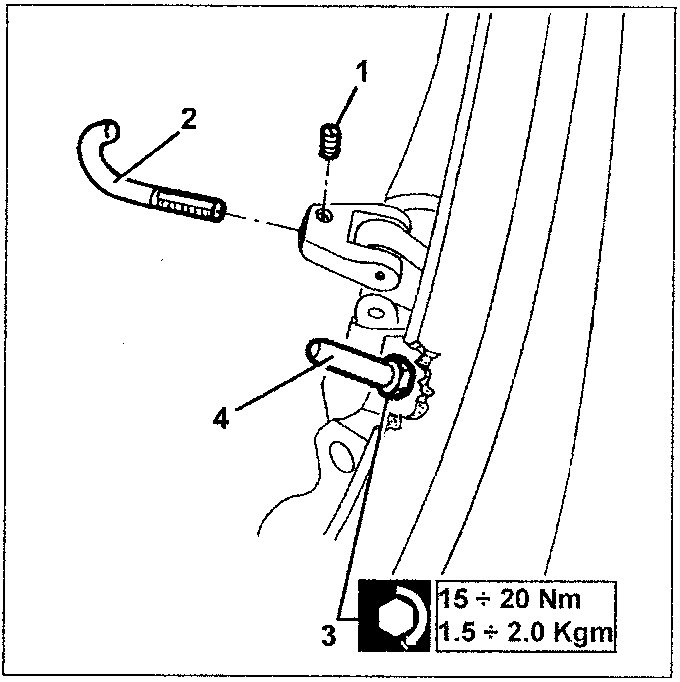

1. With the hood open, slacken the stop screw.
2. Slacken and remove the hook.
3. Loosen the locknut.
4. Slacken and remove the centering pin.

15 ÷ 20 Nm
1.5 ÷ 2.0 Kgm

When refitting the hooks and pins adjust their position (see: Adjustment).

REAR HOOKS

Removal/Refitting

– Raise the rear of the hood.

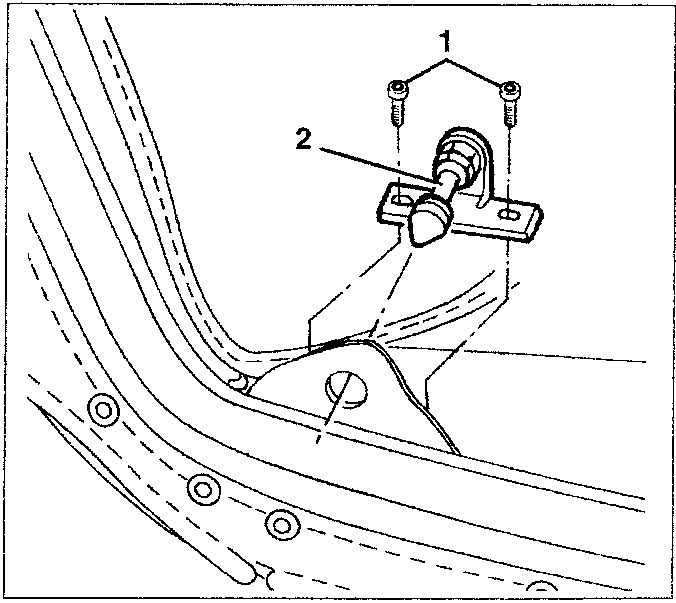

1. Slacken the two screws.
2. Remove the rear hook.

When refitting the hooks adjust their position (see: Adjustment).
