70 BodyworkOperation

OPERATION

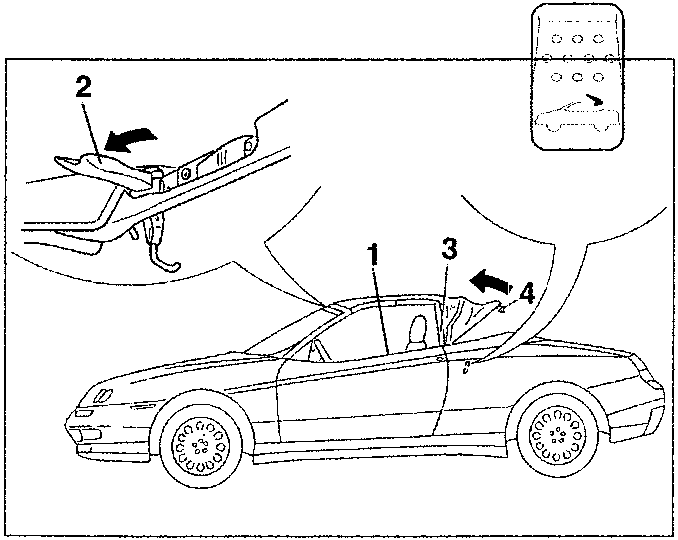

HOOD OPENING

  1. Lower the windows
  2. Release the front of the hood using the levers inside the passenger compartment.
  3. Free the pillar trim.
  4. Release the rear of the hood and raise it.
Diagram showing hood opening steps with numbered parts 1, 2, 3, 4 and a remote control icon.

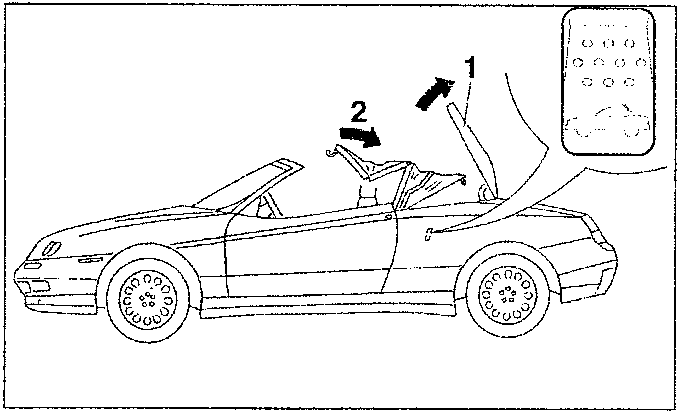

  1. Release the hood cover and open it.
  2. Open the hood and fold it inside the compartment provided.
Diagram showing hood opened and folded inside compartment with numbered parts 1, 2 and a remote control icon.

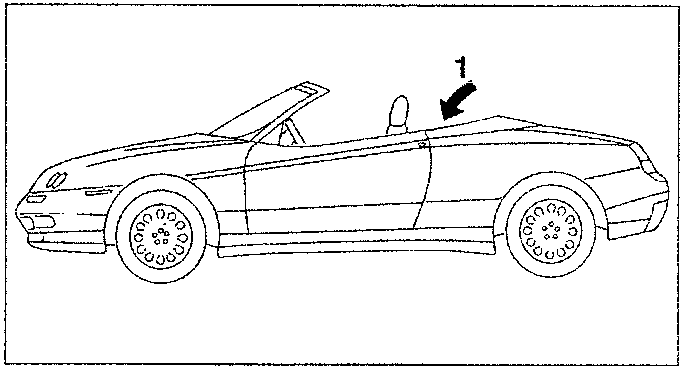

CLOSING THE HOOD.

To close the hood, reverse the sequence described for opening.

Diagram showing hood closed with numbered part 1.

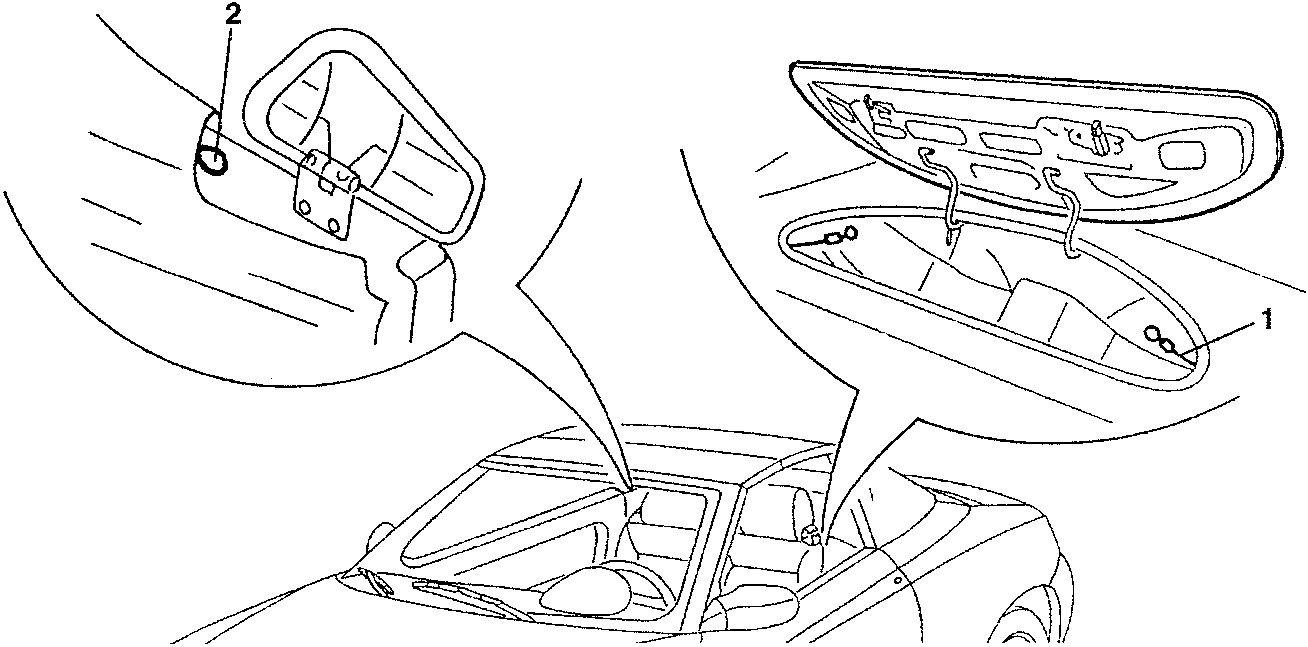

Emergency operation

To release the actuators by hand, cords have been installed in a protected position connected directly to the locking devices:

  1. Passenger compartment objects compartment. Release of hood cover opening actuators.
  2. Hood cover front edges. Release of rear hood opening actuators.
Diagram showing emergency release cords for hood cover actuators with numbered parts 1 and 2.
