Refitting

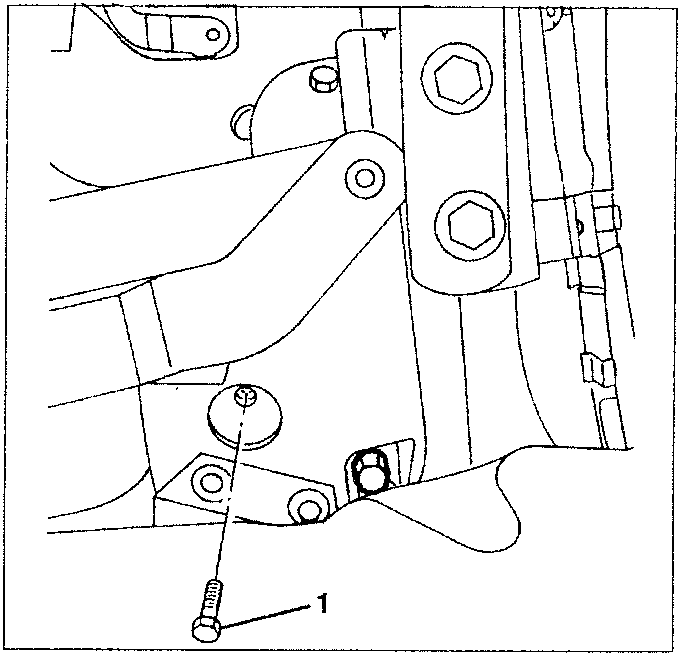

– With the help of another operator, raise the hood releasing the connection brackets from the lower screw left in its seat and remove the hood.

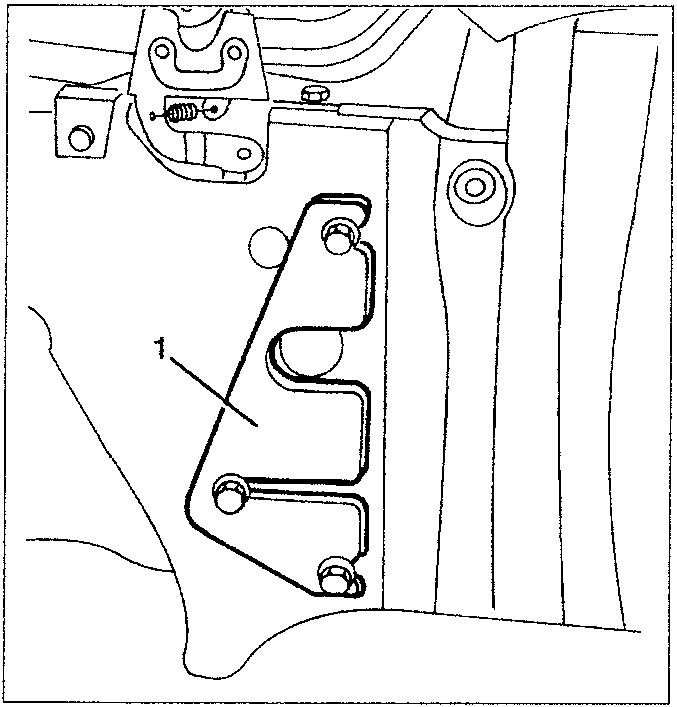

1. Remove any thicknesses on the connection surfaces of the hood brackets.

REFITTING

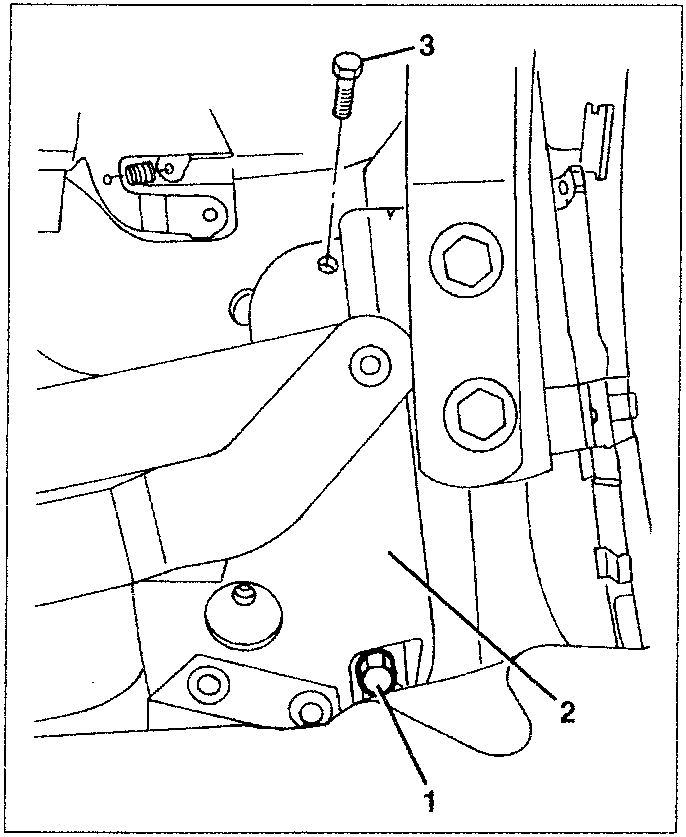

1. Screw the lower rest screws of the hood connection brackets, without tightening them.
2. Position the hood on the car, in the open position and resting on the lower screws.
3. Screw, without tightening them, upper screws fastening hood fastening brackets.

– Close the hood and hook it at the front.

1. Screw, without tightening them, the centre screws fastening the hood fastening brackets.

– Raise the rear of the hood, close the hood cover and hook the hood.

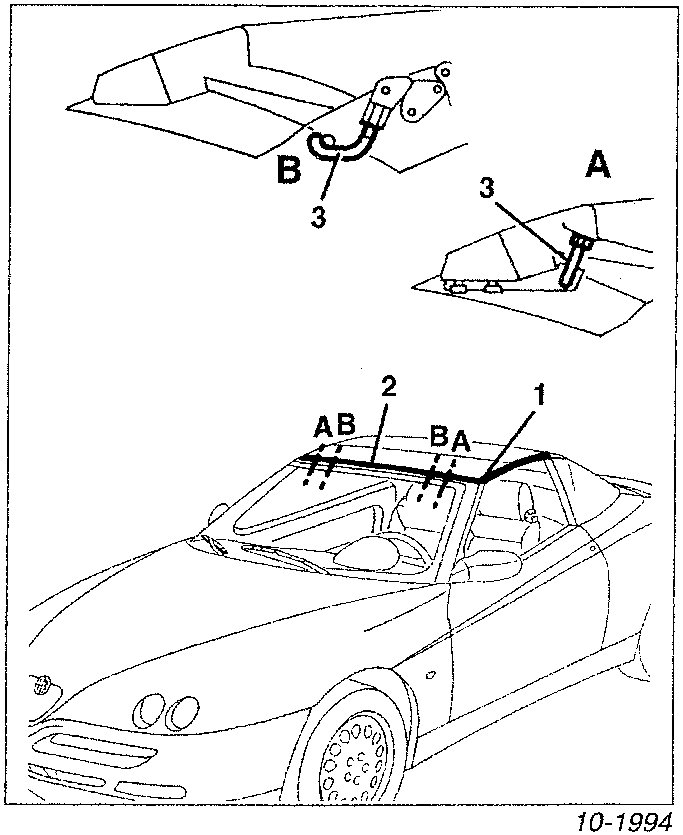

1. Check the front alignment between the longitudinal seals and the outer windscreen seal, the profile of the front arc and the windscreen crossmember.
2. Check the alignment and uniformity of the distance between the front hood arc and the upper windscreen crossmember. Check that the outer windscreen seal is squeezed uniformly.
3. Check that there is no interference between the centering pins and their seats and also that the front hooks work perfectly.
