Changing the hood canvas

CHANGING THE HOOD CANVAS

– Remove the hood inner lining (see specific paragraph).

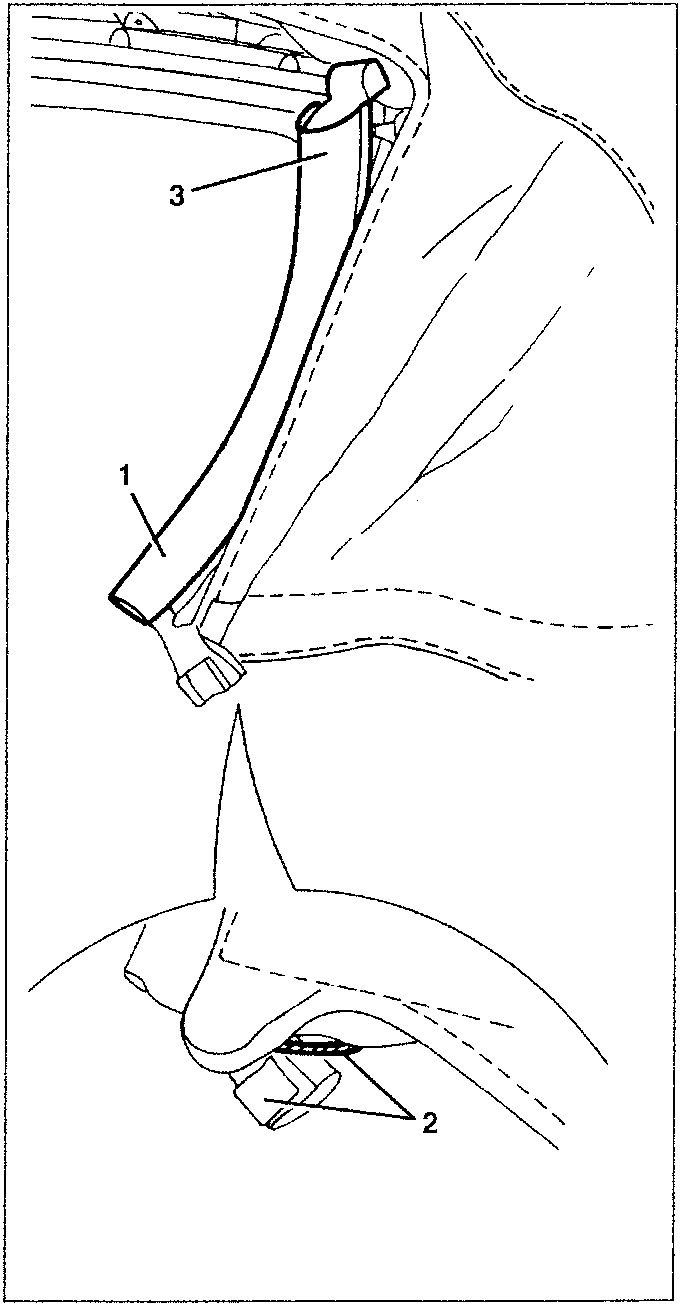

1. Working from each side, release the edges of the door surround vertical seal.
2. Release the lower clamp of the tensioning cable.
3. Prise the door surround vertical seal.

1. Part 1
2. Part 2
3. Part 3

1. Remove the seal.
2. Slacken the screws.
3. Remove the groove.

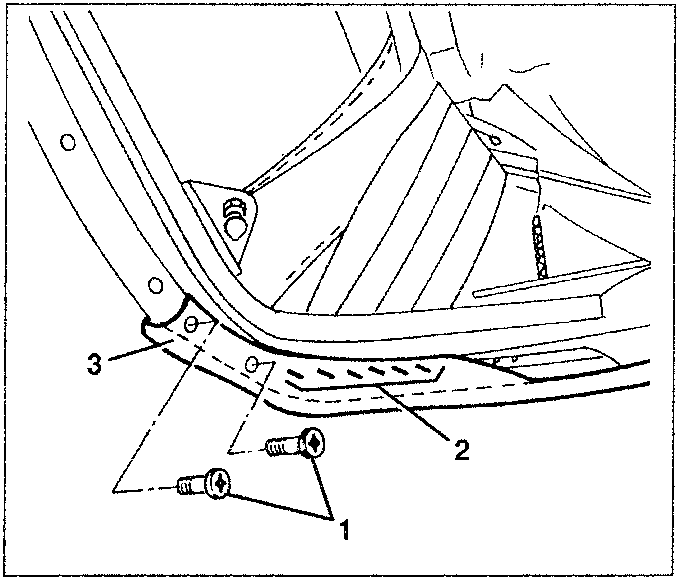

1. Working on the rear of the hood, slacken the two screws fastening the canvas ends on each side.
2. Remove the metal clips.
3. Release the edges of the hood canvas.
