70 BodyworkChanging the hood canvas · page 2 of 2

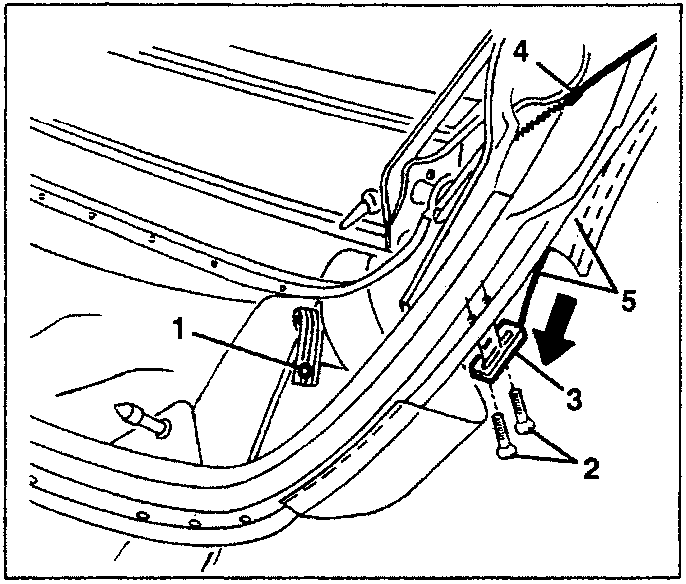

1. Working from each side, remove the rearscreen elastic tape button.
2. Slacken the two screws of the plate.
3. Release the plate of the tensioning cable in the rear area.
4. Release the other end of the cable from the spring.
5. Withdraw the cable from the slot in the hood canvas.

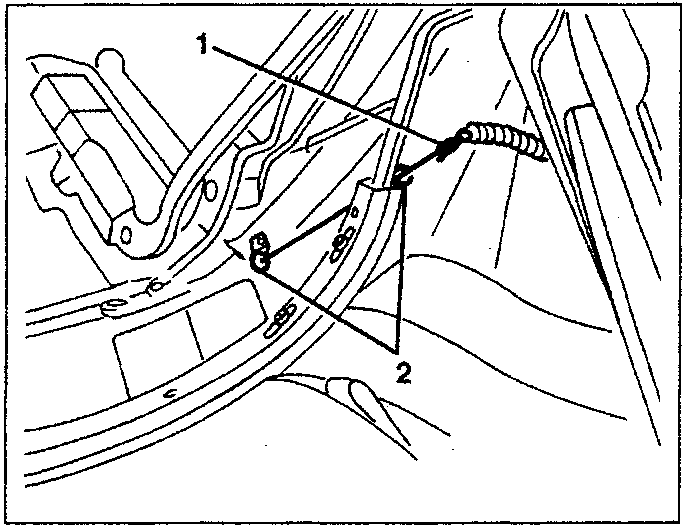

1. Release the tensioning cable from its spring in the front area.
2. Release the cable withdrawing it from the two rings.

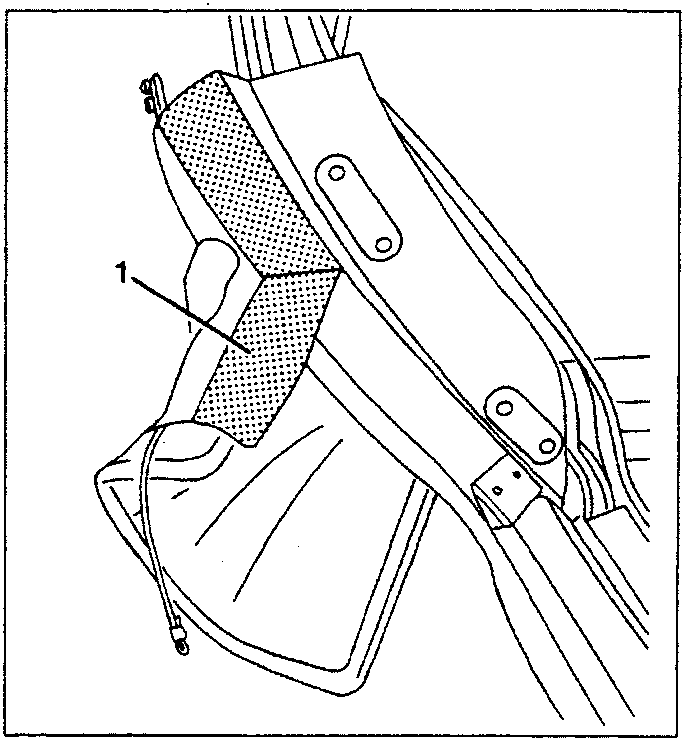

1. Detach the edges of the hood canvas from the connection surfaces of the door surround vertical seal grooves.

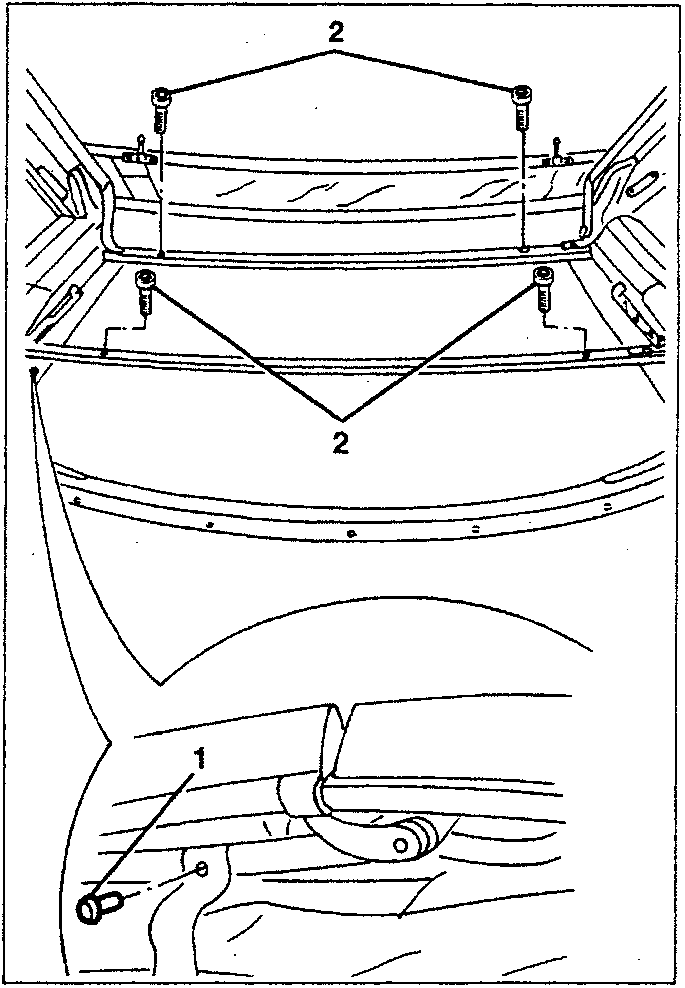

1. Remove the rivet fastening each side loop.
2. Slacken the two screws fastening the hood canvas to each rib.
