Changing the inner lining (page 2 of 2)

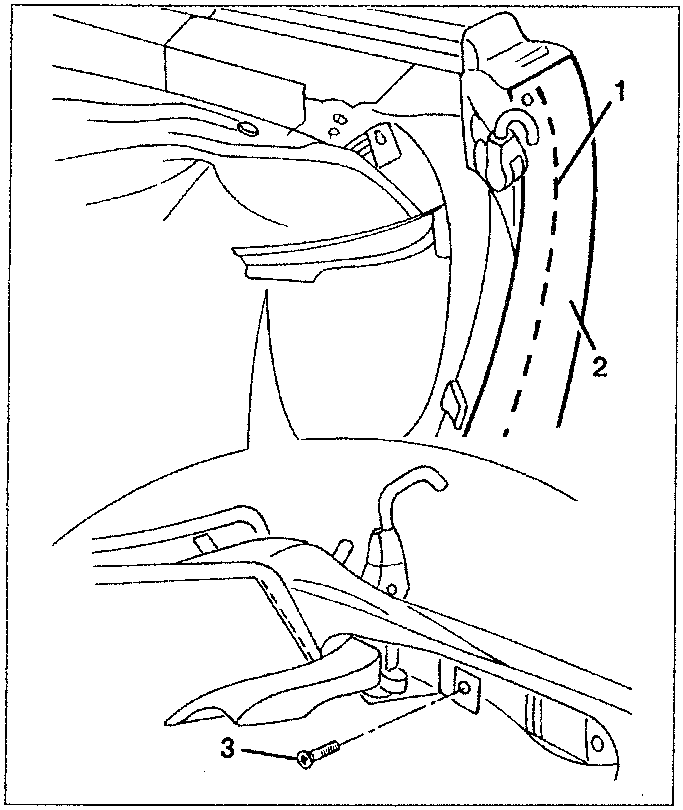

1. Slacken the two screws and release the front edge of the door contact seals.
2. Slacken the nine screws fastening the front profile.
3. Remove the front profile.

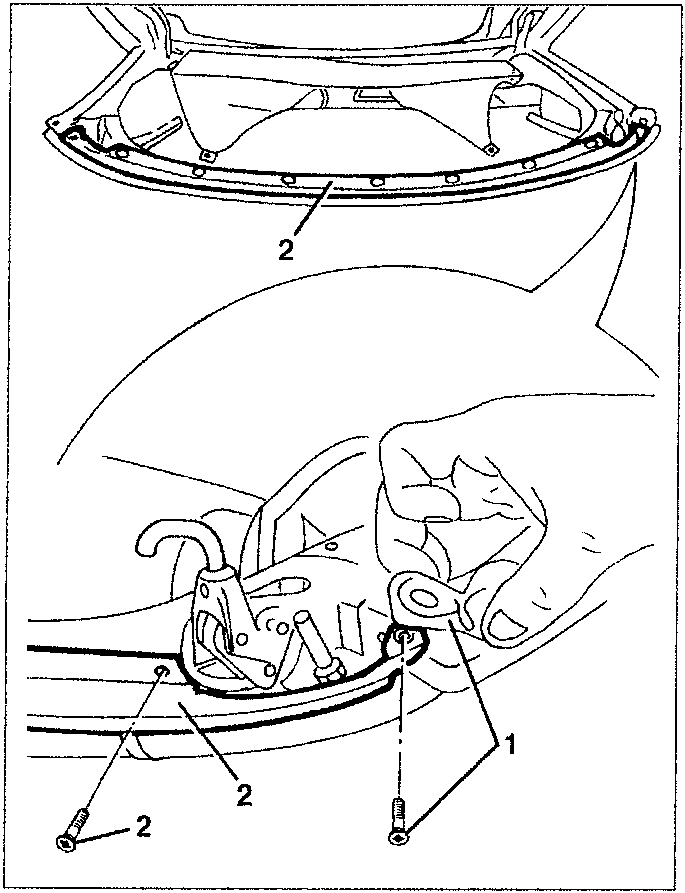

1. Remove the metal clips.
2. Remove the front edge of the hood.
3. Slacken the screws and release the front fastenings under the hood hooking handles.

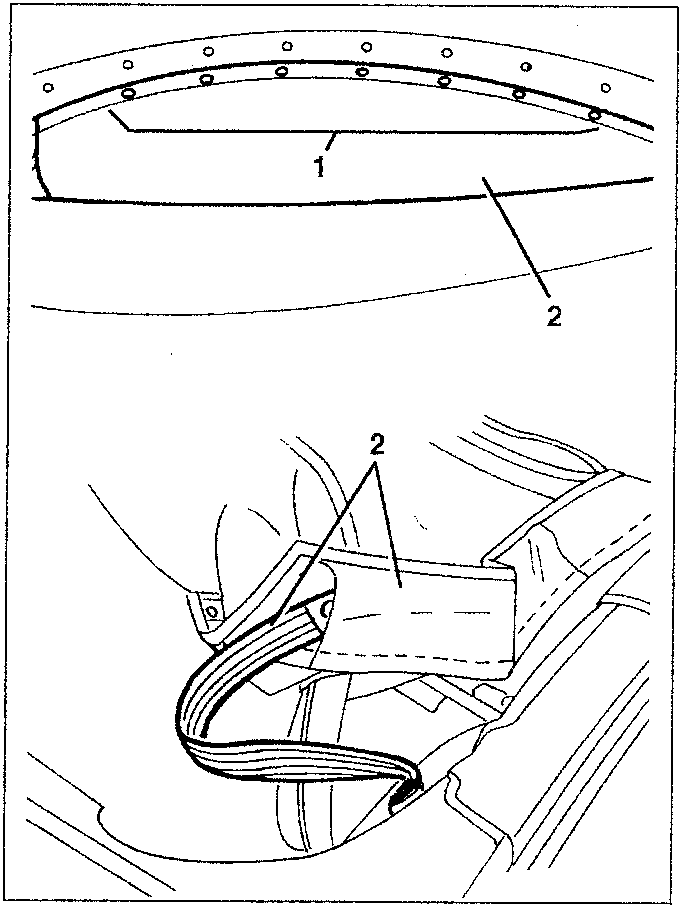

1. Working from the upper side of the hood frame, slacken the seven screws fastening the lining to the front edge of the hood.
2. Release the lining at the front withdrawing the elastic tapes from the side slots.

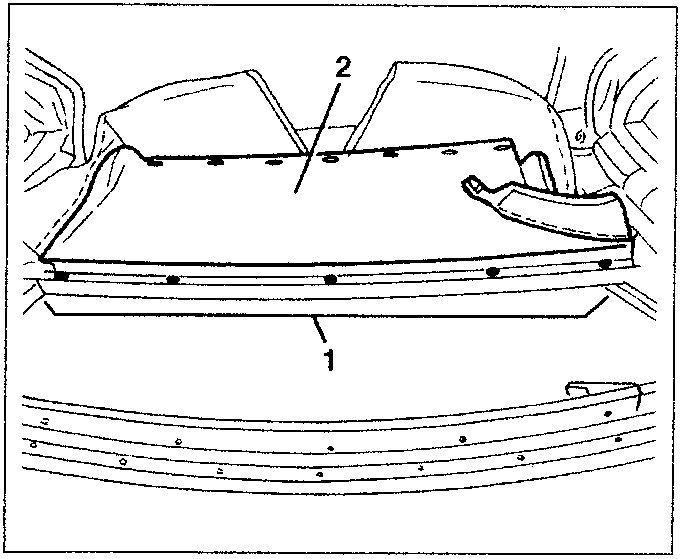

1. Slacken the five screws fastening the lining to the front rib.
2. Remove the lining.

Refit the lining reversing the sequence followed for removal.
