ELECTRIC MOTOR

MANUAL EMERGENCY OPERATION

This operation is to be carried out in the event of a fault to the sunroof control motor; manual operation is possible using the special wrench and following the procedure described.

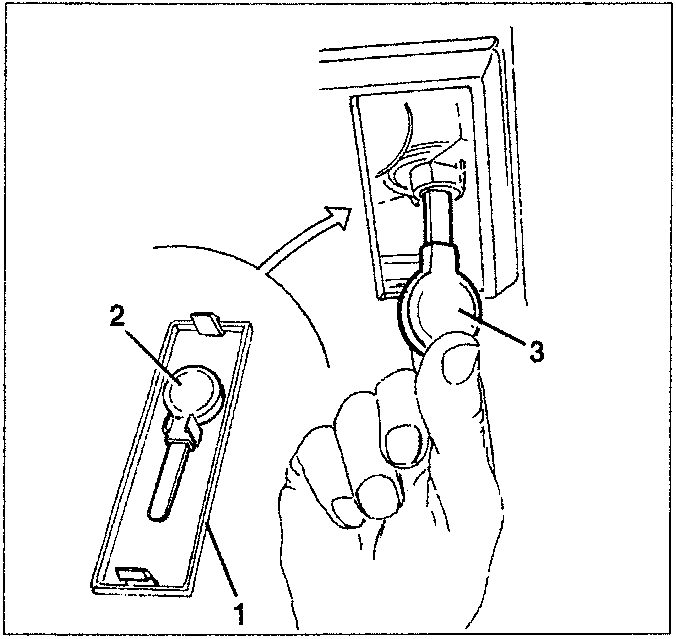

1. Remove the plate next to the front rooflamp.
2. From the plate remove the special wrench for operating the electric motor.
3. Insert the wrench in the seat on the motor drive spindle and turn it until the roof reaches the required position.

REMOVAL/REFITTING

• Disconnect the battery.

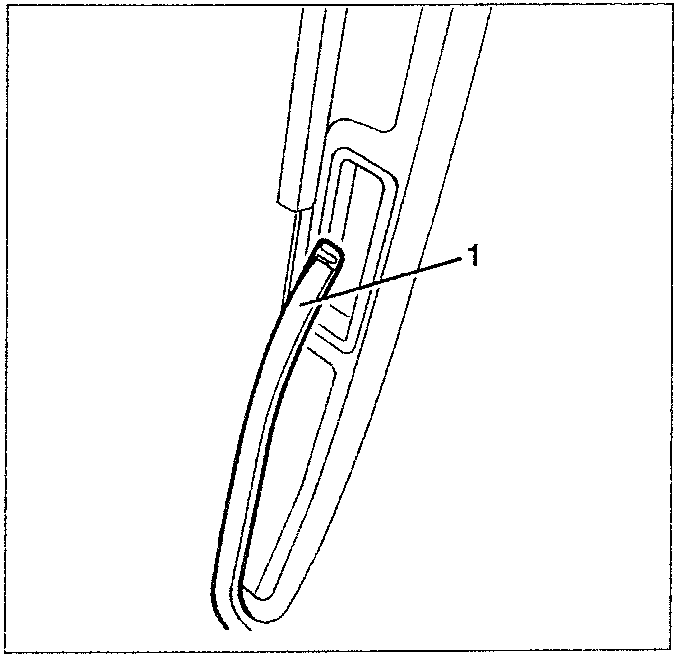

1. Prise the seal fastening the roof lining to the sunroof surround (the joint is at the centre of the rear side).

SUNROOF MOTOR

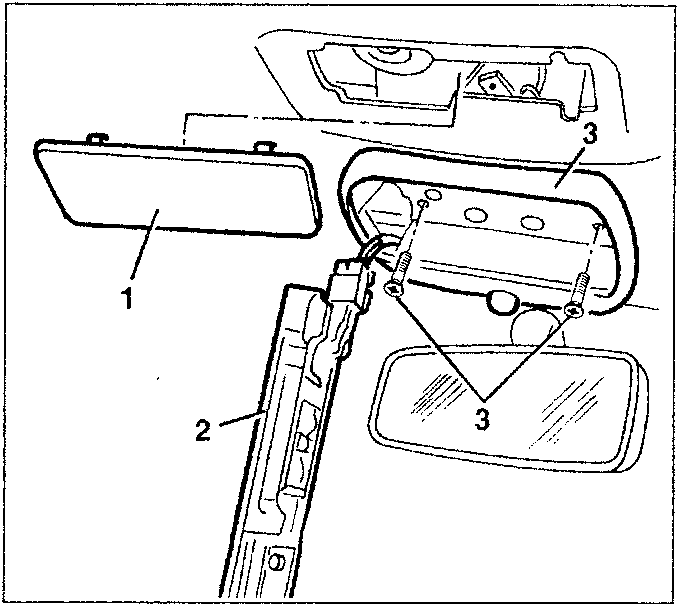

1. Remove the sunroof motor protection plate.
2. Remove the roof lamp.
3. Slacken the two screws and remove the frame.

MOTOR

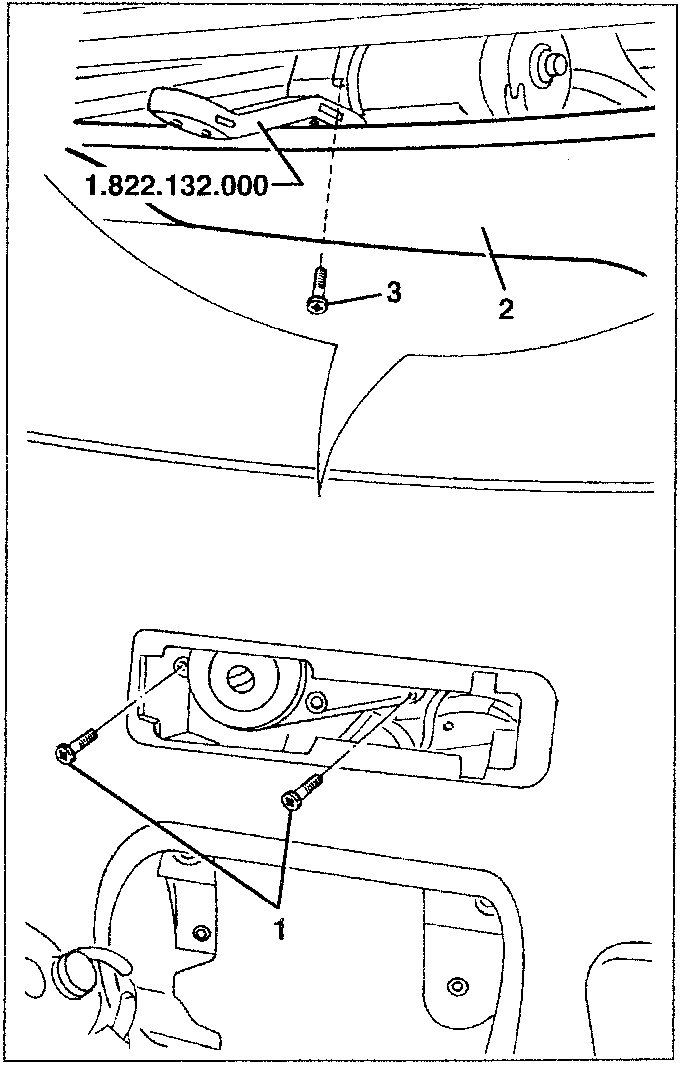

1. Slacken the two front screws fastening the motor.
2. Lower the roof lining.
3. Slacken the rear screw, using key tool n° 1.822.132.000.
