Sunroof closing

SUNROOF CLOSING

The closing movement of the sunroof takes place by pressing the control button (press B). The movement caused takes place reversing the sequence for opening.

The electric motor does not stop automatically in the "compass" position and the movement continues until runner S2 reaches the front mechanical stopper pad (8) when the sunroof is closed completely (Fig. 7d).

1. Front rocker pin
2. Pantograph pins
3. Fixed cam profiles
4. Pad
5. Pin
6. Rear rocker pin
7. Rear stopper pad
8. Front stopper pad
9. Pantograph
10. Front hinge
11. Fixed cam
12. Fixed guide
13. S1. Rear inner runner
14. S2. Front inner runner
15. S3. Outer runner

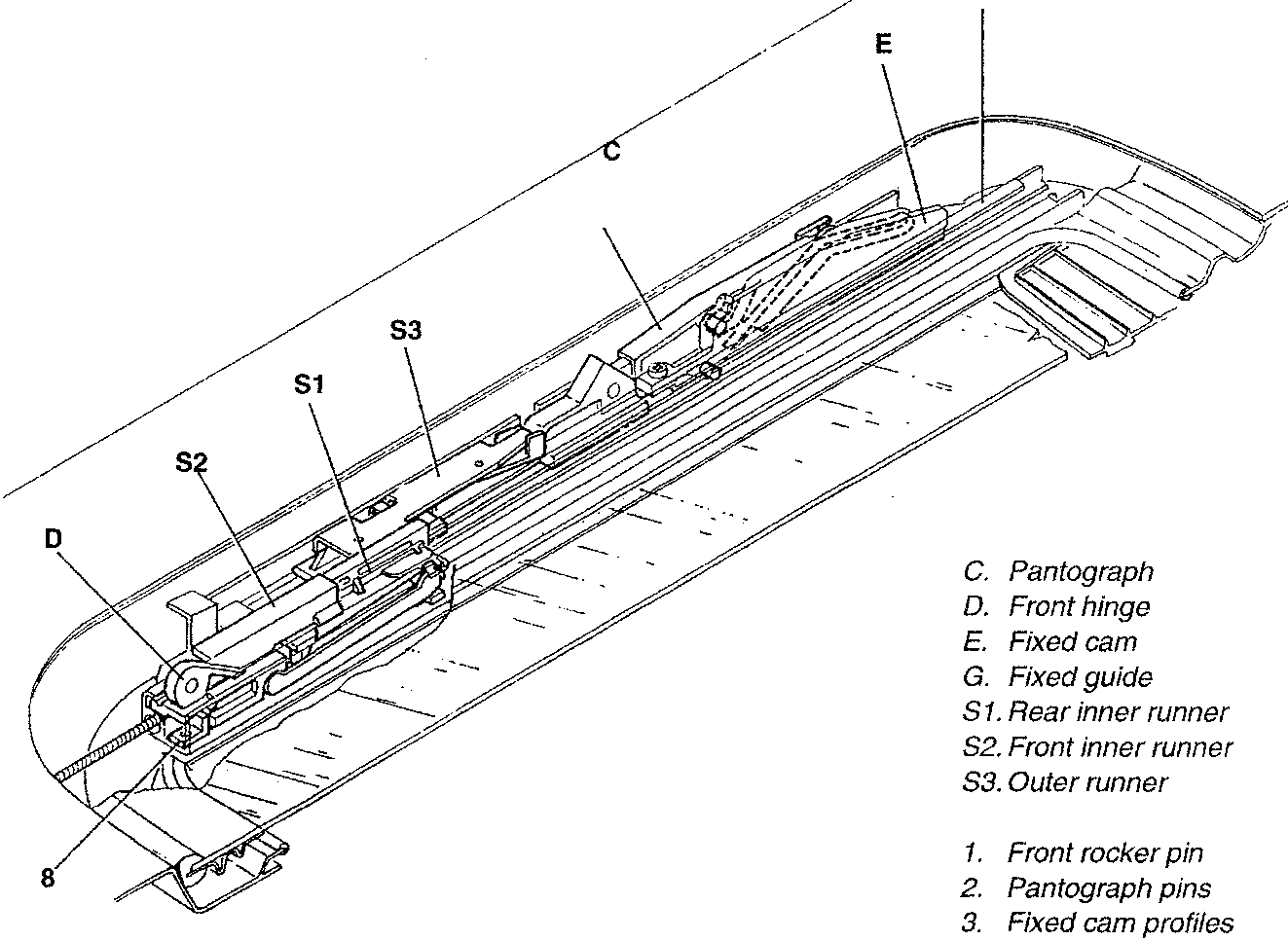

Fig. 7d - Position(a): Sunroof closed
