Mobile deflector

MOBILE DEFLECTOR

REMOVAL/REFITTING

• Move the roof to the open position.

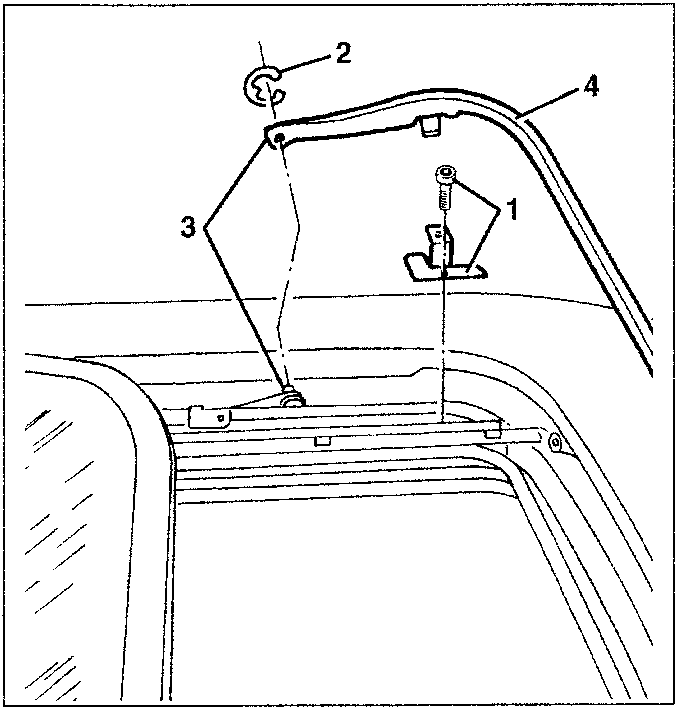

1. Working on each side, slacken the screw and remove the stopper.
2. Remove the seeger ring.
3. Withdraw the bracket from the pin.
4. Remove the deflector.

When refitting reverse the procedure described for dis-assembly following the instructions given below.

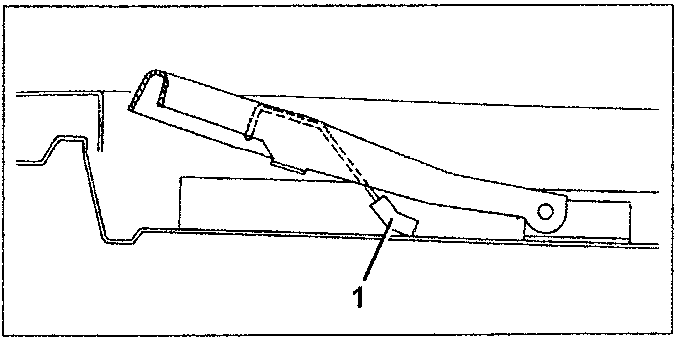

1. Lubricate with the contact surfaces between the flexible clip and the frame with grease.

SLIDING BLIND

• Remove the roof lining (see specific paragraph).

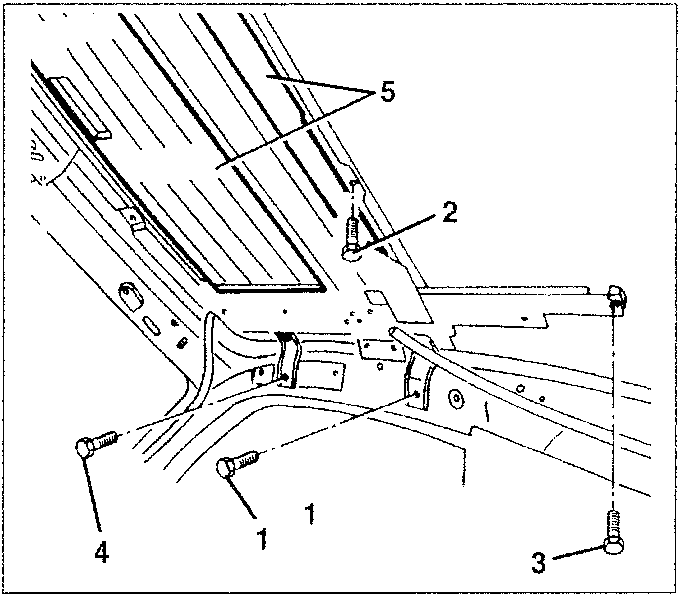

1. Slacken the two screws fastening the sunroof frame rear brackets.
2. Slacken the two rear screws of the sunroof frame.
3. Slacken the screws and remove the rear blind stopper pads.
4. Loosen the two screws fastening the sunroof frame front brackets.
5. Remove the blind at the rear from the guides and retrieve the spring pins.

Refite the blind reversing the sequence described for removal and following the instructions given below.

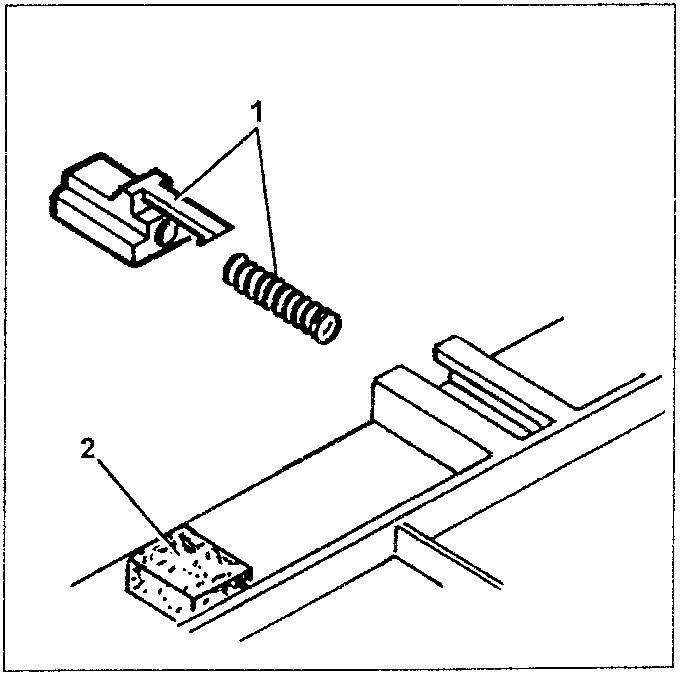

1. Position the spring pins correctly and keep them in place when inserting in the guides.
2. Check that the felts remain in the correct position.
