Complete sunroof removal/refitting

COMPLETE SUNROOF REMOVAL/REFITTING

– Remove the roof lining (see specific paragraph).

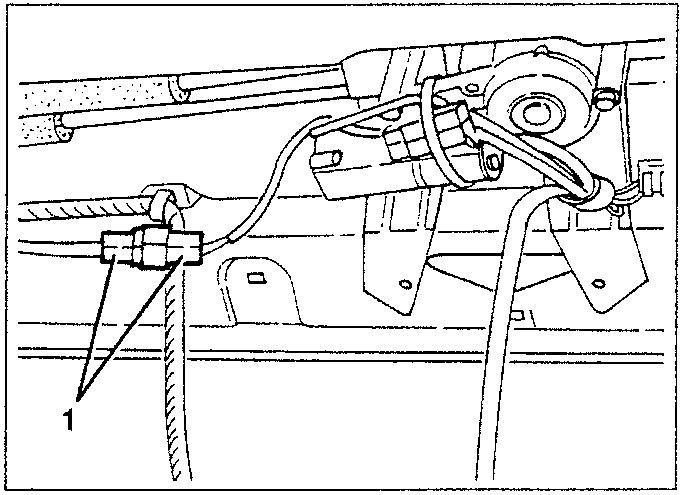

1. Disconnect the sunroof motor electrical connection.

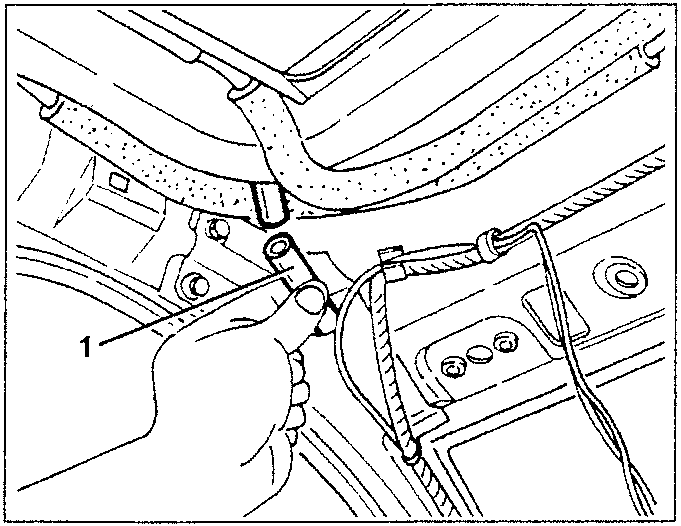

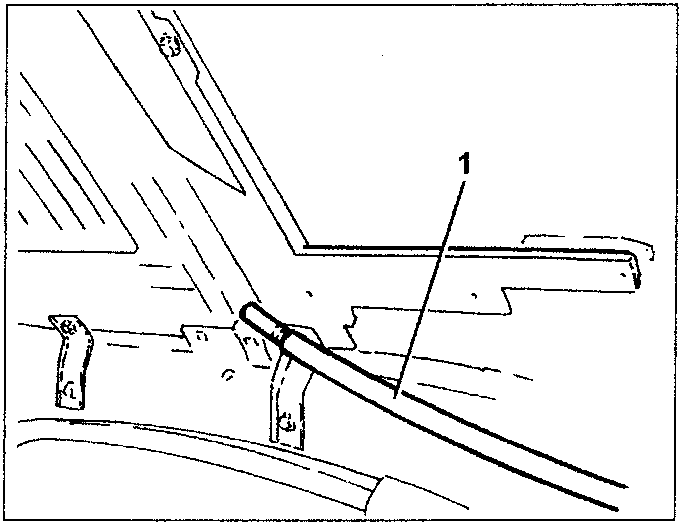

1. Disconnect the front and rear water drain pipes.

1. Disconnect the sunroof motor electrical connection.

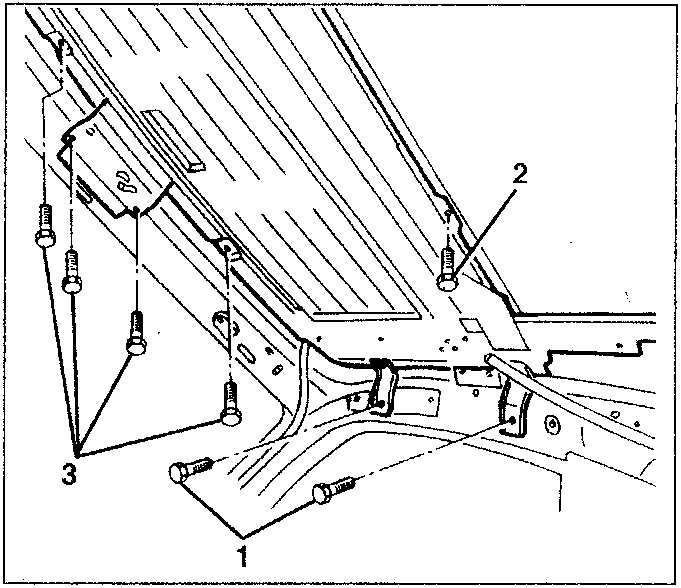

1. Slacken the two screws fastening the brackets to the body on each side.
2. Slacken the two screws fastening the rear of the sunroof frame.
3. Slacken the front screws.

– Lower the sunroof and remove it from the right-hand door

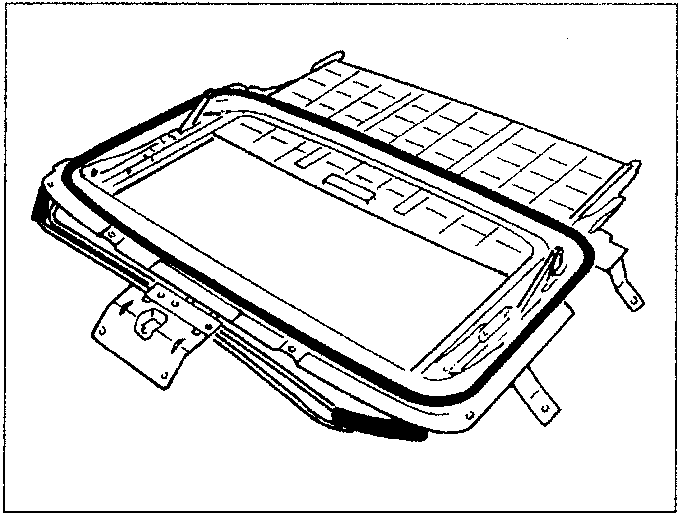

NOTE: When refitting the sunroof check for the presence of the seals around the perimeter and of the tubular ones of the rack and pinion guide tubes.

– After refitting, check alignment of the sunroof and that it is working properly.
