Sunroof glass

SUNROOF GLASS

REMOVAL/REFITTING

• Open the sliding blind.
• Move the glass to the quarterlight opening position.

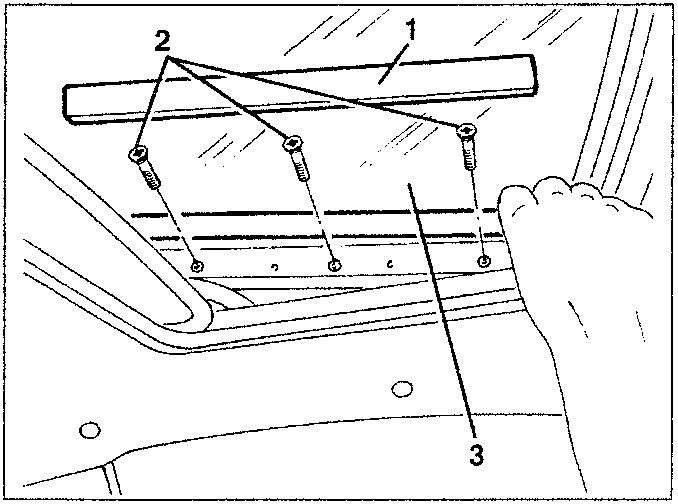

1. Remove the inner trim plate on each side.
2. Slacken the three screws on each side.
3. Raise and remove the glass from the outside.

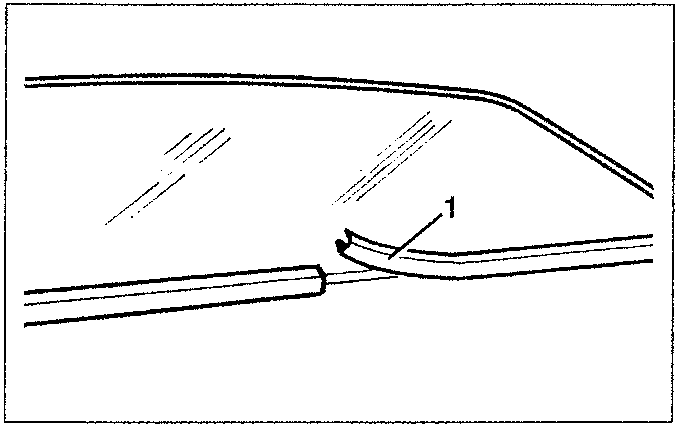

1. If necessary, prise and remove the glass seal lifting it upwards.

When refitting position the new seal with the joint in the centre of the front side.

Refit the del glass reversing the sequence followed for removal. Before tightening the screws adjust the position of the glass (see following paragraph)

ADJUSTING THE POSITION OF THE GLASS

NOTE: Two operators are necessary for adjusting the position of the sunroof glass, one working inside and the other outside the vehicle.

The operator outside positions the glass centred in relation to the housing on the car roof and level with its surface; the operator inside tightens the adjustment screws.

• Open the roof in the quarterlight position.
• Remove the inner plates protecting the running mechanism.
• Close the roof.

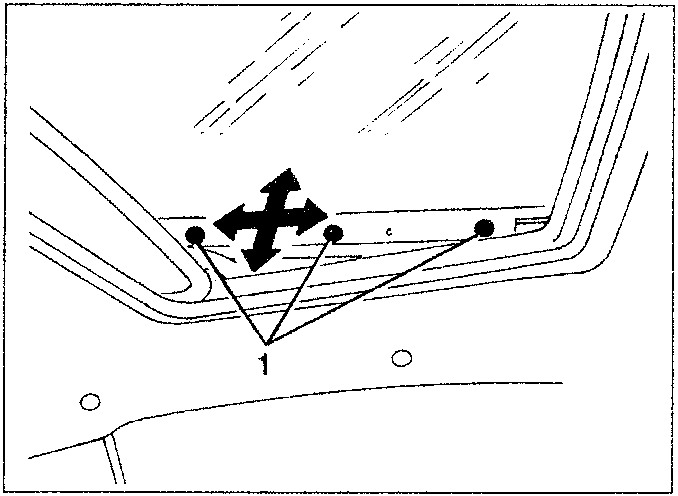

1. Loosen the six glass position adjustment screws (three screws on each side).
2. Position the glass correctly both longitudinally and vertically.
3. Tighten the six screws.
