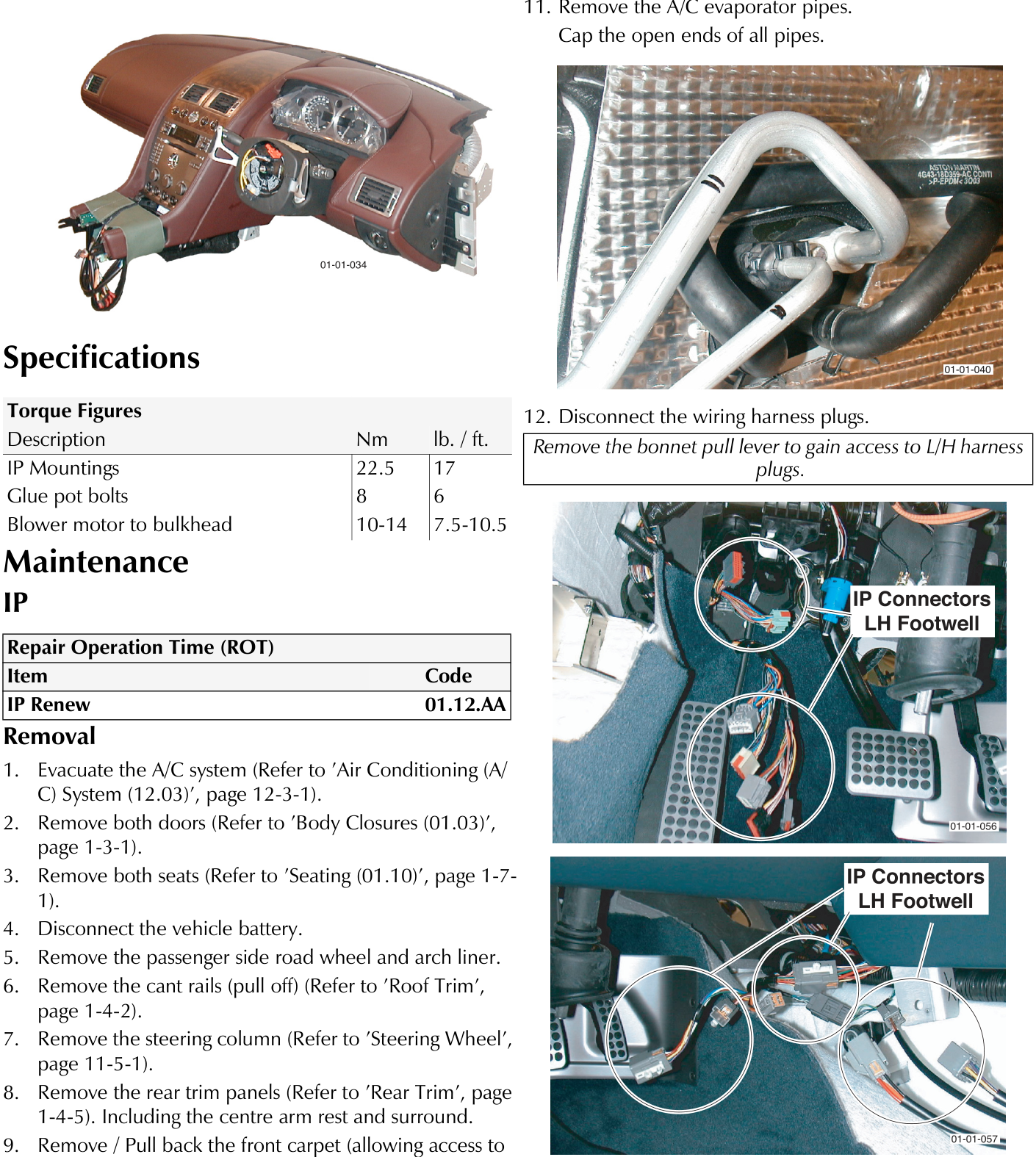

Instrument Panel (IP): Specifications

Specifications

Maintenance

IP

Removal

1. Evacuate the A/C system (Refer to 'Air Conditioning (A/ C) System (12.03)', page 12-3-1).
2. Remove both doors (Refer to 'Body Closures (01.03)', page 1-3-1).
3. Remove both seats (Refer to 'Seating (01.10)', page 1-7-1).
4. Disconnect the vehicle battery.
5. Remove the passenger side road wheel and arch liner.
6. Remove the cant rails (pull off) (Refer to 'Roof Trim', page 1-4-2).
7. Remove the steering column (Refer to 'Steering Wheel', page 11-5-1).
8. Remove the rear trim panels (Refer to 'Rear Trim', page 1-4-5). Including the centre arm rest and surround.
9. Remove / Pull back the front carpet (allowing access to the IP mounts and wiring harness plugs).
10. Remove the engine bay fusebox and fusebox mounting bracket.
11. Remove the A/C evaporator pipes.
    Cap the open ends of all pipes.

Remove the bonnet pull lever to gain access to L/H harness plugs.
