Differential

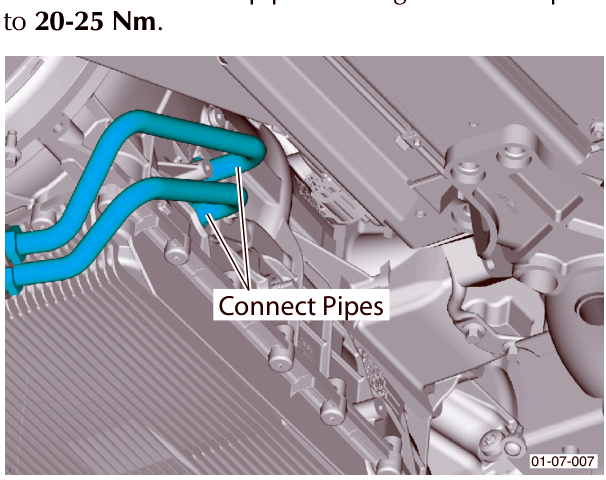

9. Connect the coolant pipes to the gearbox. Torque bolt to 20-25 Nm.

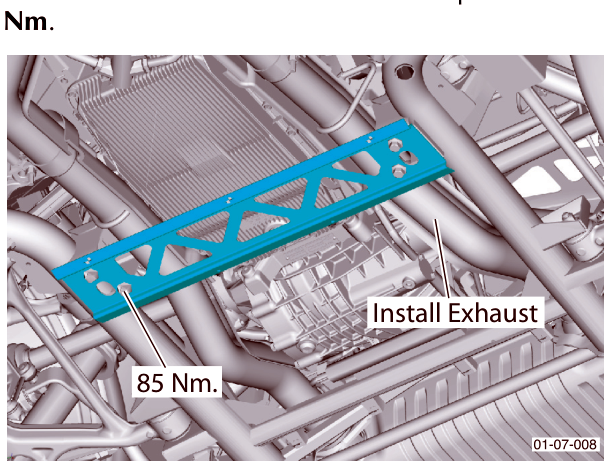

10. Install the LH rear exhaust pipe.
11. Install the subframe crossmember. Torque bolts to 85 Nm.

12. Top-up the gearbox oil (Refer to 'Transmission Oil Check / Top Up', page 7-1-4).
13. Run the engine and place gear selector lever in each position for at least 10 seconds. Stop the engine.
14. Check and, if required, top-up the gearbox oil.
15. Install the rear undertray.

Differential

Removal

1. Remove the rear subframe complete with the transaxle (Refer to 'Rear Subframe', page 2-1-4).
2. Using suitable lifting equipment, i.e. hydraulic ramp and sling, support the transaxle from above.
3. Remove the transaxle from it's mounts. Withdraw the transaxle from the subframe.

4. Remove the bolts (x4) that secure the differential to the gearbox. Withdraw the differential.
