07 TransmissionRemoval
Repair Operation Time (ROT)
ItemCode
Differential Oil Filter RenewTBA

Removal

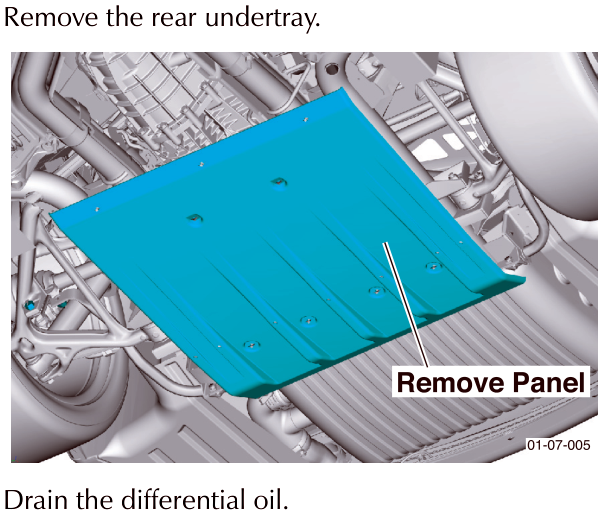

  1. Diagram showing the rear undertray panel highlighted in blue with a callout 'Remove Panel' pointing to it.
    Remove the rear undertray.
  2. Drain the differential oil.
  3. Remove bolts (x2). Withdraw the gauze filter.

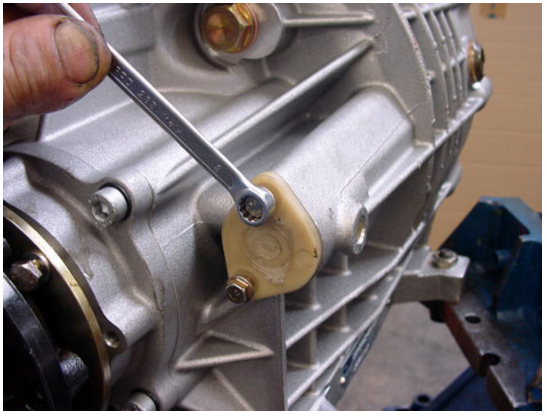

    Close-up photograph of a hand using a wrench to remove a bolt from the differential housing, next to a yellow gauze filter.

Installation

  1. Install the oil filter complete with a new ‘O’ ring. Torque bolts to 5 Nm.
  2. Ensure the drain plug is installed (Torque 49 Nm). Fill the differential with the specified oil (Refer to ‘Specifications’, page 7-1-3).

    3. Run the vehicle a short distance to ensure that the differential cooling system has been completely filled. Check / Top if required.

  3. Install the undertray.

Differential Speed Sensor

Repair Operation Time (ROT)
ItemCode
Differential Speed Sensor RenewTBA

Removal

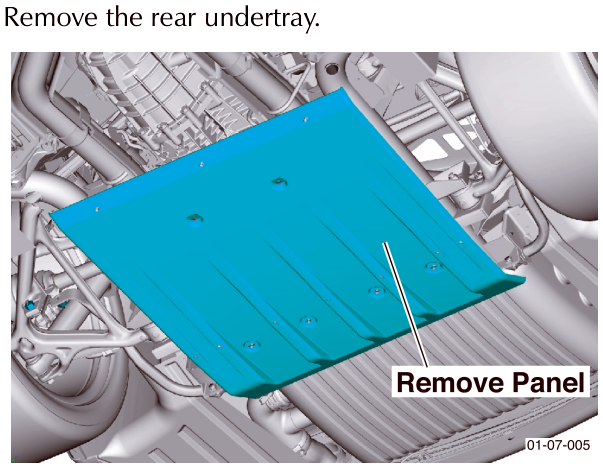

  1. Diagram showing the rear undertray panel highlighted in blue with a callout 'Remove Panel' pointing to it.
    Remove the rear undertray.
  2. Place a suitable container to hold any differential oil that may come from the opening.
  3. Disconnect the speed sensor. Remove the speed sensor.

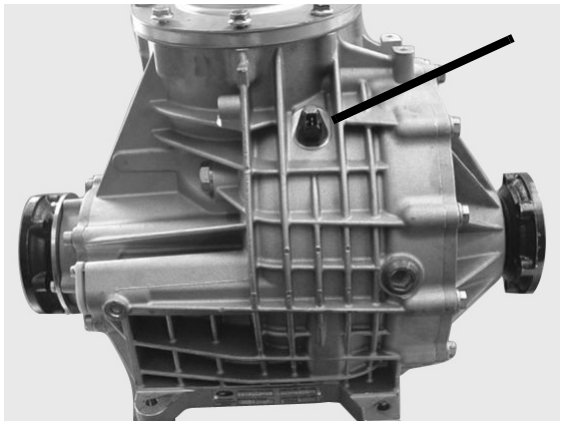

    Photograph of the differential assembly with a black arrow pointing to the speed sensor location on top.

Installation

  1. Install the speed sensor. Torque bolt to 10 Nm.
  2. Connect the wiring harness plug.
  3. Check / Top-up the differential oil (Refer to ‘Differential Oil Check / Top Up’, page 7-1-4).
  4. Install the undertray.
