Bulb Renewal

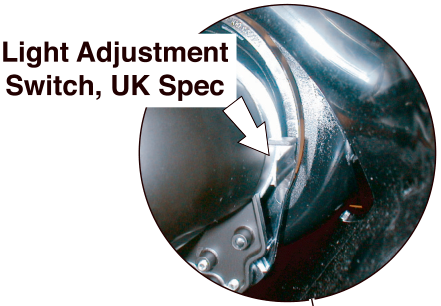

5. Locate the conversion switch and move up / down until a positive ‘click’ is heard.

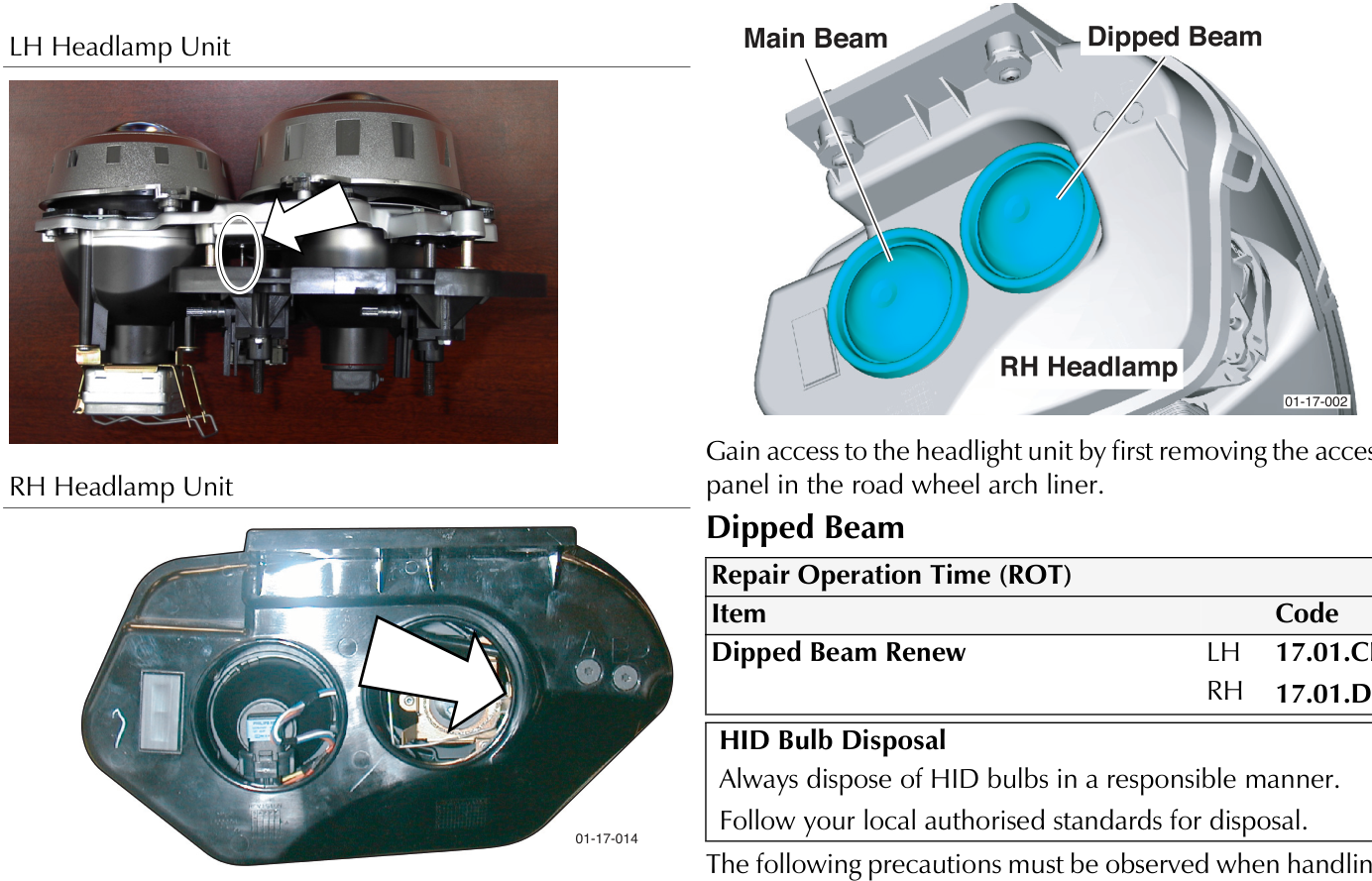

RH Headlamp Unit

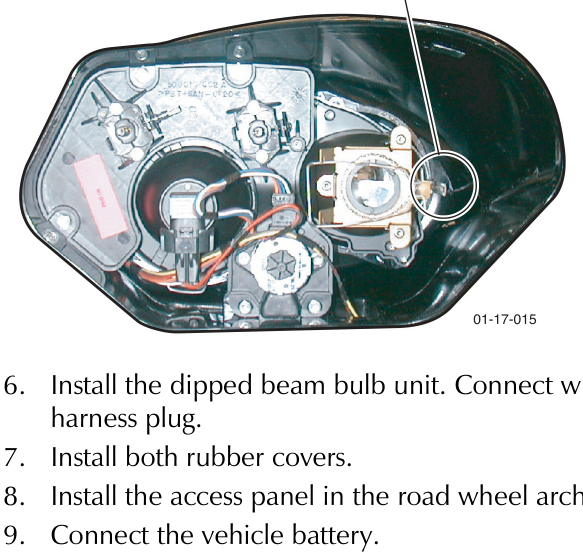

6. Install the dipped beam bulb unit. Connect wiring harness plug.
7. Install both rubber covers.
8. Install the access panel in the road wheel arch liner.
9. Connect the vehicle battery.

Bulb Renewal

Gain access to the headlight unit by first removing the access panel in the road wheel arch liner.

Dipped Beam

HID Bulb Disposal
Always dispose of HID bulbs in a responsible manner.
Follow your local authorised standards for disposal.

The following precautions must be observed when handling HID bulbs. Failure to comply may result in exposure to ultra violet rays, severe electric shock, burns or risk of explosion.

Warning
HID bulbs start-up voltage can be as much as 1000v. Ensure power to HID bulbs has been disconnected before attempting to service them. Failure to do this may result in a severe injury or death.

Warning
HID bulbs get hot during operation. Allow at least 15 minutes for headlamp assemblies to cool before attempting to service them. Failure to do this may result in burns to skin or clothing.

Warning
Never switch on lamps or test bulbs with the lamp holder detached from headlamp.

Warning
Eye and hand protection must be worn.

1. Disconnect the vehicle battery.
2. Remove the rubber cover.
