18 Electric distribution and electronic controlStand Alone Fuses
Stand Alone Fuses
| Fuse | Rating | Function |
|---|---|---|
| F1 | 40A | Cabin Fuse box supply |
| F2 | 30A | Cabin Fuse box supply |
| F3 | Blank | |
| F4 | 40A | Cabin Fuse box supply |
| F5 | 20A | Cabin Fuse box supply |

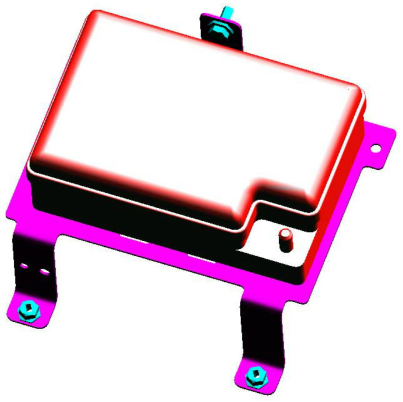

Boot Fusebox
| Fuse | Rating | Function |
|---|---|---|
| F1 | 5A | Convertible deck lid lock motors |
| F2 | 20A | Spare |
| F3 | 30A | Heated rear window |
| F4 | 20A | Rear quarter glass motor (LH) (Volante) Spare (Coupe) |
| F5 | 30A | Spare |
| F6 | 20A | Rear quarter glass motor (RH) (Volante) Spare (Coupe) |
| F7 | 5A | Battery disconnect switch (BDS) power |
| F8 | 30A | Fuel pump module (Bank B) / Tracker |
| F9 | 20A | Fuel pump module (Bank A) |
| F10 | 30A | Convertible roof module |
| F11 | 20A | Spare |
| F12 | 20A | Transmission control module (Automatic) |
| F13 | 10A | Tyre pressure monitoring |
| F14 | 5A | Rear parking assistance module (optional) |
| F15 | 5A | Transmission control module (Automatic) |
| F16 | 30A | Convertible roof hydraulic pump |
| F17 | 5A | Boot lamps / Rear power socket illumination |
| F18 | 30A | Audio amplifier |
| F19 | 5A | Spare |
| F20 | 10A | Canister vent |
| F21 | 30A | Convertible roof lid lock motors relay |
| F22 | 20A | Exhaust by-pass and vacuum pump |
| Relay | Rating | Function |
|---|---|---|
| R1 | Fuel pump driver module (7-12 (Bank B)) Tracker (If installed) | |
| R2 | Fuel pump driver module (1-6 (Bank A)) | |
| R3 | Cansiter vent valve Exhaust bypass valve and vacum pump | |
| R4 | TCM (auto only) | |
| Spare | ||
| Tyre pressure monitor | ||
| Parking aid (if installed) | ||
| R5 | Rear quarter glass motor (Volante) Spare (Coupe) BDS | |
| Rear quarter glass motor (Volante) Spare (Coupe) | ||
| R6 | Boot lamps | |
| R7 | Heated rear window |
How to Read the Circuits
Below is a simple guide to what symbols mean on the circuit diagrams. For some of the symbols there are descriptions as to how they function.

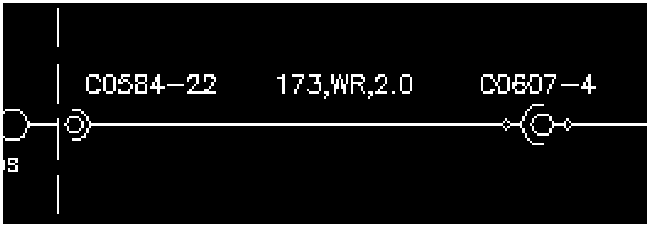

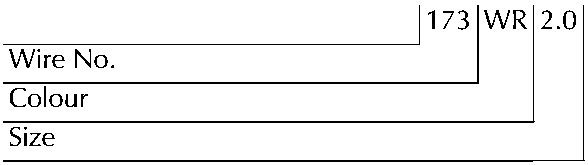

Wires
Wire numbers have been deleted from the original engineering circuits. This allows the type size to be increased for improved legibility of the service circuits.
Wires vary in size to allow different current to be carried. For example a wire with a diameter of 0.50mm (This is the diameter of all the internal copper strands together) will carry 11A (dependant on ambient temperature) whilst a wire with a diameter of 2.00mm will carry 25A.
