Overview of radio concert RMC (MOST)

Make

Audi

Model

A1

Section

Infotainment › Radio system › Overview of radio concert RMC (MOST)

Vehicle electricsOverview of radio concert RMC (MOST)

Overview of radio concert RMC (MOST)

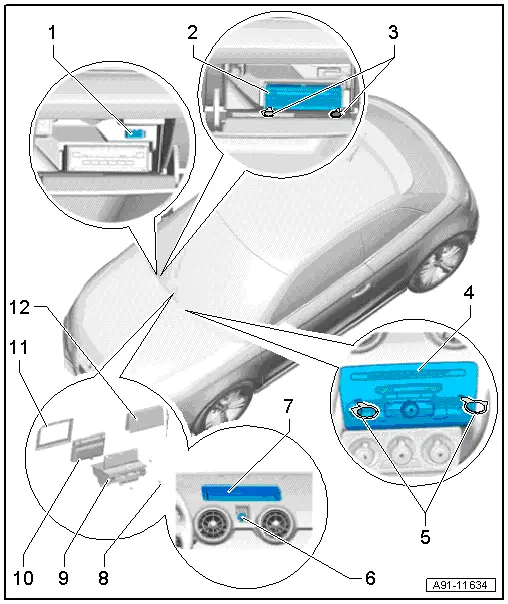

1 -	Connection for external audio sources -R199- (interface)

q	Pin assignment → Chapter

q	Removing and installing → Chapter

2 -	CD changer -R41-

q	Pin assignment → Chapter

q	Removing and installing → Chapter

3 -	Radio release tool -T10057-

4 -	Control unit 1 for information electronics -J794-

q	Pin assignment → Chapter

q	Removing and installing → Chapter

5 -	Radio release tool -T10057-

6 -

Bolt

q

2.5 Nm

7 -	Display kinematics carrier

8 -

Bolt (4x)

q

2 Nm

9 -	Display kinematics carrier

10 -	Display unit for front information display and operating unit control unit -J685- (display)

q	Pin assignment → Chapter

q	Removing and installing → Chapter

11 -	Front trim panel

12 -	Rear trim panel

05 General
