C001 battery earth

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Earths › C001 battery earth

Connectors and pin-outsC001 battery earth

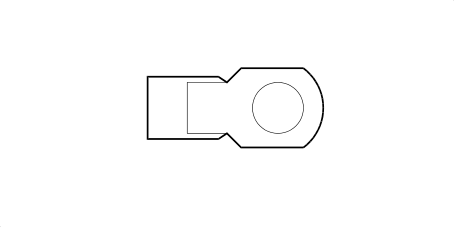

C001 BATTERY EARTH

C001A – Front

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	10	N		See M086A ELECTRIC STEERING CONTROL UNIT (FRONT)	B

C001B – Front

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See M010A ENGINE MANAGEMENT ECU (FRONT)	6
				See M010A ENGINE MANAGEMENT ECU (FRONT)	4
				See M010A ENGINE MANAGEMENT ECU (FRONT)	2
				See M015C PLUG PREHEATING CONTROL UNIT (FRONT)	1

C001C – Radiator

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	8	N		See N011 FAN MOTOR	2

1.4 16v · Heater

Wiring	Colour
See 11 RADIATOR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2.5	N		See N011 FAN MOTOR	2

21 General
