C002 battery earth on engine
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Earths › C002 battery earth on engine
Connectors and pin-outsC002 battery earth on engine

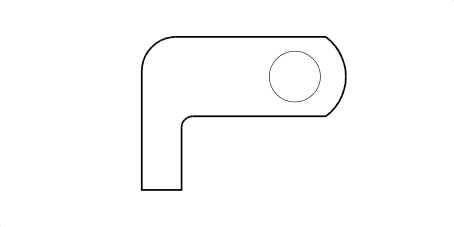

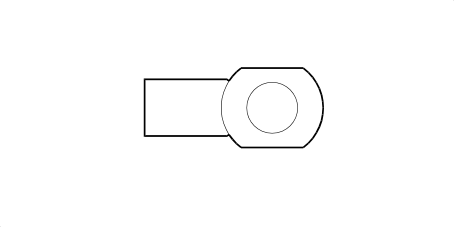

C002 BATTERY EARTH ON ENGINE
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 16 | N | X | See A001B BATTERY (BATTERY NEGATIVE) | ||
| See C003 BATTERY EARTH ON BODYSHELL | |||||
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 35 | N | X | See A001B BATTERY (BATTERY NEGATIVE) | ||
| See C003 BATTERY EARTH ON BODYSHELL | |||||
