G010 front courtesy light

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Interior lights › G010 front courtesy light

Connectors and pin-outsG010 front courtesy light

G010 FRONT COURTESY LIGHT

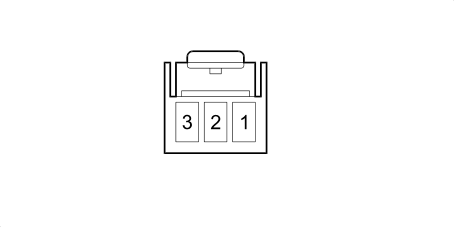

G010A – Rear

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See C020B PASSENGER SIDE DASHBOARD EARTH (REAR)
2		Z	X	See M001E BODY COMPUTER (REAR)	45
				See G040 BOOT COURTESY LIGHT	2
				See G032 PASSENGER SIDE SUN VISOR LIGHT	2
3		HL		See M001E BODY COMPUTER (REAR)	30

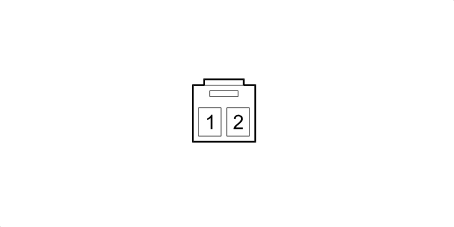

G010B – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		G		See M001E BODY COMPUTER (REAR)	52
2		N		See C020B PASSENGER SIDE DASHBOARD EARTH (REAR)
