Connectors and pin-outsG030 glove compartment light

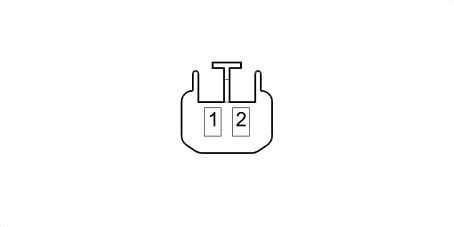

G030 GLOVE COMPARTMENT LIGHT
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | See C038 EARTH ON CENTRE TUNNEL | |||
| 2 | Z | See M001H BODY COMPUTER (DASHBOARD) | 16 | ||
