O040 left seat heater
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Resistances and dimmers › O040 left seat heater
Connectors and pin-outsO040 left seat heater

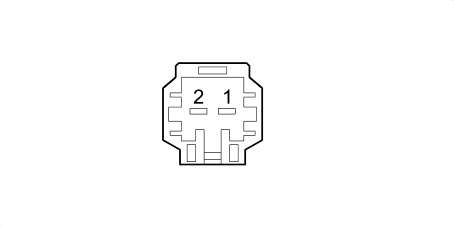

O040 LEFT SEAT HEATER
O040A – Left seat
| Wiring | Colour |
|---|---|
| See 36 LEFT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | B | See D070B DRIVER'S SEAT COUPLING (REAR) | 1 | |
| 2 | 1 | R | See O040B LEFT SEAT HEATER (LEFT SEAT) | 1 | |
O040B – Left seat
| Wiring | Colour |
|---|---|
| See 36 LEFT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | R | See O040A LEFT SEAT HEATER (LEFT SEAT) | 2 | |
| 2 | 1 | N | See D070B DRIVER'S SEAT COUPLING (REAR) | 3 | |
