D070 driver's seat coupling

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Intermediate couplings › D070 driver's seat coupling

Connectors and pin-outsD070 driver's seat coupling

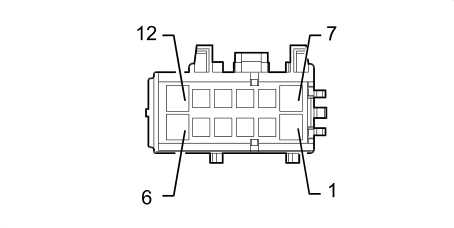

D070 DRIVER'S SEAT COUPLING

D070A – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3		BR		See M060B AIR BAG CONTROL UNIT (REAR)	28
4		BM	X	See M060B AIR BAG CONTROL UNIT (REAR)	27
				See D071A PASSENGER SEAT COUPLING (REAR)	4
5		N		See C050B AIR BAG SYSTEM EARTH (REAR)
7		VG		See M060B AIR BAG CONTROL UNIT (REAR)	12
8		VN		See M060B AIR BAG CONTROL UNIT (REAR)	11

D070A – Left seat

Wiring	Colour
See 36 LEFT SEAT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
5		N		See Q030B DRIVER'S SIDE BAG (LEFT SEAT)
7		L		See Q030A DRIVER'S SIDE BAG (LEFT SEAT)	1
8		M		See Q030A DRIVER'S SIDE BAG (LEFT SEAT)	2

D070B – Rear

Right hand drive

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HV		See B045 LUGGAGE COMPARTMENT JUNCTION UNIT	13
3		NZ		See C020A PASSENGER SIDE DASHBOARD EARTH (REAR)
6	2.5	N		See C030A LEFT REAR EARTH (REAR)
7	2.5	RV		See B045 LUGGAGE COMPARTMENT JUNCTION UNIT	10
8		B	X	See D071B PASSENGER SEAT COUPLING (REAR)	8
				See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	10
				See M084A PARKING SENSOR CONTROL UNIT (REAR)	12
9		L	X	See M084A PARKING SENSOR CONTROL UNIT (REAR)	6
				See D071B PASSENGER SEAT COUPLING (REAR)	9
				See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	28
10		N		See C020B PASSENGER SIDE DASHBOARD EARTH (REAR)

All versions

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HN		See B045 LUGGAGE COMPARTMENT JUNCTION UNIT	6
3		NZ		See C030B LEFT REAR EARTH (REAR)
6	2.5	N		See C030A LEFT REAR EARTH (REAR)
7	2.5	RL		See B045 LUGGAGE COMPARTMENT JUNCTION UNIT	12
8		B	X	See D071B PASSENGER SEAT COUPLING (REAR)	8
				See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	10
				See M084A PARKING SENSOR CONTROL UNIT (REAR)	12
9		L	X	See M084A PARKING SENSOR CONTROL UNIT (REAR)	6
				See D071B PASSENGER SEAT COUPLING (REAR)	9
				See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	28
10		N		See C030B LEFT REAR EARTH (REAR)

D070B – Left seat

Wiring	Colour
See 36 LEFT SEAT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	B		See O040A LEFT SEAT HEATER (LEFT SEAT)	1
3	1	N		See O040B LEFT SEAT HEATER (LEFT SEAT)	2
