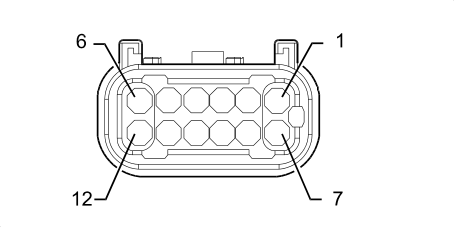

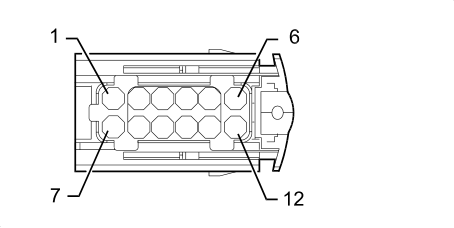

D004 FRONT/ENGINE COUPLING

1.4 16v TJet

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LR		See B001C JUNCTION UNIT (FRONT)	18
5		HN		See M001A BODY COMPUTER (FRONT)	25
6	1.5	M		See H001A IGNITION SWITCH (FRONT)	3
7	1.0	LV	X	See B001C JUNCTION UNIT (FRONT)	7
				See L037 WASTE GATE SOLENOID VALVE	1
12	1.0	MN		See B001C JUNCTION UNIT (FRONT)	4

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		LB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	19
3	1	LV	X	See M015C PLUG PREHEATING CONTROL UNIT (FRONT)	3
				See B001C JUNCTION UNIT (FRONT)	7
				See K040 LAMBDA SENSOR	4
5		HN		See M001A BODY COMPUTER (FRONT)	25
6	1.5	M		See H001A IGNITION SWITCH (FRONT)	3
12	1	MN		See B001C JUNCTION UNIT (FRONT)	4

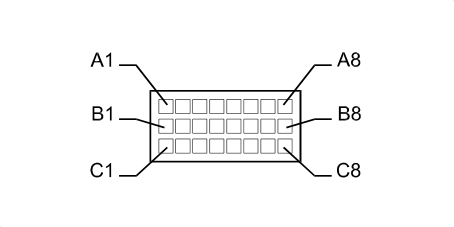

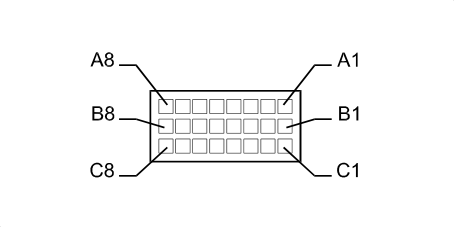

1.4 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A1	1	B	X	See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	8
				See H005A STEERING COLUMN SWITCH UNIT (FRONT)	3
A2		VN		See I030 BRAKE PEDAL SWITCH	1
A3		M		See M050 ABS CONTROL UNIT	14
A4		V		See M050 ABS CONTROL UNIT	25
A5		VB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	16
A6		HN		See M001A BODY COMPUTER (FRONT)	25
A7		ZB		See D001 FRONT/DASHBOARD COUPLING	4
A8	1	LB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	18
B1	1	LN		See K120 LINEAR SENSOR FOR FANS	2
B2		NZ		See K055 ACCELERATOR PEDAL POTENTIOMETER	5
B3		HR		See K055 ACCELERATOR PEDAL POTENTIOMETER	6
B4		LR		See K055 ACCELERATOR PEDAL POTENTIOMETER	1
B5		NV		See K055 ACCELERATOR PEDAL POTENTIOMETER	3
B6		HV		See K055 ACCELERATOR PEDAL POTENTIOMETER	4
B7		LG		See K055 ACCELERATOR PEDAL POTENTIOMETER	2
B8	1	ZN		See D008A AIR CONDITIONING-HEATER FRONT COUPLING (FRONT)	5
C1	1	N		See K120 LINEAR SENSOR FOR FANS	1
C2		MH		See H007 CRUISE CONTROL SYSTEM CONTROL	1
C3		HM		See K120 LINEAR SENSOR FOR FANS	3
C4		BG		See H007 CRUISE CONTROL SYSTEM CONTROL	5
C5		BC		See H007 CRUISE CONTROL SYSTEM CONTROL	6
C6		MN		See I031 CLUTCH PEDAL SWITCH	4
C7		BR	X	See M001A BODY COMPUTER (FRONT)	26
				See D001 FRONT/DASHBOARD COUPLING	10
C8	1	MR		See H007 CRUISE CONTROL SYSTEM CONTROL	4

1.4 16v TJet

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HV	X	See K015 LAMBDA SENSOR ON PRE-CATALYZER	4
				See K017 LAMBDA SENSOR ON CATALYZER	4
				See L102 TURBOCHARGER BY-PASS SOLENOID VALVE	1
				See L010 FUEL VAPOUR RECOVERY SOLENOID VALVE	1
5		HN		See A010A ALTERNATOR (ENGINE)
6	1.5	MB		See A020B STARTER MOTOR (ENGINE)
7	1.0	HV	X	See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See D081 INJECTOR JUNCTION	5
12	1.0	MN		See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET	1

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		LB		See K041 AIR FLOW METER	1
3	1	LR	X	See L064 FLOW MODIFYING SOLENOID VALVE	6
				See L036 TURBINE VARIABLE GEOMETRY CONTROL SOLENOID VALVE	2
				See L030 EGR SOLENOID VALVE	1
				See L062 THROTTLE BODY SOLENOID VALVE	2
5		HN		See A010A ALTERNATOR (ENGINE)
6	1.5	M		See A020B STARTER MOTOR (ENGINE)
12	1	MN		See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET	1

1.4 16v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A01	1	MN		See I020 REVERSING LIGHTS SWITCH	2
A02		CL		See M010A ENGINE MANAGEMENT ECU (FRONT)	57
A03		BN		See M010A ENGINE MANAGEMENT ECU (FRONT)	43
A04		LB		See M010A ENGINE MANAGEMENT ECU (FRONT)	11
A05		LN		See M010A ENGINE MANAGEMENT ECU (FRONT)	25
A06		HN		See A010A ALTERNATOR (ENGINE)	1
A07		LG		See M010A ENGINE MANAGEMENT ECU (FRONT)	31
A08	1	MR		See I020 REVERSING LIGHTS SWITCH	1
B01	1	BL		See M010A ENGINE MANAGEMENT ECU (FRONT)	53
B02		HM		See D004 FRONT/ENGINE COUPLING
				See M010A ENGINE MANAGEMENT ECU (FRONT)	5
B03		BV		See M010A ENGINE MANAGEMENT ECU (FRONT)	37
B04		LV		See M010A ENGINE MANAGEMENT ECU (FRONT)	4
B05		GL		See M010A ENGINE MANAGEMENT ECU (FRONT)	22
B06		BC		See M010A ENGINE MANAGEMENT ECU (FRONT)	54
B07		GN		See M010A ENGINE MANAGEMENT ECU (FRONT)	21
B08	1	BR		See M010A ENGINE MANAGEMENT ECU (FRONT)	40
C01	1	HR		See D004 FRONT/ENGINE COUPLING
				See M010A ENGINE MANAGEMENT ECU (FRONT)	5
C02		G		See M010A ENGINE MANAGEMENT ECU (FRONT)	41
C03		CB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	54
C04		M		See M010A ENGINE MANAGEMENT ECU (FRONT)	8
C05		H		See M010A ENGINE MANAGEMENT ECU (FRONT)	9
C06		GR		See M010A ENGINE MANAGEMENT ECU (FRONT)	7
C07		GV		See M010A ENGINE MANAGEMENT ECU (FRONT)	2
C08	1	LH		See B001A JUNCTION UNIT (FRONT)	58
