D001 front/dashboard coupling

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Intermediate couplings › D001 front/dashboard coupling

Connectors and pin-outsD001 front/dashboard coupling

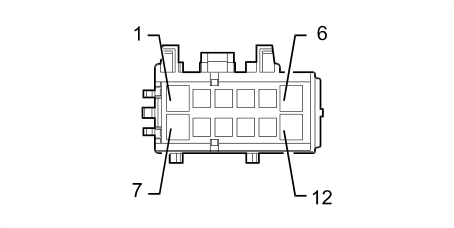

D001 FRONT/DASHBOARD COUPLING

1.4 16v TJet, 1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		M		See K039 FRONT AIR BAG SENSOR	1
3		MN		See K039 FRONT AIR BAG SENSOR	2
4		ZB		See M010A ENGINE MANAGEMENT ECU (FRONT)	71
5		VB		See B001A JUNCTION UNIT (FRONT)	21
7		BM		See M050 ABS CONTROL UNIT	21
8		HM		See M050 ABS CONTROL UNIT	22
9		BH		See M086B ELECTRIC STEERING CONTROL UNIT (FRONT)	4
10		BR	X	See M001A BODY COMPUTER (FRONT)	26
				See M010A ENGINE MANAGEMENT ECU (FRONT)	25
11		BZ	X	See M001A BODY COMPUTER (FRONT)	22
				See M050 ABS CONTROL UNIT	11

1.4 16v TJet, 1.9 JTD 8v, 1.9 JTD 16v · Right hand drive

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BC	X	See M001B BODY COMPUTER (FRONT)	47
				See F010 LEFT HEADLAMP	11
				See F011 RIGHT HEADLAMP	11
2		M		See K039 FRONT AIR BAG SENSOR	1
3		MN		See K039 FRONT AIR BAG SENSOR	2
4		ZB		See M010A ENGINE MANAGEMENT ECU (FRONT)	71
5		VB		See B001A JUNCTION UNIT (FRONT)	21
7		BM		See M050 ABS CONTROL UNIT	21
8		HM		See M050 ABS CONTROL UNIT	22
9		BH		See M086B ELECTRIC STEERING CONTROL UNIT (FRONT)	4
10		BR	X	See M001A BODY COMPUTER (FRONT)	26
				See M010A ENGINE MANAGEMENT ECU (FRONT)	25
11		BZ	X	See M001A BODY COMPUTER (FRONT)	22
				See M050 ABS CONTROL UNIT	11

1.4 16v · Right hand drive

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BC	X	See M001B BODY COMPUTER (FRONT)	47
				See F010 LEFT HEADLAMP	11
				See F011 RIGHT HEADLAMP	11
2		M		See K039 FRONT AIR BAG SENSOR	1
3		MN		See K039 FRONT AIR BAG SENSOR	2
4		ZB		See D004 FRONT/ENGINE COUPLING	A7
5		VB		See B001A JUNCTION UNIT (FRONT)	21
7		BM		See M050 ABS CONTROL UNIT	21
8		HM		See M050 ABS CONTROL UNIT	22
9		BH		See M086B ELECTRIC STEERING CONTROL UNIT (FRONT)	4
10		BR	X	See M001A BODY COMPUTER (FRONT)	26
				See D004 FRONT/ENGINE COUPLING	C7
				See D001 FRONT/DASHBOARD COUPLING	10
11		BZ	X	See M001A BODY COMPUTER (FRONT)	22
				See M050 ABS CONTROL UNIT	11

1.4 16v

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		M		See K039 FRONT AIR BAG SENSOR	1
3		MN		See K039 FRONT AIR BAG SENSOR	2
4		ZB		See D004 FRONT/ENGINE COUPLING	A7
5		VB		See B001A JUNCTION UNIT (FRONT)	21
7		BM		See M050 ABS CONTROL UNIT	21
8		HM		See M050 ABS CONTROL UNIT	22
9		BH		See M086B ELECTRIC STEERING CONTROL UNIT (FRONT)	4
10		BR	X	See M001A BODY COMPUTER (FRONT)	26
				See D004 FRONT/ENGINE COUPLING	C7
11		BZ	X	See M001A BODY COMPUTER (FRONT)	22
				See M050 ABS CONTROL UNIT	11

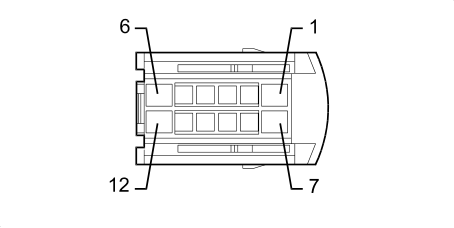

Right hand drive

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BC		See R010 MULTIPLE TESTER CONNECTION	12
2		M-T31		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	12
3		MN-T31		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	11
4		ZB		See E050 INSTRUMENT PANEL	18
5		VB		See D047 CLOCK SPRING COUPLING	1
7		BM		See H090A SWITCH CONTROL PANEL (DASHBOARD)	11
8		HM		See H090B SWITCH CONTROL PANEL (DASHBOARD)	9
9		BH	X	See M001H BODY COMPUTER (DASHBOARD)	11
				See R010 MULTIPLE TESTER CONNECTION	9
10		BR		See R010 MULTIPLE TESTER CONNECTION	7
11		BZ		See R010 MULTIPLE TESTER CONNECTION	1

All versions

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		M-T31		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	12
3		MN-T31		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	11
4		ZB		See E050 INSTRUMENT PANEL	18
5		VB		See D047 CLOCK SPRING COUPLING	1
7		BM		See H090A SWITCH CONTROL PANEL (DASHBOARD)	11
8		HM		See H090B SWITCH CONTROL PANEL (DASHBOARD)	9
9		BH		See M001H BODY COMPUTER (DASHBOARD)	11

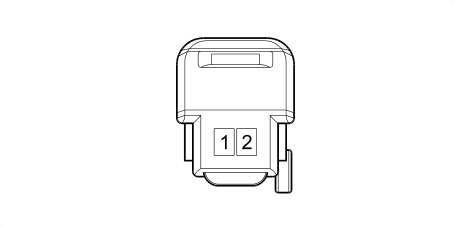

D001B – Front

Right hand drive

Wiring	Colour
See 12 FRONT	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LH		See M001A BODY COMPUTER (FRONT)	7
2		NV		See M001A BODY COMPUTER (FRONT)	8

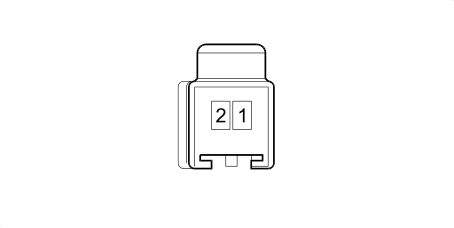

D001B – Dashboard

Right hand drive

Wiring	Colour
See 20 DASHBOARD	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LH		See P091 AERIAL FOR FIAT-CODE	1
2		NV		See P091 AERIAL FOR FIAT-CODE	2
