H090 switch control panel

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Manual electric controls › H090 switch control panel

Connectors and pin-outsH090 switch control panel

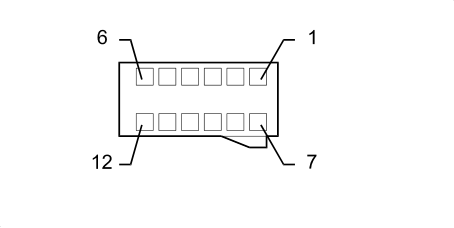

H090 SWITCH CONTROL PANEL

H090A – Dashboard

Wiring	Colour
See 20 DASHBOARD	BLU

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See C038 EARTH ON CENTRE TUNNEL
2		BL		See D020 DASHBOARD/REAR COUPLING	1
4		HB		See D020 DASHBOARD/REAR COUPLING	11
6		LB		See	4
7		ZC		See M001H BODY COMPUTER (DASHBOARD)	22
8		BG		See M001H BODY COMPUTER (DASHBOARD)	20
9		HM		See D001 FRONT/DASHBOARD COUPLING	8
11		BM		See D001 FRONT/DASHBOARD COUPLING	7

H090B – Dashboard

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LB		See	4
2		BG		See E050 INSTRUMENT PANEL	13
4		MH		See E050 INSTRUMENT PANEL	16
7		HV		See M001H BODY COMPUTER (DASHBOARD)	13
9		H		See M001H BODY COMPUTER (DASHBOARD)	17
10		VC		See M001G BODY COMPUTER (DASHBOARD)	35
11		NZ		See M001G BODY COMPUTER (DASHBOARD)	36
