H001 ignition switch

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Manual electric controls › H001 ignition switch

Connectors and pin-outsH001 ignition switch

H001 IGNITION SWITCH

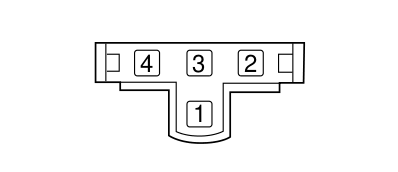

H001A – Front

1.4 16v TJet, 1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	C		See B001A JUNCTION UNIT (FRONT)	30
2	1.5	R		See B001A JUNCTION UNIT (FRONT)	31
3	1.5	M		See D004 FRONT/ENGINE COUPLING	6

1.4 16v

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	C		See B001A JUNCTION UNIT (FRONT)	30
2	1.5	R		See B001A JUNCTION UNIT (FRONT)	31
3	1.5	M		See B001A JUNCTION UNIT (FRONT)	15

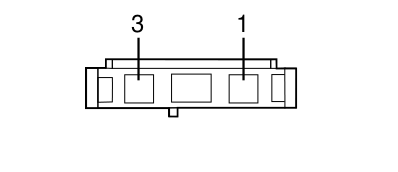

H001B – Dashboard

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	H		See	1
2	1.5	L		See	11
