Connectors and pin-outsH135 navigation controls

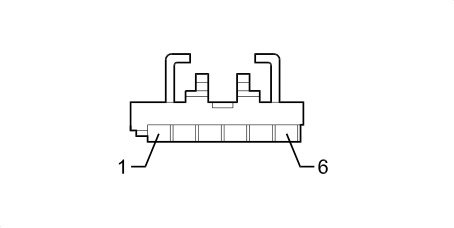

H135 NAVIGATION CONTROLS
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | BM | See D020 DASHBOARD/REAR COUPLING | 15 | ||
| 2 | NV | See D020 DASHBOARD/REAR COUPLING | 16 | ||
| 4 | BC | See D020 DASHBOARD/REAR COUPLING | 17 | ||
| 5 | N | See C020B PASSENGER SIDE DASHBOARD EARTH (REAR) | |||
| 6 | LB | See B002D JUNCTION UNIT UNDER DASHBOARD (REAR) | 21 | ||
