H060 sun roof switch
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Manual electric controls › H060 sun roof switch
Connectors and pin-outsH060 sun roof switch

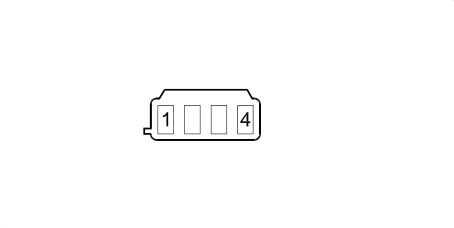

H060 SUN ROOF SWITCH
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | See C020B PASSENGER SIDE DASHBOARD EARTH (REAR) | |||
| 2 | GR | See N035 SUN ROOF MOTOR | 10 | ||
| 3 | GL | See N035 SUN ROOF MOTOR | 5 | ||
| 4 | LB | See B002D JUNCTION UNIT UNDER DASHBOARD (REAR) | 23 | ||
