D006 FRONT/REAR COUPLING

Wiring	Colour

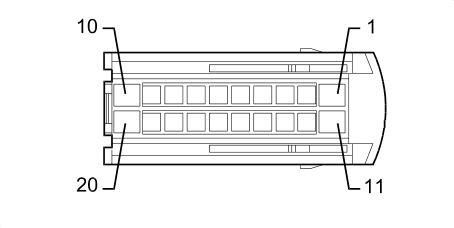

See 12 FRONT	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ	X	See F010 LEFT HEADLAMP	12
				See K001 HEADLAMP ALIGNMENT FRONT POTENTIOMETER	1
4		CB		See D013 FRONT/BUMPER COUPLING	5
5		BC		See D013 FRONT/BUMPER COUPLING	1
6		BG		See D013 FRONT/BUMPER COUPLING	2
7		BL		See D013 FRONT/BUMPER COUPLING	3
8		ZH		See D013 FRONT/BUMPER COUPLING	4
9		NZ		See D013 FRONT/BUMPER COUPLING	6
10		MN	X	See O050 LEFT WINDSCREEN WASHER DEFROSTING RESISTANCE	1
				See O051 RIGHT WINDSCREEN WASHER DEFROSTING RESISTANCE	1
11		LR	X	See F010 LEFT HEADLAMP	8
				See K001 HEADLAMP ALIGNMENT FRONT POTENTIOMETER	5
12		ZL		See F010 LEFT HEADLAMP	10
13		H		See M050 ABS CONTROL UNIT	8
14		HN		See M050 ABS CONTROL UNIT	19
15		VR		See M050 ABS CONTROL UNIT	6
16		VN		See M050 ABS CONTROL UNIT	17
17		NH	X	See P012 TYRE PRESSURE CONTROL UNIT ANTENNA	1
				See P012 TYRE PRESSURE CONTROL UNIT ANTENNA	1
18		VB		See P012 TYRE PRESSURE CONTROL UNIT ANTENNA	2
19		VC		See P012 TYRE PRESSURE CONTROL UNIT ANTENNA	2
20		CL	X	See P012 TYRE PRESSURE CONTROL UNIT ANTENNA	3
				See P012 TYRE PRESSURE CONTROL UNIT ANTENNA	3

Wiring	Colour

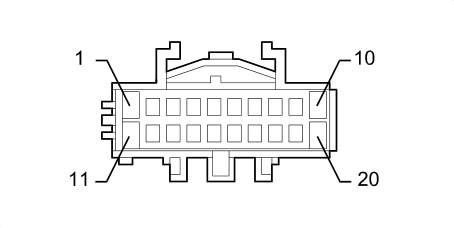

See 25 REAR	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		See D105 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER COUPLING	1
4		CB		See M084C PARKING SENSOR CONTROL UNIT (REAR)	1
5		BC		See M084C PARKING SENSOR CONTROL UNIT (REAR)	4
6		BG		See M084C PARKING SENSOR CONTROL UNIT (REAR)	5
7		BL		See M084C PARKING SENSOR CONTROL UNIT (REAR)	10
8		ZH		See M084C PARKING SENSOR CONTROL UNIT (REAR)	11
9		NZ		See M084C PARKING SENSOR CONTROL UNIT (REAR)	8
10		MN	X	See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	31
				See D031A PASSENGER FRONT DOOR COUPLING (FRONT PASSENGER DOOR)	15
				See D030A DRIVER'S FRONT DOOR COUPLING (DRIVER'S FRONT DOOR)	15
11		LR		See D105 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER COUPLING	3
12		ZL		See D105 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER COUPLING	2
13		H		See K076 RIGHT REAR WHEEL SENSOR FOR ABS.	2
14		HN		See K076 RIGHT REAR WHEEL SENSOR FOR ABS.	1
15		VR		See K075 LEFT REAR WHEEL SENSOR FOR ABS	2
16		VN		See K075 LEFT REAR WHEEL SENSOR FOR ABS	1
17		NH		See M047 TYRE INFLATION PRESSURE CONTROL UNIT	13
18		VB		See M047 TYRE INFLATION PRESSURE CONTROL UNIT	4
19		VC		See M047 TYRE INFLATION PRESSURE CONTROL UNIT	5
20		CL	X	See M047 TYRE INFLATION PRESSURE CONTROL UNIT	2
				See P012C TYRE PRESSURE CONTROL UNIT ANTENNA (REAR)	3
				See P012A TYRE PRESSURE CONTROL UNIT ANTENNA (REAR)	3
