D081 injector junction

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Intermediate couplings › D081 injector junction

Connectors and pin-outsD081 injector junction

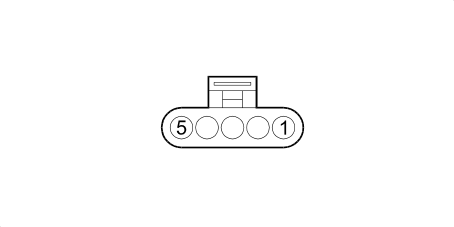

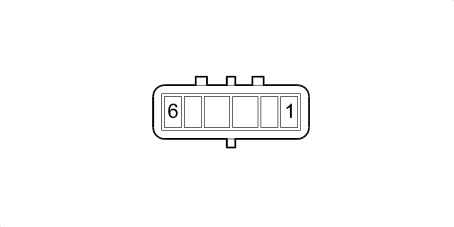

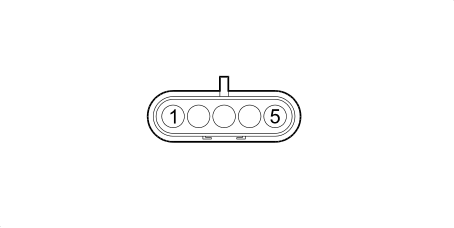

D081 INJECTOR JUNCTION

1.4 16v TJet

Wiring	Colour
See 55 COILS/ FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1				See N070D INJECTOR (COILS/ FUEL INJECTORS)	2
2				See N070C INJECTOR (COILS/ FUEL INJECTORS)	2
4				See N070A INJECTOR (COILS/ FUEL INJECTORS)	2
3				See N070B INJECTOR (COILS/ FUEL INJECTORS)	2
5			X	See N070A INJECTOR (COILS/ FUEL INJECTORS)	1
				See N070B INJECTOR (COILS/ FUEL INJECTORS)	1
				See N070C INJECTOR (COILS/ FUEL INJECTORS)	1
				See N070D INJECTOR (COILS/ FUEL INJECTORS)	1

1.4 16v

Wiring	Colour
See 55 COILS/ FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1				See N070D INJECTOR (COILS/ FUEL INJECTORS)	2
2				See N070C INJECTOR (COILS/ FUEL INJECTORS)	2
4				See N070A INJECTOR (COILS/ FUEL INJECTORS)	2
3				See N070B INJECTOR (COILS/ FUEL INJECTORS)	2
5			X	See N070A INJECTOR (COILS/ FUEL INJECTORS)	1
				See N070B INJECTOR (COILS/ FUEL INJECTORS)	1
				See N070C INJECTOR (COILS/ FUEL INJECTORS)	1
				See N070D INJECTOR (COILS/ FUEL INJECTORS)	1

1.4 16v TJet

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	19
2	1	MN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	2
3	1	BM		See M010B ENGINE MANAGEMENT ECU (ENGINE)	4
4	1	LN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	17
5	1.5	LR	X	See D004 FRONT/ENGINE COUPLING	1
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2

1.4 16v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	CN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	34
2	1	MN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	2
3	1	BZ		See M010B ENGINE MANAGEMENT ECU (ENGINE)	18
4	1	MR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	51
5	1.5	BR	X	See B001C JUNCTION UNIT (FRONT)	18
				See A030D IGNITION COIL (ENGINE)	3
				See A030B IGNITION COIL (ENGINE)	3
				See A030C IGNITION COIL (ENGINE)	3
				See A030A IGNITION COIL (ENGINE)	3
