Connectors and pin-outsA030 ignition coil

A030 IGNITION COIL

A030A – Engine

1.4 16v TJet

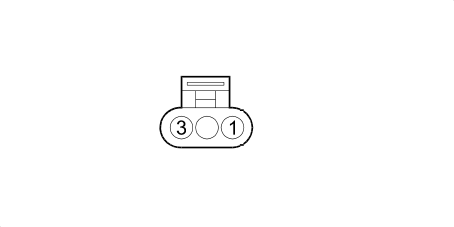

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NZ	X	See C040 ENGINE EARTH
				See A030B IGNITION COIL (ENGINE)	1
				See A030C IGNITION COIL (ENGINE)	1
				See A030D IGNITION COIL (ENGINE)	1
2	1	LR	X	See D004 FRONT/ENGINE COUPLING	1
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See D081 INJECTOR JUNCTION	5
3	1	RV		See M010B ENGINE MANAGEMENT ECU (ENGINE)	31

1.4 16v

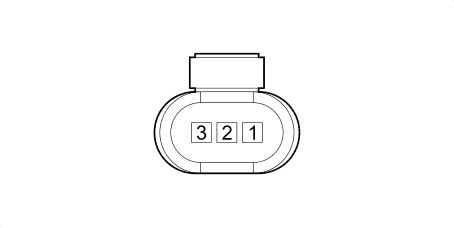

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BM		See M010B ENGINE MANAGEMENT ECU (ENGINE)	32
2	1	NZ	X	See C040 ENGINE EARTH
				See A030B IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
3	1	BR	X	See B001C JUNCTION UNIT (FRONT)	18
				See D081 INJECTOR JUNCTION	5
				See A030B IGNITION COIL (ENGINE)	3
				See A030C IGNITION COIL (ENGINE)	3
				See A030D IGNITION COIL (ENGINE)	3

A030B – Engine

1.4 16v TJet

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NZ	X	See C040 ENGINE EARTH
				See A030A IGNITION COIL (ENGINE)	1
				See A030C IGNITION COIL (ENGINE)	1
				See A030D IGNITION COIL (ENGINE)	1
2	1	LR	X	See D004 FRONT/ENGINE COUPLING	1
				See A030A IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See D081 INJECTOR JUNCTION	5
3	1	GR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	48

1.4 16v

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	16
2	1	NZ	X	C040A	1
				See A030D IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030A IGNITION COIL (ENGINE)	2
3	1	BR	X	See B001C JUNCTION UNIT (FRONT)	18
				See D081 INJECTOR JUNCTION	5
				See A030C IGNITION COIL (ENGINE)	3
				See A030D IGNITION COIL (ENGINE)	3
				See A030A IGNITION COIL (ENGINE)	3

A030C – Engine

1.4 16v TJet

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NZ	X	See C040 ENGINE EARTH
				See A030A IGNITION COIL (ENGINE)	1
				See A030B IGNITION COIL (ENGINE)	1
				See A030D IGNITION COIL (ENGINE)	1
2	1	LR	X	See D004 FRONT/ENGINE COUPLING	1
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See D081 INJECTOR JUNCTION	5
3	1	BL		See M010B ENGINE MANAGEMENT ECU (ENGINE)	46

1.4 16v

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	31
2	1	NZ	X	C040A	1
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
3	1	BR	X	See B001C JUNCTION UNIT (FRONT)	18
				See D081 INJECTOR JUNCTION	5
				See A030D IGNITION COIL (ENGINE)	3
				See A030B IGNITION COIL (ENGINE)	3
				See A030A IGNITION COIL (ENGINE)	3

A030D – Engine

1.4 16v TJet

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NZ	X	See C040 ENGINE EARTH
				See A030A IGNITION COIL (ENGINE)	1
				See A030B IGNITION COIL (ENGINE)	1
				See A030C IGNITION COIL (ENGINE)	1
2	1	LR	X	See D004 FRONT/ENGINE COUPLING	1
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See D081 INJECTOR JUNCTION	5
3	1	BM		See M010B ENGINE MANAGEMENT ECU (ENGINE)	47

1.4 16v

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GH		See M010B ENGINE MANAGEMENT ECU (ENGINE)	15
2	1	NZ	X	C040A	1
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030A IGNITION COIL (ENGINE)	2
3	1	BR	X	See B001C JUNCTION UNIT (FRONT)	18
				See D081 INJECTOR JUNCTION	5
				See A030B IGNITION COIL (ENGINE)	3
				See A030C IGNITION COIL (ENGINE)	3
				See A030A IGNITION COIL (ENGINE)	3
