A020 starter motor

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Starting - recharging › A020 starter motor

Connectors and pin-outsA020 starter motor

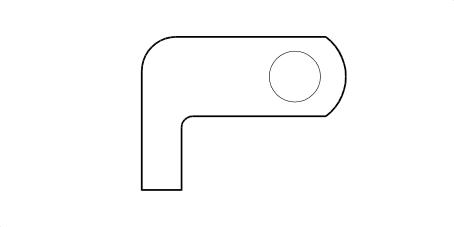

A020 STARTER MOTOR

A020A – Engine

1.4 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See B099E MAXI FUSE BOX ON BATTERY (ENGINE)

A020A – Battery positive

1.4 16v TJet

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	16	R		See B099E MAXI FUSE BOX ON BATTERY (ENGINE)	1

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	16	R		See B099E MAXI FUSE BOX ON BATTERY (ENGINE)	1

A020A – Recharging

1.4 16v, 1.4 16v TJet

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See B099E MAXI FUSE BOX ON BATTERY (ENGINE)

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		A001A
	10	R		See A010B ALTERNATOR (RECHARGING)

A020B – Engine

1.4 16v TJet

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1.5	MB		See D004 FRONT/ENGINE COUPLING	6

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1.5	M		See D004 FRONT/ENGINE COUPLING	6

1.4 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1.5	MB		See B001C JUNCTION UNIT (FRONT)	19
