A040 heater plugs
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Starting - recharging › A040 heater plugs
Connectors and pin-outsA040 heater plugs

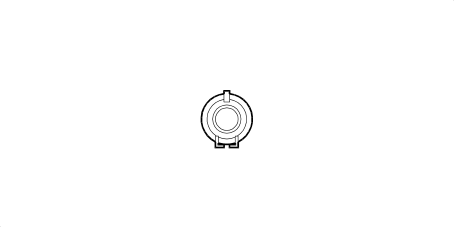

A040 HEATER PLUGS
A040A – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2.5 | V | See M015B PLUG PREHEATING CONTROL UNIT (ENGINE) | 1 | ||
A040B – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2.5 | G | See M015B PLUG PREHEATING CONTROL UNIT (ENGINE) | 2 | ||
A040C – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2.5 | R | See M015B PLUG PREHEATING CONTROL UNIT (ENGINE) | 3 | ||
A040D – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2.5 | L | See M015B PLUG PREHEATING CONTROL UNIT (ENGINE) | 4 | ||
