A010 alternator

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Starting - recharging › A010 alternator

Connectors and pin-outsA010 alternator

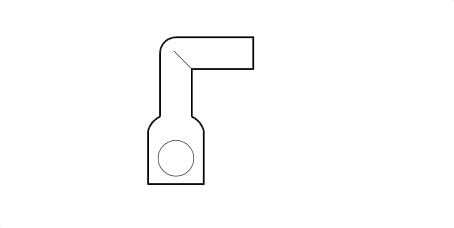

A010 ALTERNATOR

A010A – Engine

1.4 16v TJet

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
		HN		See D004 FRONT/ENGINE COUPLING	5

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HN		See D004 FRONT/ENGINE COUPLING	5

1.4 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HN		See D004 FRONT/ENGINE COUPLING	A06

A010B – Recharging

1.4 16v, 1.4 16v TJet

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	10	R		See A020A STARTER MOTOR (ENGINE)

1.9 JTD 8v, 1.9 JTD 16v

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A020A STARTER MOTOR (ENGINE)
